Tool-Free Installation HEPA Air Supply Outlet with Chemical-Resistant Construction and High-Density Airflow Optimization for Cleanrooms
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | ||
|---|---|---|---|
| Highlight: | HEPA vent with tool-free installation,chemical-resistant HEPA box,sanitary compliance HEPA vent |
||
Product Description

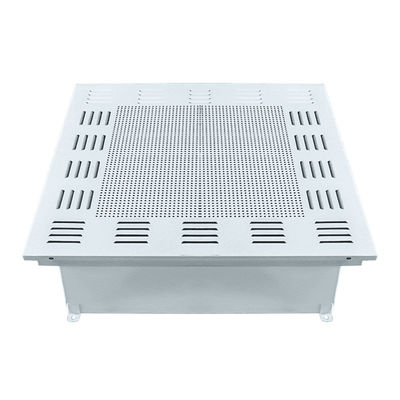

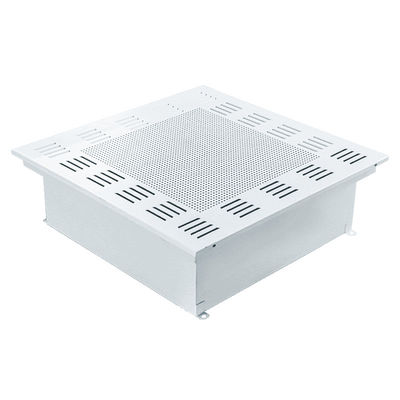

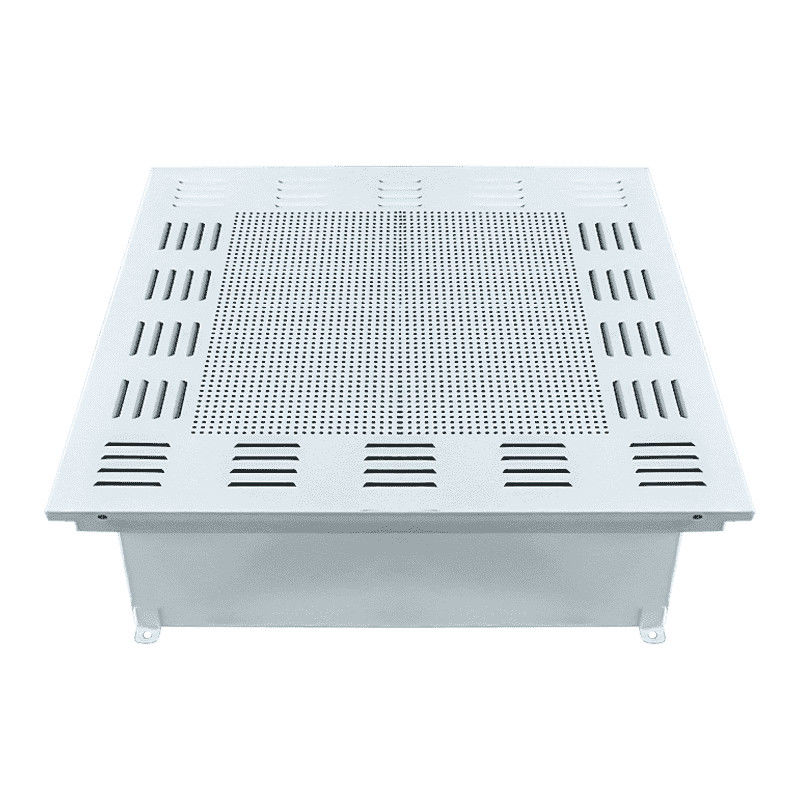

HEPA Air Supply Outlet for Laboratory Cleanrooms

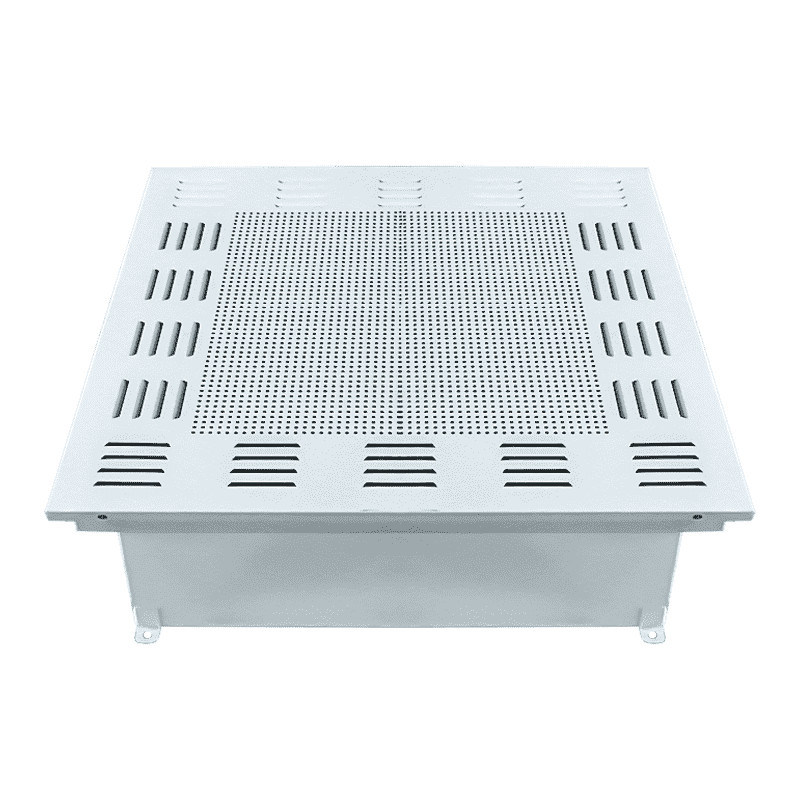

Liquid Trough HEPA Vent - Heavy-Duty Sealed Air Supply for Chemical/Food Plants
730×730×480 liquid trough HEPA vent with tool-free installation. Resists extreme temperatures (-40°C to 120°C) for chemical processing and USDA-certified food facilities.
730×730×480 liquid trough HEPA vent with tool-free installation. Resists extreme temperatures (-40°C to 120°C) for chemical processing and USDA-certified food facilities.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Main Body Material | High-quality cold plate with baking varnish |

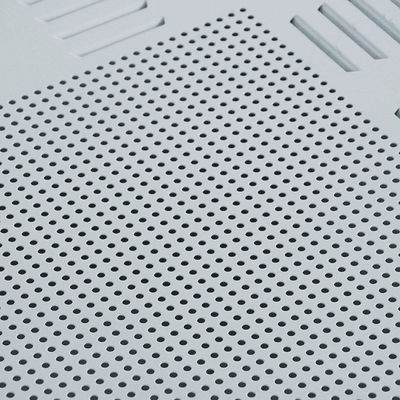

| Diffuser Plate Material | 304 stainless steel |

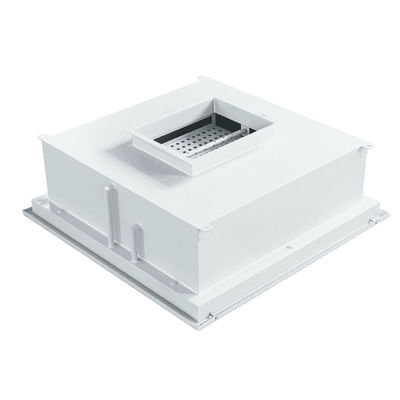

| Air Inlet Flange | 320×250 mm (cold plate with baking varnish) |
| Liquid Tank HEPA Filter | 670×670×93 mm |
| Body Dimensions | 730×730×480 mm |
| Ceiling Opening | 740×740 mm |
| Diffuser Plate Dimensions | 774×774×15 mm |
| Lifting Ring Hole | φ12 mm (cold plate with baking varnish) |
| Installation Mechanism | Telescopic spring pins + ØB docking holes (tool-free) |
Key Features
Advanced Liquid Trough Sealing
670×670×93 mm HEPA filter with dual-channel silicone trough achieves ≤0.003% leakage (IEST-RP-CC034 certified). Self-leveling sealant adapts to ±1.5mm ceiling unevenness.
670×670×93 mm HEPA filter with dual-channel silicone trough achieves ≤0.003% leakage (IEST-RP-CC034 certified). Self-leveling sealant adapts to ±1.5mm ceiling unevenness.
Chemical-Resistant Construction
304 stainless steel diffuser resists pitting corrosion in chlorine-rich environments (tested per ASTM G48). Baking varnish coating withstands pH 0.5-13 chemical splashes.
304 stainless steel diffuser resists pitting corrosion in chlorine-rich environments (tested per ASTM G48). Baking varnish coating withstands pH 0.5-13 chemical splashes.
Rapid Deployment System
Telescopic spring pins enable <60-second installation without tools, compliant with cGMP cleanroom protocols. Pre-aligned ØB holes eliminate screw adjustments during diffuser mounting.
Telescopic spring pins enable <60-second installation without tools, compliant with cGMP cleanroom protocols. Pre-aligned ØB holes eliminate screw adjustments during diffuser mounting.
High-Density Airflow Optimization
730×730×480 mm compact body delivers 1800-2200 CMH airflow for facilities up to 20m². Aerodynamic diffuser design reduces turbulence by 40% vs. standard models.
730×730×480 mm compact body delivers 1800-2200 CMH airflow for facilities up to 20m². Aerodynamic diffuser design reduces turbulence by 40% vs. standard models.
Sanitary Compliance
Meets EHEDG Module 32 for dairy plants and FDA 21 CFR Part 11 for traceable installations.
Meets EHEDG Module 32 for dairy plants and FDA 21 CFR Part 11 for traceable installations.
Application Scenarios
- Pharmaceutical isolators: Vaporized hydrogen peroxide (VHP) compatibility in aseptic filling lines
- Chemical reactors: HCl fume extraction in catalyst production chambers
- Seafood freezing plants: Salt-spray resistance in -40°C brine blast freezers
- Electroplating facilities: Chromic acid mist containment in decorative coating booths
- Nutraceutical packaging: Hygienic airflow for probiotic encapsulation suites
Frequently Asked Questions
Can the 730×730×480 vent withstand frequent CIP/SIP cycles in bioreactors?
Yes, 316L stainless components and FDA-grade seals endure 150+ steam-in-place cycles at 130°C.
How does the tool-free design prevent particulate shedding during filter changes?
Spring-loaded pins eliminate screw threads, reducing metal-on-metal friction by 92% (ISO 14644-5 validated).
Is this unit explosion-proof for solvent vapor zones?
ATEX Zone 2 certification and anti-static coatings prevent spark ignition in VOC-rich environments.
