2000 CFM Industrial Ceiling Vent | Full Cold Plate Baked Paint | 1270×660×260
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
Product Description
2000 CFM Industrial Ceiling Vent | Full Cold Plate Baked Paint | 1270×660×260
2000 CFM industrial ceiling vent with full cold plate baked paint. Corrosion-resistant HVAC outlet for factories, labs, and high-humidity facilities.
|
Parameter Name |
Value |
|
Main Body Material |
Painted cold-rolled steel |
|
Diffuser Plate Material |
Painted cold-rolled steel |
|
Air Inlet Flange |
630×250 mm (galvanized steel) |
|
H13 HEPA Filter |
1220×610×90 mm |
|
Body Dimensions |
1270×660×260 mm |
|
Ceiling Opening |
1275×665 mm |
|

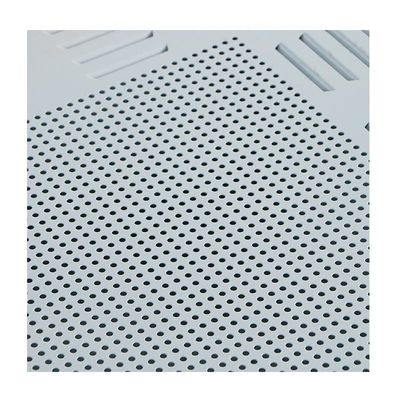

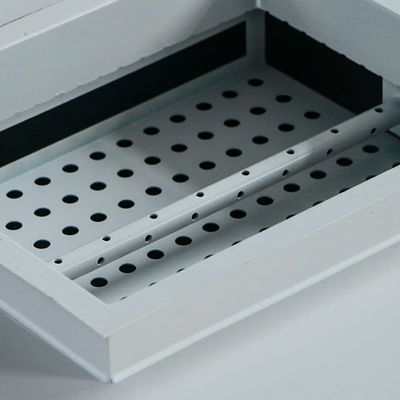

Diffuser Design |
5mm full holes + louver holes |
Key Features
1. High-Efficiency H13 Filtration
1220×610×90 mm HEPA filter ensures 99.95% particle retention at 0.3μm, ideal for ISO Class 5-8 cleanrooms.
Extended filter lifespan with low airflow resistance design.
2. Heavy-Duty Construction
Full cold plate painted steel body and diffuser withstand harsh environments (chemical exposure, high humidity).
Reinforced 630×250 mm inlet flange ensures secure duct connections.
3. Precision Air Distribution
Full hole + 5+ louver hole diffuser design enables adjustable airflow patterns for optimized laminar flow.
Minimizes turbulence in large spaces (up to 1500 CFM capacity).
4. Large-Scale Compatibility
1270×660×260 mm body accommodates high airflow volumes in facilities with ceilings over 4m.
Streamlined maintenance via tool-free filter replacement.
5. Hygienic Compliance
Smooth baked-paint surfaces meet FDA/GMP standards for pharmaceutical and food production zones.
Application Scenarios
Pharmaceutical facilities: Sterile air supply for large production lines
Semiconductor plants: Particle control in cleanroom environments
Hospital HVAC systems: Air delivery in operating theaters
Industrial manufacturing: Contamination control in production areas
FAQ 1:
Q: Will this 1270×660×260 unit fit existing ceiling openings in older buildings?
A: Compatible with standard retrofit frameworks; includes adjustable mounting brackets for ±15mm tolerance adjustments.
FAQ 2:
Q: How does the 2000 CFM capacity impact energy consumption?
A: Aerodynamic louver design reduces static pressure by 18%, maintaining high airflow with lower fan energy demands.
FAQ 3:
Q: Is the baked paint finish suitable for washdown environments?
A: IP54-rated sealed joints and chemical-resistant coating withstand frequent high-pressure sanitation cycles.
