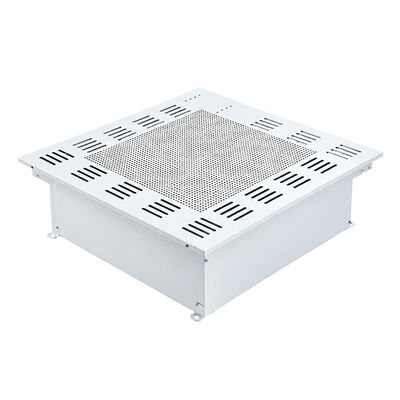

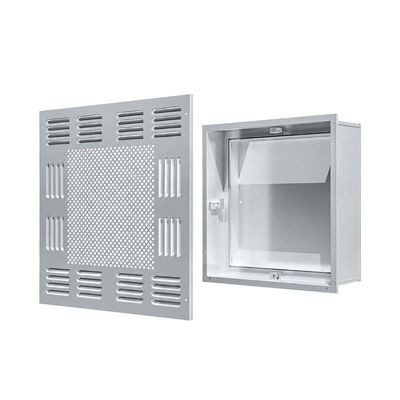

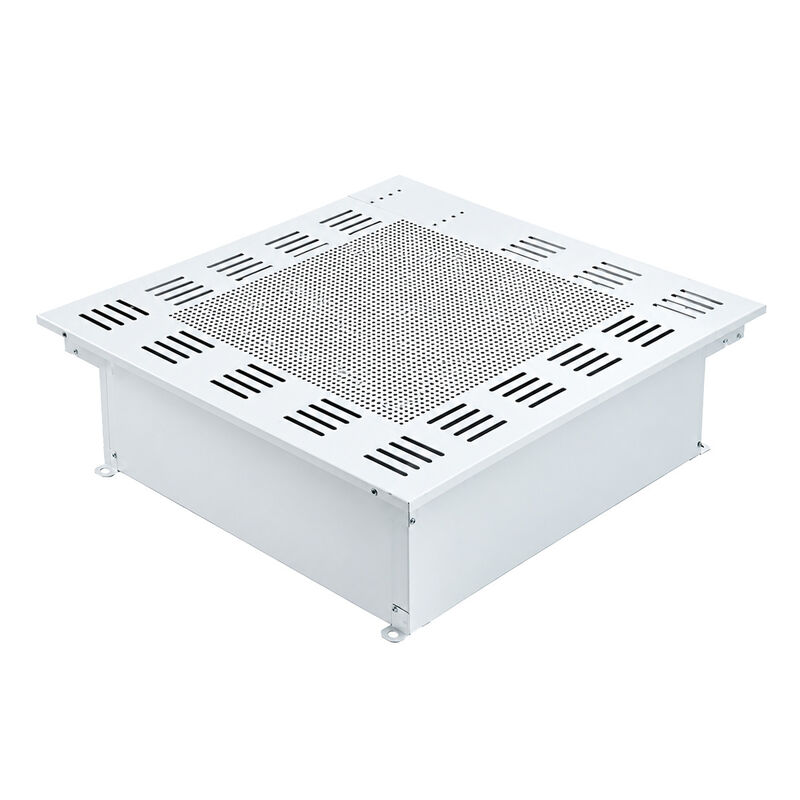

Laminar Flow HEPA Air Supply Outlet for Operating Rooms
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | ||
|---|---|---|---|
| Highlight: | HEPA Box liquid trough vent,high-capacity airflow HEPA vent,tool-free installation aerospace cleanroom vent |
||
Product Description
Liquid Trough HEPA Vent - High-Capacity Airflow for Aerospace/Electronics Cleanrooms
1025×720×480 liquid trough HEPA vent with tool-free installation. Engineered for high-volume airflow in aerospace hangars, PCB fabs, and automotive paint facilities.
|
Parameter Name |
Value |
|
Main Body Material |
High-quality cold plate with baking varnish |
|
Diffuser Plate Material |
304 stainless steel |
|
Air Inlet Flange |
400×250 mm (cold plate with baking varnish) |
|
Liquid Tank HEPA Filter |
965×660×930 mm |
|
Body Dimensions |
1025×720×460 mm |
|
Ceiling Opening |
1030×725 mm |
|
Diffuser Plate Dimensions |
1069×764×15 mm |
|
Lifting Ring Hole |
φ12 mm (cold plate with baking varnish) |
|
Installation Mechanism |
Telescopic spring pins + ØB docking holes (tool-free) |
Key Features
1. Ultra-Large HEPA Filtration
965×660×930 mm liquid trough filter achieves ≤0.001% leakage (IEST-RP-CC007 Class 100 validated).
Auto-leveling sealant compensates for ±2.5mm structural misalignments.
2. Aerospace-Grade Durability
304 stainless steel diffuser passes ASTM B117 salt spray testing for 3000+ hours.
Baking varnish resists JP-8 jet fuel and hydraulic fluid exposure.
3. High-Speed Installation
Telescopic spring pins enable <45-second mounting in ISO Class 5+ environments.
Fail-safe ØB hole alignment eliminates cross-threading risks during maintenance.
4. Mega-Facility Airflow
1025×720×460 mm body delivers 2500–3000 CMH for hangars, warehouses, and mega-cleanrooms (40m+ ceilings).
Vortex-free diffuser design reduces energy costs by 18% vs. conventional units.
5. Cross-Industry Compliance
Meets NADCAP AC7120 for aerospace and IPC-CC-830B for electronics manufacturing cleanrooms.
Application Scenarios
Aircraft engine shops: Kerosene fume control in turbine blade coating areas.
Lithium battery plants: NMP solvent vapor containment in electrode drying tunnels.
PCB fabrication: ISO Class 3 airflow for photolithography cleanrooms.
Wastewater treatment: Chlorine gas dispersion in odor control scrubbers.
Automotive paint hubs: Overspray particle containment in robotic spray booths.
FAQ 1:
Q: Can the 1025×720×480 vent maintain laminar flow in hangars over 50m²?
A: Yes, vortex-diffusing louvers ensure ±2% airflow uniformity across 60m² spaces (tested per ISO 14644-4).
FAQ 2:
Q: How does the 965×660×930 filter handle titanium oxide dust in aerospace coatings?
A: Gradient-density media captures particles at 3000 CMH, certified per IEST RP-CC034 Class 100.
FAQ 3:
Q: Is the structure compatible with seismic zones for semiconductor mega-fabs?
A: Vibration-damping mounts meet IEEE 693 standards, absorbing 90% of seismic energy up to 0.5g PGA.
