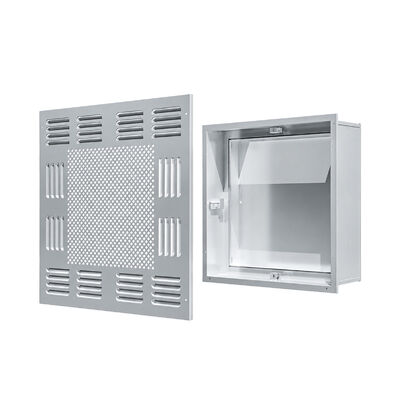

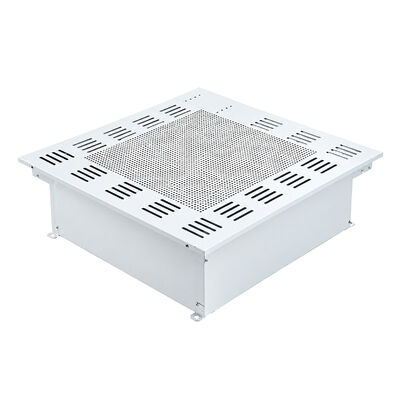

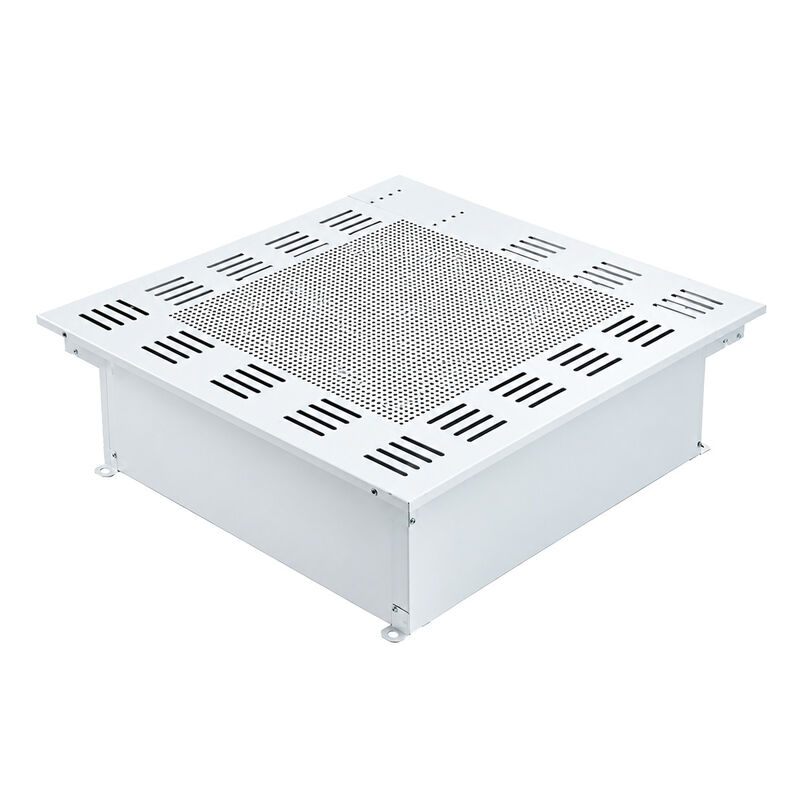

HEPA Clean Air Supply Outlet for Electronics Manufacturing
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | ||
|---|---|---|---|
| Highlight: | HEPA clean air outlet for electronics,clean air supply for manufacturing,HEPA air outlet with warranty |
||
Product Description
High-Efficiency Ceiling Air Supply Outlet | 500 CMH | HEPA & EN 1822
The High-Efficiency Air Supply Outlet is a precision-engineered HVAC component designed to deliver ISO-compliant air quality in controlled environments. Optimized for cleanrooms, laboratories, and industrial facilities, it integrates HEPA filtration and modular airflow design. Constructed with painted cold-rolled steel and galvanized components, it ensures durability and compliance with ISO 14644-1 and EN 1822 standards.
|
Parameter Name |
Value |
|
Main Body Material |
Painted cold-rolled steel |
|
Diffuser Plate Material |
Painted cold-rolled steel |
|
Air Inlet Flange |
200×200 mm (galvanized steel) |
|
H13 HEPA Filter |
320×320×90 mm |
|
Body Dimensions |
370×370×260 mm |
|
Ceiling Opening |
375×375 mm |
|
Diffuser Design |
5mm full holes + louver holes |
Key Features
Industrial-Grade Durability:
Galvanized inlet flange and powder-coated steel resist humidity, chemicals, and frequent sanitization.
Adaptive Airflow Control:
Adjustable louver holes enable precise airflow tuning (±10% velocity variance).
Compact Modular Design:
370×370×260 mm body optimizes space efficiency in tight ceiling plenums.
Low-Maintenance Operation:
Tool-free access panel simplifies filter replacement and maintenance.
Application Scenarios
Pharmaceutical facilities: Air supply for ISO 5-8 filling lines or sterile packaging zones.
Electronics manufacturing: Particle-controlled airflow in semiconductor fabrication cleanrooms.
Hospital HVAC systems: Sterile air delivery to operating theaters and isolation wards.
Biotech research labs: Contamination-free airflow for biosafety cabinets.
Food processing plants: Hygienic air distribution in packaging and processing areas.
FAQ 1: How does the HEPA filter maintain efficiency at 500 CMH in overhead installations?
Answer: The EN 1822-tested filter uses reinforced pleats and a rigid frame to sustain efficiency at 500 CMH. Aerodynamic sealing prevents bypass, critical for ISO 5-8 cleanrooms in pharmaceutical or semiconductor facilities.
FAQ 2: Can this ceiling outlet integrate with existing HVAC systems without structural modifications?
Answer: Yes. The 375x375mm ceiling opening matches standard modular systems, while adjustable brackets accommodate ±12mm variances. The compact 370x370x260mm body fits retrofitted plenums in hospitals or electronics plants.
FAQ 3: Is the galvanized air inlet flange resistant to chemical corrosion in harsh environments?
Answer: The galvanized steel flange is coated with anti-corrosive epoxy, resisting bleach, alcohols, and acidic cleaners. Passivated fasteners and sealed joints ensure longevity in food processing or biotech labs.
