biological industries of semiconductors,electronics,
flat panel displays and disk drives,
and other areas with strictly controlrequirementsfor air pollution.

|
Compact Easy To Clean Hepa Fan Filter Unit For Clean Room 0.3 Micron Porosity
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other |
|---|---|---|---|
| Weight (KG): | 26 | Showroom Location: | China |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 5 Years |
| Core Components: | Motor | Warranty: | 2 Years |
| Product Name: | Fan Filter Unit Hepa 110v Laminar | Size: | W1175*L575*H215mm Or Custom |
| Weight: | 26kg | Power (Output): | 150-190W±5W |
| Material: | Stainless Steel (201SS / 304SS) / Zinc Alloy Or Custom | Efficiency: | 99.995% (H13-U17) |
| Construction: | Panel Filter | Noise: | 52-58db±5db |
| HEPA Air Speed: | 0.45-0.75m/s Or Custom | Voltage: | AC/DC 220V/120V/110V, 50Hz Or Custom |
| Official Website: | Www.ffu-cleanroom.com | Certification: | ISO,CE,UL,RoHS |
| Highlight: | Compact Hepa Fan Filter Unit,Clean Room Hepa Fan Filter Unit |
||
Product Description
Compact Easy To Clean Optimal Air Quality Enhanced Product Lifespan Clean Room Hepa Fan Filter Unit For Clean Room
fan filter unit hepa 110v laminar
Specification
|
Product Name
|
fan filter unit hepa 110v laminar
|
|
Size
|
W1175*L575*H215mm or custom
|
|
Weight
|
26kg
|
|
Power (Output)
|
150-190W±5W
|
|
Material
|
Stainless steel (201SS / 304SS) / Zinc Alloy or custom
|
|
MOQ
|
1pc
|
|
Efficiency
|
99.995% (H13-U17)
|
|
Customizable
|
Yes
|
|
Warranty of core components
|
5 years (Enclosed motor)
|
|
Warranty
|
2 years
|
|
Construction
|
Panel Filter
|
|
Porosity
|
0.3micron
|
|
Brand Name
|
MRJH
|
|
Noise
|
52-58db±5db
|
|
HEPA Air Speed
|
0.45-0.75m/s or custom
|
|
Voltage
|
AC/DC 220V/120V/110V, 50Hz or custom
|
|
Applications
|
Clean Room, Dust-free Production Workshop, Pharmaceutical Company, Modernization Plants, Automated Manufacturing Factory,
Laboratory, Mycology, Hotels and etc. |
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| H13 Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity. |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan. |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity. |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability. |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks. |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration. |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency. |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments. |

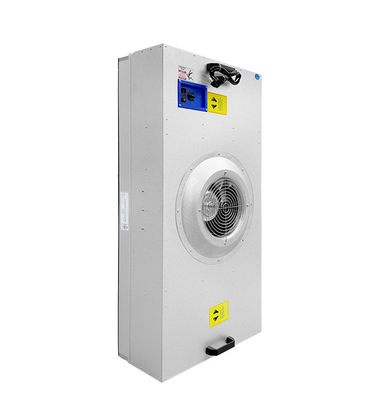

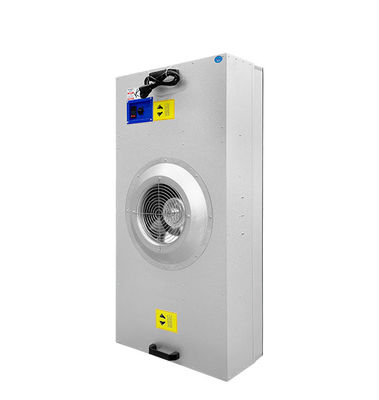

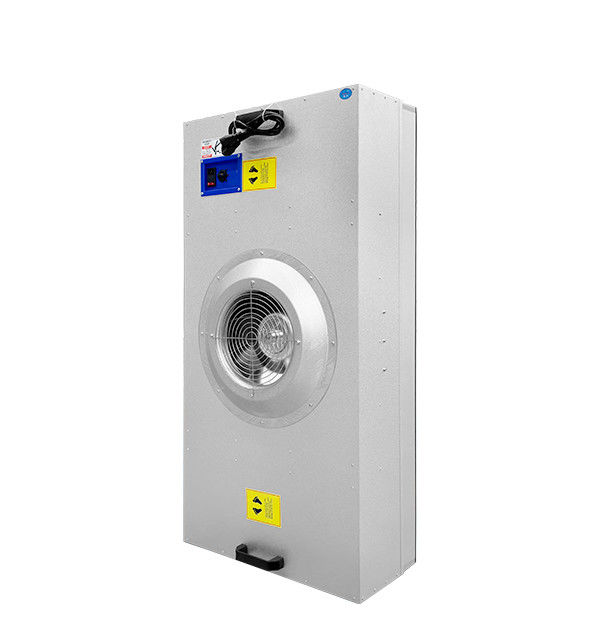

Products Show
fan filter unit is applicable for Class 10-100000 dust-free workshops,

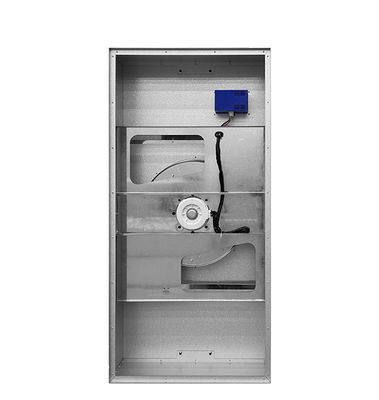

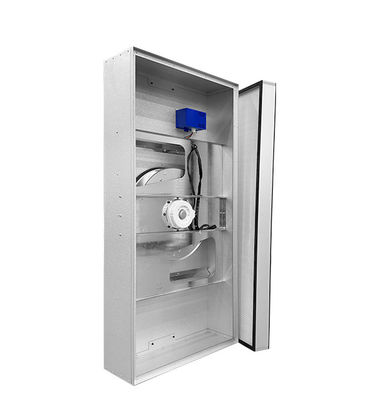

Product Details
Multiple impeller options
Al
Multiple impeller options
PP
Multiple impeller options
Fe
Existing
Customized
Fast Delivery
Get Your Own Product
Company Profile
Welcome to visit our factory
Shenzhen Meiri Purification Technology Co., Ltd,
With advanced air purification equipment production and processing and highly automated machine lines, our products and production technology have obtained dozens of national patents and international certifications such as CE, UL, ROHS, and REACH. So far, we have always been able to meet the production requirements of large-scale projects.
MULTIPLE AMADA TURRET
CNC PUNCH PRESSES
FFU PRODUCTION LINE
AMADA CNC
BENDING MACHINE
Low Noise
Anti-Static
Waterproof
Low Temperature
Leakage Resistance
High quality liquid tank sealing filter
More efficient in isolating contaminated air
high quality sealant, and in the process of replacing the filter sealant will not stick to the knife edge around the box

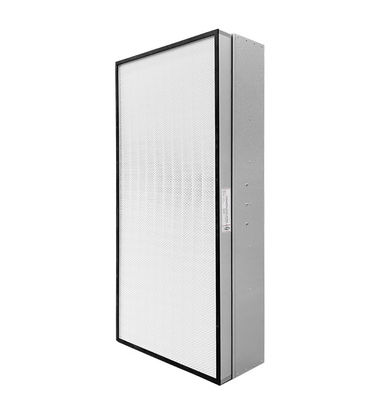

High efficiency filtration
Safeguard air quality
--Appearance Testing
--Functional Test And Visual Inspection
--Electrical Safety Tests
--Air Velocity Testing
--Noise Testing
--Functional Test And Visual Inspection
--Electrical Safety Tests
--Air Velocity Testing
--Noise Testing
1300*1300 HIGHT EFFICIENCY
FILTER PRODUCTION LINE
2000 WATT LASER
INTRGRAED LASER CUTTING
AND TUBE CUTTING MACHINE
AND TUBE CUTTING MACHINE
FRENCH KIMO NOISE METER
FFU MOTOR TESTING EQUIPMENT
KIMO ANEMOMETER
GMW MULTI-FUNCTION TESTER
METOTE DUST PARTICLE DETECTOR
TSI AIR VOLUME COVER
Transportation
Event hot product
Certificate can be verified, welcome to the factory field visit.
Our products and production technology have obtained
dozens of national patents and international certification such as CE, UL, RoHS, REACH.
Certificate can be verified, welcome to the factory field visit.
FAQ
Q: What’s your sample and production lead time ?
A: The lead time for sample takes around 3-7days, mass production lead time is about 2-3 weeks.
Q: How do you ship the goods ?
A: It depends on customer’s demands . If with the full containers , we’d suggest to ship by vessel . If with small order volumes & urgent orders, we’ll suggest to ship by air freight or international couriers .
Q:Where is your company located
A: Our company & factory are located in Shenzhen , China ( No. 79, Langbei Viallage Industry Road ,Tongde Commity , Baolong Stree , Longgang District, Shezhen City , Guangdong Province , China)
Q:Can you arrange a visit to your factory?
A:Yes,of course.
Q:Can you provide customized products as our requirements?
A:Yes,of course.
Q:Do you test all your products before delivery?
A:Yes,of course.We will do 100% test and provide test report before delivery.
Q:How long is your items delivery time?
A:It is normal 10~30 days.Usually it depends on order size,quantity and configuration,etc.
Q:What payment term can you accept?What price term can you accept?
A:We can accept T/T,L/C,etc.We can accept EXW,FOB,CFR,CIF,DDU,etc.
Q:What after-sale service can you provide?
A:We can provide 24 hours' technical support online by e-mail,phone,video,etc.
Q:How many countries have you exported to? How do you make long-term relationship and cooperation?
A:We have exported to over 30 countries in Asia,Middle East,Africa,Europe,North America,South America,etc.We will offer good quality,service and price to ensure our customer satisfaction.We will consider our customer as our friend to help them to solve
problems.
Q: How do you ship the goods ?
A: It depends on customer’s demands . If with the full containers , we’d suggest to ship by vessel . If with small order volumes & urgent orders, we’ll suggest to ship by air freight or international couriers .
Q:Where is your company located
A: Our company & factory are located in Shenzhen , China ( No. 79, Langbei Viallage Industry Road ,Tongde Commity , Baolong Stree , Longgang District, Shezhen City , Guangdong Province , China)
Q:Can you arrange a visit to your factory?
A:Yes,of course.
Q:Can you provide customized products as our requirements?
A:Yes,of course.
Q:Do you test all your products before delivery?
A:Yes,of course.We will do 100% test and provide test report before delivery.
Q:How long is your items delivery time?
A:It is normal 10~30 days.Usually it depends on order size,quantity and configuration,etc.
Q:What payment term can you accept?What price term can you accept?
A:We can accept T/T,L/C,etc.We can accept EXW,FOB,CFR,CIF,DDU,etc.
Q:What after-sale service can you provide?
A:We can provide 24 hours' technical support online by e-mail,phone,video,etc.
Q:How many countries have you exported to? How do you make long-term relationship and cooperation?
A:We have exported to over 30 countries in Asia,Middle East,Africa,Europe,North America,South America,etc.We will offer good quality,service and price to ensure our customer satisfaction.We will consider our customer as our friend to help them to solve
problems.
Want to Know more details about this product
