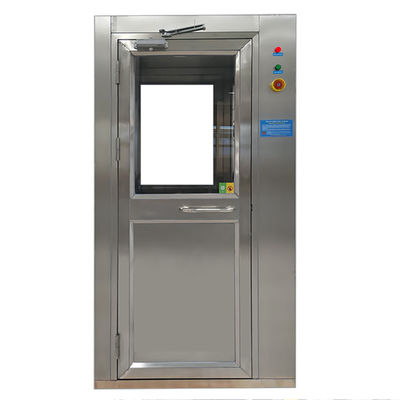

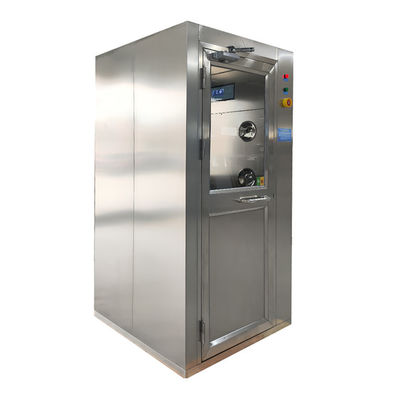

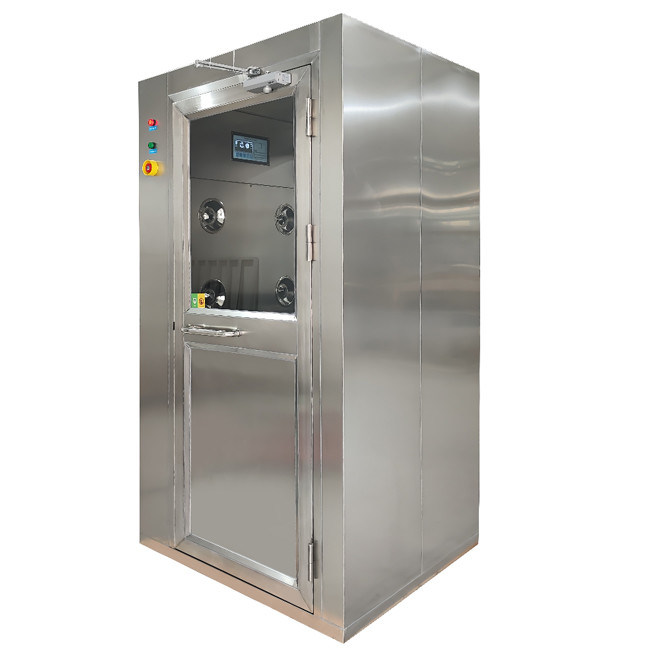

Stainless Steel 201 Air Shower Room with HEPA Filter and Interlock System for Cleanroom Environments
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
| Model Number: | MRJH-RFLS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | wooden box size : 1180*1100*2250mm |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Emergency Stop Button: | Yes | Air Shower Nozzles: | 6 |
|---|---|---|---|
| Filter: | HEPA Filter | Installation: | Floor Mounted |
| Air Velocity: | 13~25m/s | Voltage: | 380v 220v |
| Interlock System: | Yes | Certification: | ISO,CE,UL,RoHS |
| Highlight: | SS 201 Air Shower Room,Air Shower Room 380V |
||
Product Description
SS 201 Air Shower Room Single Sided Blowers 380V 220V With Swing Door
Stainless Steel 201 Single Air Shower Room for Clean Environments
An air shower room is a specialized enclosure designed to remove contaminants from individuals entering or exiting cleanrooms or controlled environments. It serves as an essential transition zone, creating a barrier between the outside environment and the controlled space. By utilizing powerful air jets, the air shower room removes particles, dust, and other contaminants from the surface of a person's body or clothing before they enter the clean area.
Technical Specifications
| Item | Definition | Specs |
|---|---|---|
| System Parameters | Size | Outer: 1080W x 1000D x 2100H mm Inner: 790W x 860D x 1930H mm |
| Weight | 297kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 1.5kW | |
| Main Body | Material | Full Stainless Steel 201 |
| Type | Single Blowing | |
| Door | Single Door | |
| Nozzle | 6 |
Key Advantages
- Particle Removal: Air shower rooms employ high-velocity, filtered air jets to dislodge and remove particles from the person's body or clothing, reducing contaminants entering clean areas.
- Enhanced Cleanliness: Effectively removes particles and contaminants to maintain desired cleanliness levels in cleanrooms, laboratories, and manufacturing facilities.
- Personnel Protection: Provides a protective barrier by preventing transfer of particles and contaminants into controlled environments, minimizing product contamination risks.
- Versatility: Customizable to suit different requirements including size, number of air jets, air velocity, and control systems for single or multiple-person entry.
- Safety Features: Includes motion sensors, interlocking doors, and emergency stop buttons to ensure safe usage and prevent cross-contamination.
- Durable Construction: Made from 201 stainless steel and square steel tube with rust-proof, corrosion-proof design and reliable structure.
Equipment Functions & Applications
- Air shower rooms are essential in pharmaceutical industry, biotechnology, electronics, semiconductor manufacturing, research laboratories, and cleanroom facilities.
- Maintains integrity and cleanliness of controlled environments by reducing contamination introduction from personnel.
- Provides efficient particle removal system contributing to overall cleanliness, safety, and quality of controlled environments.
