High-Efficiency Side Air Supply Outlet | 500 CMH | H13 HEPA 99.95% & Diffuser Optimized
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
Product Description
High-Efficiency Side Air Supply Outlet | 500 CMH | H13 HEPA 99.95% & Diffuser Optimized

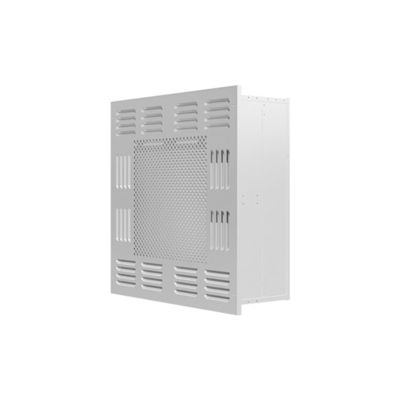

The High-Efficiency Air Supply Outlet is a critical component for maintaining ISO-certified air quality in cleanroom environments, designed for seamless integration into HVAC systems. Engineered for pharmaceutical facilities, hospitals, and electronics manufacturing plants, it features H13-grade filtration and precision airflow distribution. Constructed with painted cold-rolled steel and optimized diffuser design, it ensures uniform particle-free airflow compliance with ISO 14644-1 and GMP standards.
|
Parameter Name |
Value |
|
Main Body Material |
Painted cold-rolled steel |
|
Diffuser Plate Material |
Painted cold-rolled steel |
|
Air Inlet Size |
200×200 mm |
|
H13 HEPA Filter |
320×320×90 mm |
|
Body Dimensions |
370×370×460 mm |
|
Ceiling Opening |
375×375 mm |
|
Diffuser Plate Dimensions |
Full hole 5 + louver holes |
Key Features
H13 High-Efficiency Filtration:
Captures 99.95% of particles ≥0.3μm, validated per EN 1822 standards.
Durable Construction:
Painted cold-rolled steel resists humidity and chemical exposure in industrial environments.
Optimized Air Distribution:

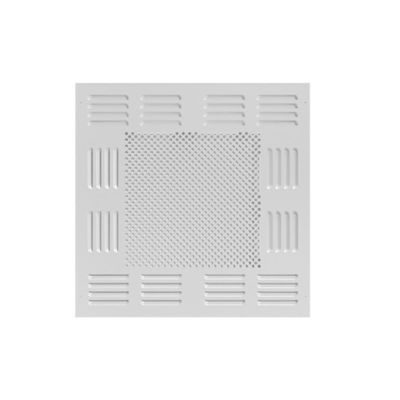

Hybrid diffuser (5mm full holes + adjustable louvers) ensures uniform airflow velocity (±15% variance).
Easy Maintenance:

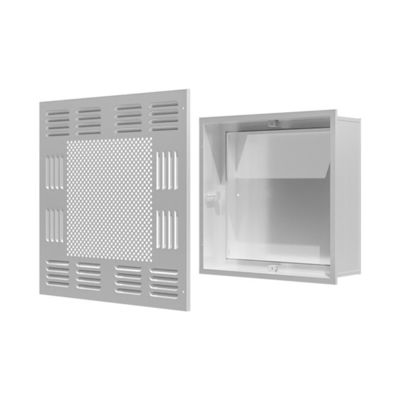

Tool-free filter replacement via front-access panel.
Seamless Integration:
Pre-engineered dimensions (370×370×460 mm) align with modular cleanroom ceilings.
Application Scenarios
Pharmaceutical cleanrooms: ISO 5-8 compliant air supply for filling lines or packaging zones.
Hospital surgical suites: Sterile airflow for operating theaters.
Electronics manufacturing: Particle control in semiconductor wafer fabrication.
Biotechnology labs: Contamination-free air delivery for cell culture hoods.
Food processing: Hygienic airflow in packaging areas.
FAQ 1: How does the H13 HEPA filter maintain 99.95% efficiency in high-airflow (500 CMH) environments?
Answer: The H13 filter is EN 1822-tested to retain 99.95% of 0.3μm particles at 500 CMH. Reinforced pleats and a rigid frame prevent bypass, ensuring compliance in ISO 5-8 cleanrooms during continuous operation.
FAQ 2: Can this outlet fit non-standard ceiling openings in older facilities?
Answer: Yes. The 375x375mm opening aligns with most modular systems, while adjustable brackets accommodate ±10mm variances. The 370x370mm body ensures seamless integration in pharmaceutical plants or hospital HVAC upgrades.
FAQ 3: Is the painted cold-rolled steel durable in humid or corrosive environments?
Answer: The electrostatic epoxy-coated steel resists humidity, chemicals, and frequent sanitization (e.g., bleach sprays). Passivated fasteners and sealed joints extend lifespan in food processing or semiconductor facilities.
