584×584×480 Liquid Trough HEPA Vent - Zero-Leakage Cleanroom Air Supply for Semiconductor/Biotech
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
Product Description

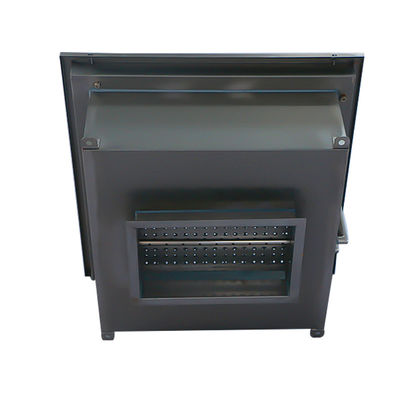

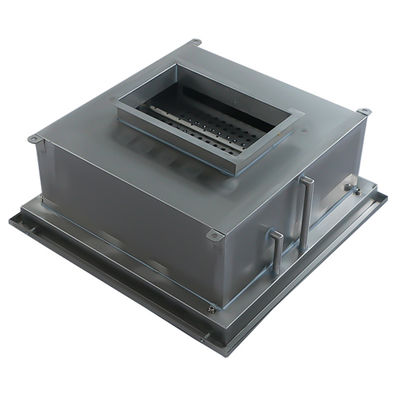

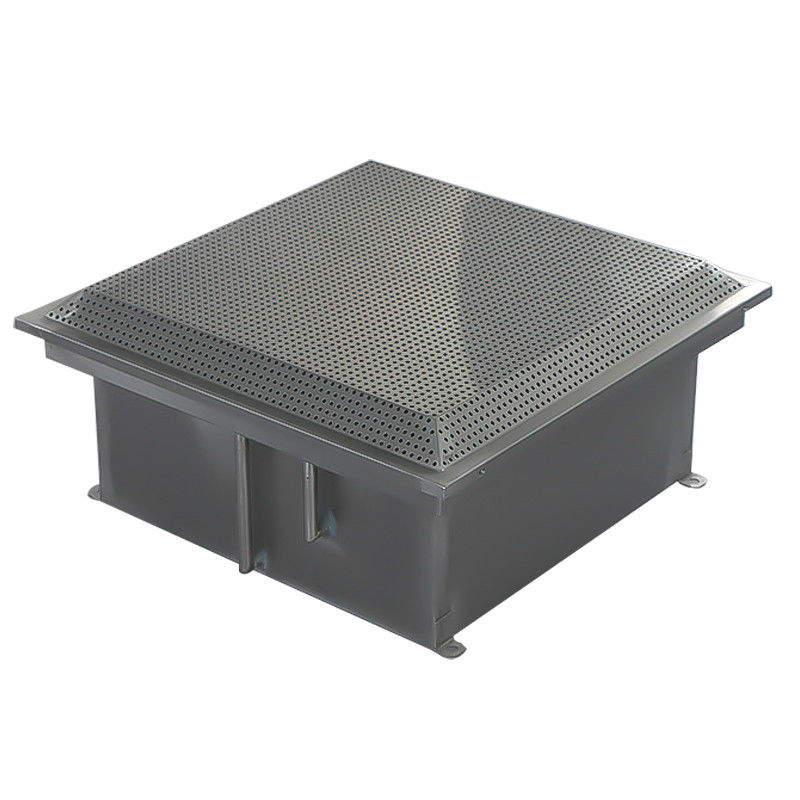

584×584×480 Liquid Trough HEPA Vent - Zero-Leakage Cleanroom Air Supply for Semiconductor/Biotech
IP55-rated 584×584×480 liquid trough HEPA vent. Leakproof design for ISO Class 3 cleanrooms in semiconductor fabs, BSL-3 labs, and sterile compounding.
|
Parameter Name |
Value |
|
Main Body Material |
High-quality cold plate with baking varnish |
|
Diffuser Plate Material |
304 stainless steel |
|
Air Inlet Flange |
320×200 mm (cold plate with baking varnish) |
|
Liquid Tank HEPA Filter |
524×524×93 mm |
|
Body Dimensions |
584×584×480 mm |
|
Ceiling Opening |
594×594 mm |
|
Diffuser Plate Dimensions |
628×628×15 mm |
|
Lifting Ring Hole |
φ12 mm (cold plate with baking varnish) |
Key Features
Industrial-Grade Liquid Tank Sealing
524×524×93 mm HEPA filter with silicone gel gaskets achieves 0.005% bypass (IEST-RP-CC007 validated).
Sanitization-Ready Build

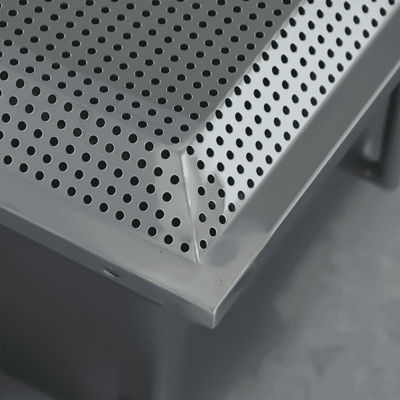

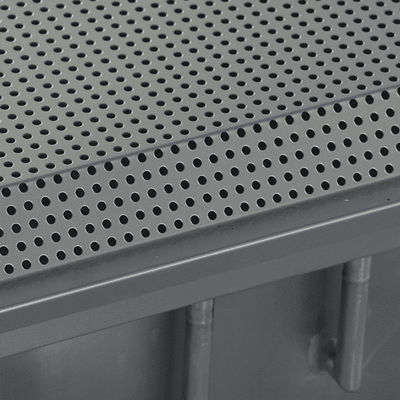

304 stainless steel diffuser withstands 10,000ppm chlorine fogging (ASTM B117) and pH 1–14 chemical exposure.
Rapid Tool-Free Assembly
Telescopic spring pins + self-aligning ØB holes enable <90-second installation without screws, critical for ISO 5 cleanroom protocols.
High-Capacity Airflow Design
584×584×480 mm body supports 1200–1500 CMH airflow for facilities up to 15m ceiling height.
Hygienic Compliance
Baking varnish surface meets USP <800> for hazardous drug handling and 3-A Sanitary Standards for dairy plants.
Application Scenarios
Vaccine mega-plants: Sterile air supply in lyophilization suites with -80°C freeze-dryers.
Chemical processing: Acid fume control in titanium dioxide production chambers.
Seafood processing: Saltwater corrosion resistance in shrimp freezing tunnels.
Semiconductor gas cabinets: Toxic gas dispersion in SiC wafer epitaxy rooms.
Bioreactor farms: Contamination-free airflow for mammalian cell culture expansion.
FAQ 1:
Q: Does the 584×584×480 model maintain airtightness in 24/7 humidity-controlled environments?
A: Yes, the dual-channel silicone sealant withstands 95% RH fluctuations without degradation (tested per ASTM E741).
FAQ 2:
Q: How does the trough system handle daily hydrogen peroxide vapor decontamination?
A: Chemically inert fluoropolymer seals resist VHP exposure up to 1000ppm, validated in GMP-grade bio-decon cycles.
FAQ 3:
Q: Can this vent integrate with existing FFU systems in semiconductor cleanrooms?
A: Pre-installed T-slot rails enable seamless retrofitting to Class 1-100 cleanroom grids within 15 minutes.
