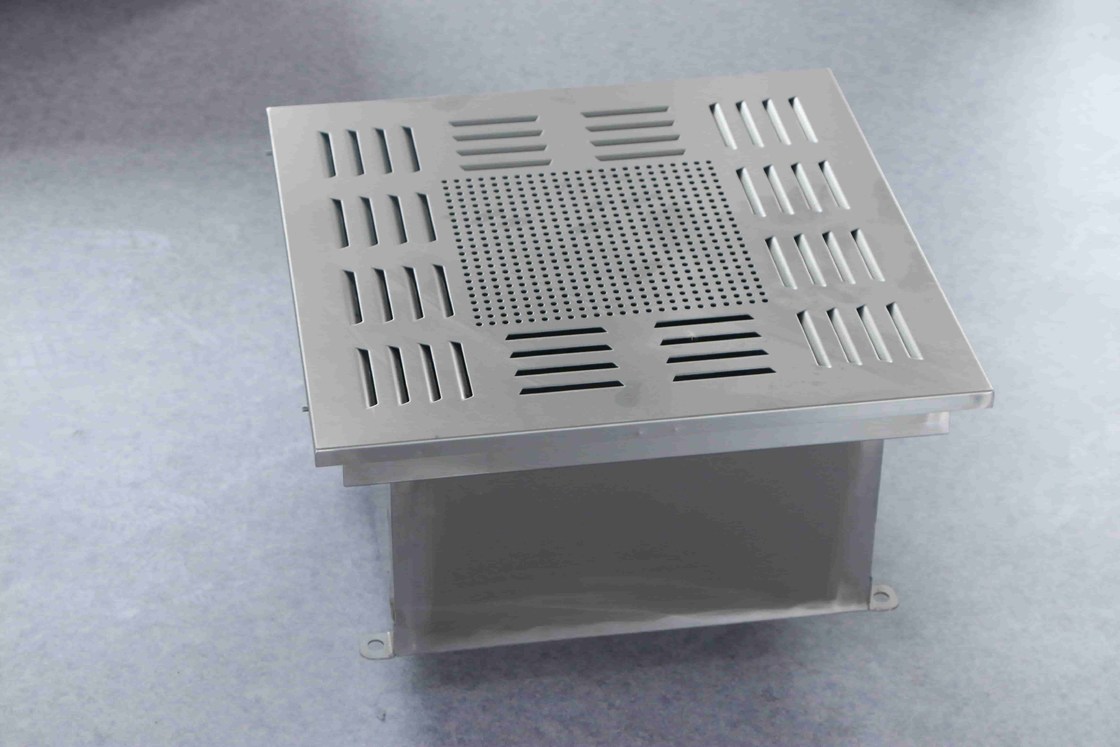

450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | ||
|---|---|---|---|
Product Description
Liquid Trough HEPA Air Outlet 450×450×480 - Sealed Cleanroom Ventilation for Pharma/Labs
450×450×480 liquid trough HEPA outlet with IP54 sealing. Zero-leakage design for ISO Class 3-5 cleanrooms in pharmaceutical facilities and modular labs.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Main Body Material | High-quality cold plate with baking varnish |
| Diffuser Plate Material | 304 stainless steel |
| Air Inlet Flange | 200×200 mm (cold plate with baking varnish) |
| Liquid Tank HEPA Filter | 390×390×93 mm |
| Body Dimensions | 450×450×480 mm |
| Ceiling Opening | 460×460 mm |
| Diffuser Plate Dimensions | 494×494×15 mm |
| Lifting Ring Hole | φ12 mm (cold plate with baking varnish) |
Key Features
- Liquid Tank Sealing Technology Gel-sealed HEPA filter ensures zero air bypass (tested per IEST-RP-CC007).
- Corrosion-Resistant Construction 304 stainless steel diffuser plate withstands chlorine-based sanitizers and 95% RH environments.
- Tool-Free Installation Telescopic spring pins and self-aligning ØB holes enable screwless assembly (<2 minutes).
- Compact Modular Design 450×450×480 mm body fits tight ceiling spaces while supporting 500-800 CMH airflow.
- Industrial Hygiene Compliance Non-porous baked varnish surfaces meet EHEDG guidelines for food-grade facilities.
Application Scenarios
- Pharmaceutical isolators: Aseptic airflow for vial filling in Grade A/B cleanrooms
- Dairy processing plants: Hygienic ventilation in high-moisture cheese aging rooms
- Electroplating facilities: Acid fume-resistant airflow for electrocoat chambers
- Hospital compounding suites: USP <797>-compliant sterile powder handling
- Semiconductor wet benches: Corrosion control in chemical mechanical planarization (CMP) areas

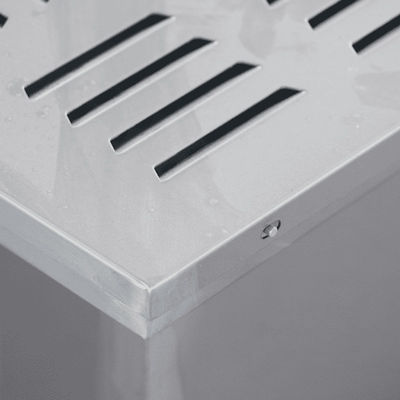

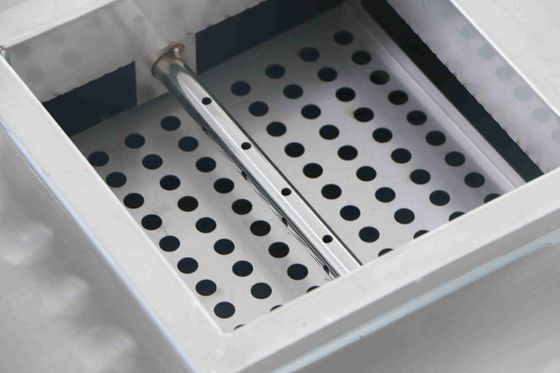

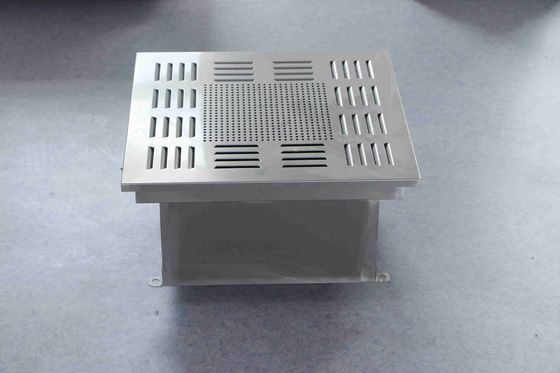

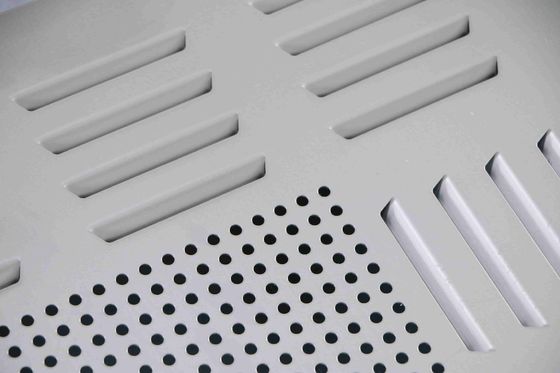

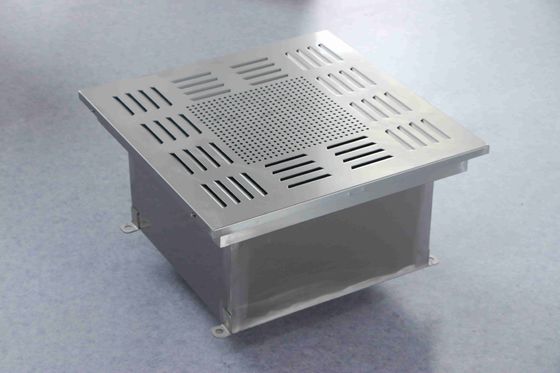

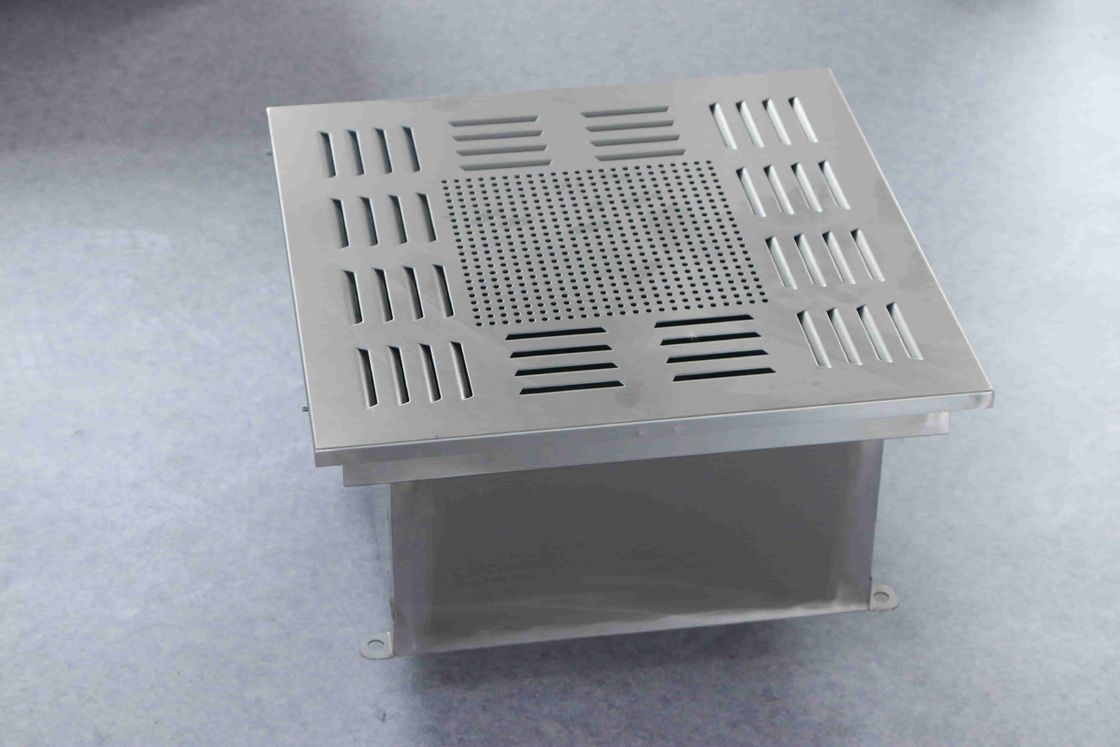

Product Gallery
Frequently Asked Questions
Does the 450×450×480 size fit retrofitted ceiling grids in older facilities?
Yes, modular frame adapters allow ±10mm adjustment for legacy plenum structures without structural modifications.
How does the liquid trough design prevent air leakage compared to gasket systems?
Viscous silicone sealant fills micron-level gaps, achieving 0.001% leakage (tested per ISO 14644-3 Annex B4).
What maintenance is required for the trough sealing mechanism?
Annual sealant replenishment via cartridge system (5-minute procedure) sustains 10-year airtight performance.
