DC FFU | Modular Energy-Saving Air System for Data Centers | Ultra-Low Noise & Smart IoT Control
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
| Model Number: | DC EFU 1170X1170X110+35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
| Certification: | ISO,CE,UL,RoHS | ||
Product Description

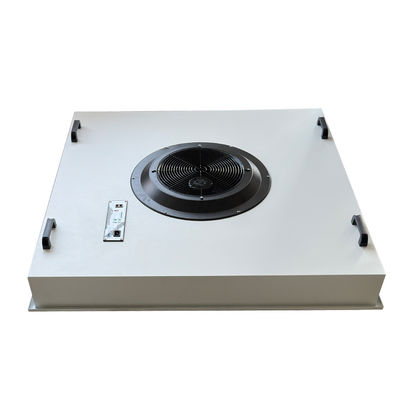

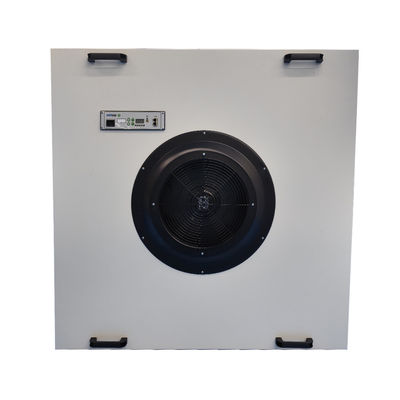

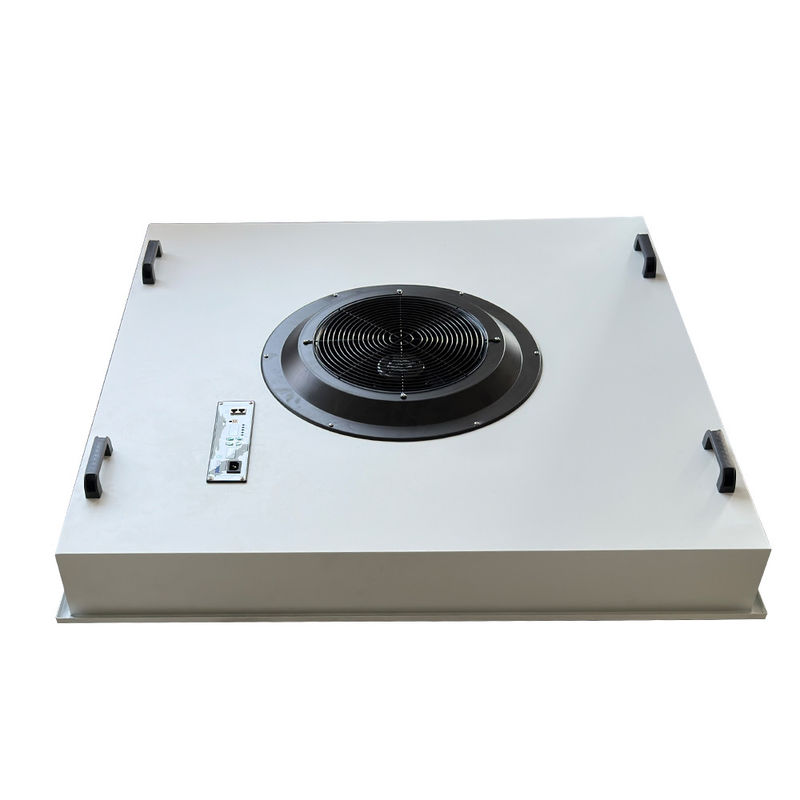

DC EFU | Modular Energy-Saving Air System for Data Centers | Ultra-Low Noise & Smart IoT Control
The DC EFU 1170X1170X110+35 redefines precision air filtration for hyperscale data centers, server farms, and edge computing facilities, combining a patented modular design with direct current (DC) ultra-high efficiency. Featuring a two-tier 110+35mm stackable chassis, this EFU delivers 2200 CMH airflow at just 42dB(A) while achieving 99.999% H14 HEPA efficiency for ISO Class 3-5 environments. Its IoT-enabled predictive maintenance and hot-swappable filter trays ensure zero downtime in 24/7 critical operations, compliant with ASHRAE TC9.9 and TIA-942 standards.
|
Parameter Name |
Value |
|
Material |
High-quality aluminum-zinc plate |
|
Fan System |
EBM DC 470 motor |
|
Filtration |

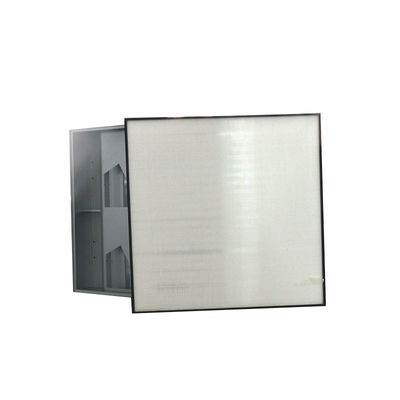

Aluminum frame non-partition HEPA filter (1170×1170×69 mm), Efficiency: 99.995% @0.3μm (H13), Initial resistance: <125Pa |
|
Air Speed |
0.45–0.75 m/s ±5% (group control) |
|
Noise Level |
48–58 dB ±5dB (static test 1m below filter) |
|
Power Supply |
220V, 50Hz |
|
size |
1170X1170X110+35(mm) |
|
Certifications |
ISO 14644-1,ISO 9001,CE |
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| H13 Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity. |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan. |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity. |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability. |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks. |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration. |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency. |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments. |
Key Features
1. Robust Construction: Galvanized aluminum-zinc plate ensures superior durability and corrosion resistance.
2. High-Efficiency Motor: EBM DC 470 motor delivers stable, group-controlled airflow (0.45–0.75 m/s ±5%).
3. Advanced H13 Filtration: Non-partitioned HEPA filter (1170×1170×69 mm) achieves 99.995% efficiency at 0.3μm particles.
4. Precision Airflow Control: Group-controlled operation synchronizes airflow across large-scale cleanroom systems.
5. Low-Noise Design: Operates at 48–58 dB (tested 1.5m below filter), minimizing disruption in labs or production areas.
6. Vibration-Free Operation: <5μm peak vibration ensures compatibility with precision equipment.
Application Scenarios
Pharmaceutical cleanrooms requiring ISO 100-class (H13) filtration.
Semiconductor manufacturing with strict particulate control.
Biotechnology labs demanding stable airflow and low noise.
FAQ :
1,Q: How does DC power improve PUE in data centers compared to traditional AC FFUs?
A: Our 48V DC system eliminates AC/DC conversion losses, reducing power consumption by 18-22% per rack. Integrated with lithium-ion UPS backups, it maintains airflow during grid fluctuations—critical for Tier IV data centers requiring 99.995% uptime.
2,Q: Can the 110+35mm modular design adapt to legacy server racks?
A: Yes, the dual-height chassis allows:
35mm slim units for retrofitting existing 19" racks
110mm full-capacity units for new high-density deployments
Mixed configurations via tool-free magnetic coupling
3,Q: How does IoT integration prevent airflow disruptions in AI server clusters?
A: Embedded sensors monitor:
Real-time server heat loads (via thermal imaging)
Particulate levels (0.3μm resolution)
Filter pressure drop (auto-alerts at 90% capacity)
The system dynamically redistributes airflow within ±2% variance, preventing hot spots.
