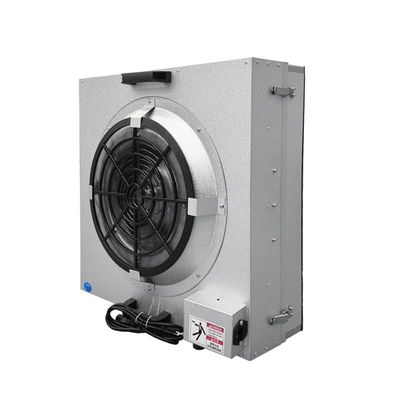

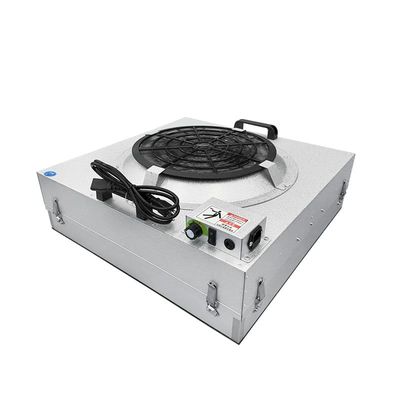

BFU Bottom-Access FFU Fan Filter Unit with Compact 620x620x350mm Design for Vibration-Free Cleanroom Air Purification
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,CE,GMP,FDA,UL,ATEX,RoHS |
| Model Number: | BFU bottom detachable FFU 620X620X350 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | Certification: | ISO,CE,UL,RoHS |
|---|---|---|---|
Product Description
The BFU Bottom-Access FFU 620X620X350 revolutionizes cleanroom maintenance with its ground-breaking bottom-access panel design, specifically engineered for high-frequency filter replacement environments like hospital operating rooms, microelectronics assembly lines, and ISO Class 4-6 clean zones. Its 620x620x350mm compact footprint integrates seamlessly into space-constrained ceilings while delivering 360 m³/h airflow with ultra-low turbulence.
| Material | Box: Galvanized aluminum plate; Diffuser: Baked-paint cold plate |
| Fan System | MRJH® motor + metal impeller |
| Air Speed | 0.45-0.75 m/s ±3% (three-speed adjustable) |
| Noise Level | 46-55 dB ±5 dB (static test 1.5m below filter) |
| Power Supply | 220V/50Hz, Rated Power: 150W-190W ±5W |
| Vibration | ≤5μm peak |
| Flange Connection | Optional D=25mm |
| Opening Size | Color steel plate: 625×625 mm |
| Size | 1175X1175X215(mm) |
| Certifications | ISO 14644-1, ISO 9001, CE |
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments |
- Durable Construction: Galvanized aluminum box with baked-paint diffuser ensures corrosion resistance and longevity
- Efficient Fan System: MRJH® motor paired with a metal impeller delivers stable airflow and ultra-low noise
- Precision Airflow Control: Three-speed adjustable wind speed (0.45-0.75 m/s ±3%) for flexible cleanroom requirements
- Filtration: Non-partition HEPA filter achieves superior performance

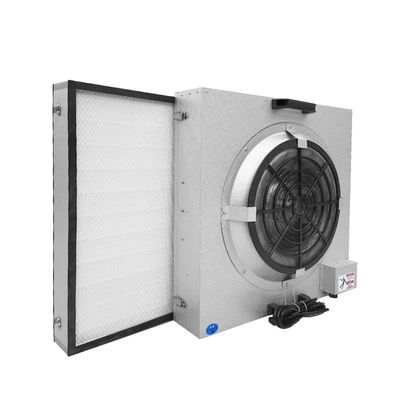

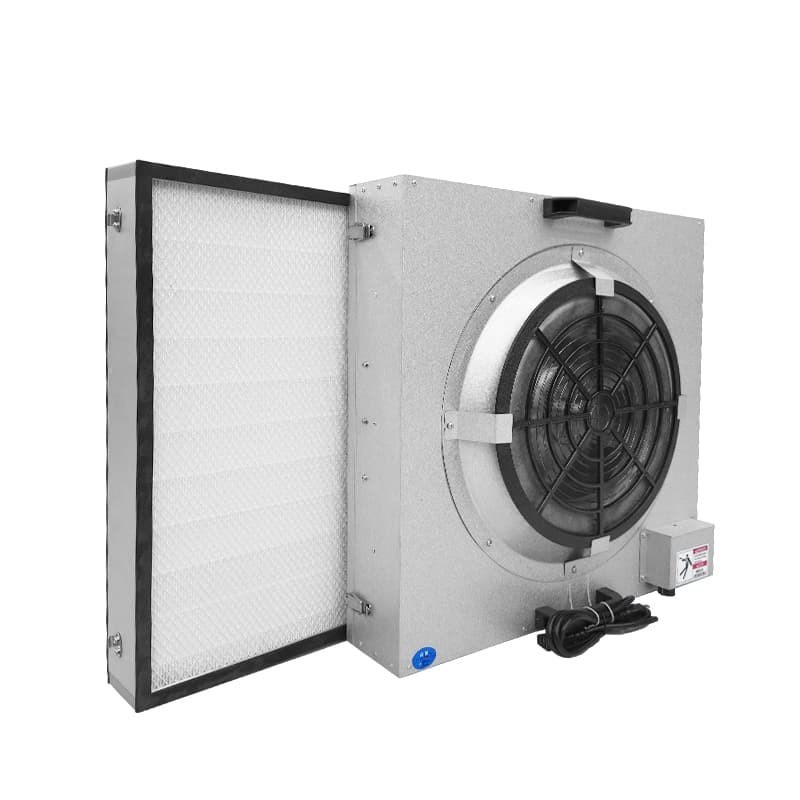

- Bottom-Detachable Design: Simplifies maintenance and filter replacement
- Optional Connectivity: Supports flange connections (D=25mm) and group control modules for system integration
- Low Noise: Engineered for 46-55 dB (±5 dB) operation at 1.5m below the filter
Cleanroom air purification in pharmaceutical, electronics, and biotechnology facilities.
Manufacturing zones requiring ISO-certified filtration with precise airflow control.
Facilities needing modular installation (flange compatibility) and easy maintenance.
The tool-free, bottom-loading mechanism allows single-person filter replacement without dismantling the unit or disrupting laminar airflow - critical for maintaining ISO Class 5 conditions during surgeries or microelectronics production.
Featuring a brushless DC motor with G2.5 dynamic balance and vibration levels, it eliminates interference with sensitive equipment (e.g., electron microscopes or lithography tools) while operating at <50dB.
Yes, it supports:
- Drop-in installation for standard 2'x2' T-bar ceilings
- Flange-less sealing to prevent particle leakage
- Optional 1200x600mm adapters for ISO 14644-1 recertification
