AC FFU High-Efficiency Fan Filter Unit | Cleanroom Grade Air Purification System | Ultra-Quiet & Energy-Saving Design
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
| Model Number: | AC FFU 575X575X215 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
| Certification: | ISO,CE,UL,RoHS | ||
Product Description

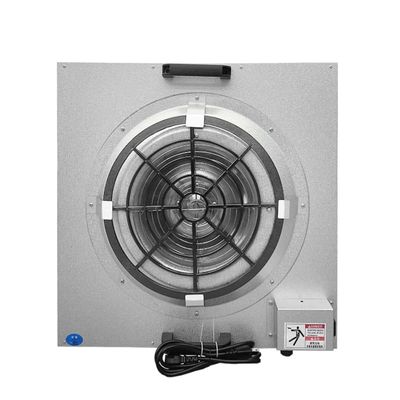

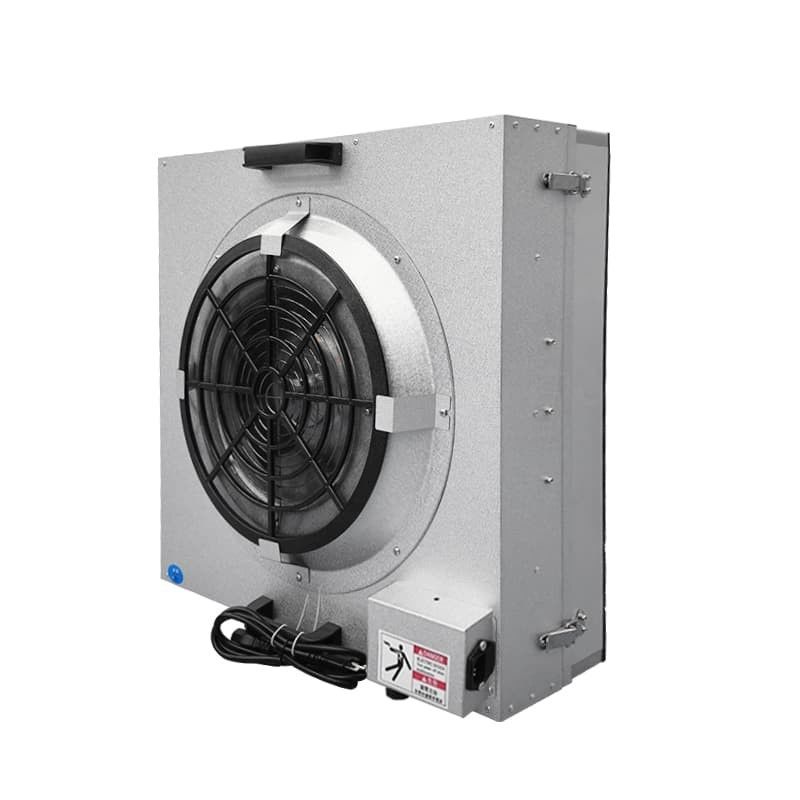

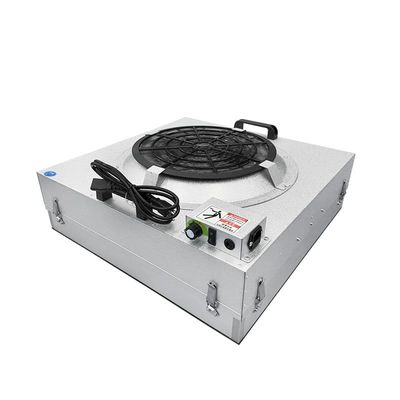

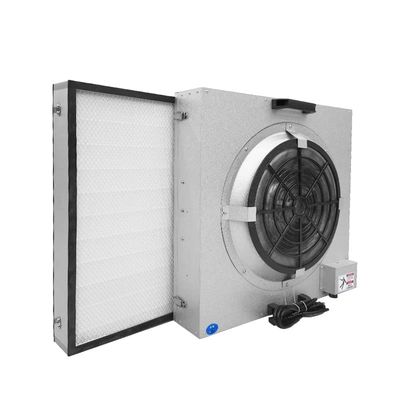

AC FFU High-Efficiency Fan Filter Unit | Cleanroom Grade Air Purification System | Ultra-Quiet & Energy-Saving Design
The FFU (Fan Filter Unit) is a high-performance air purification system designed for cleanroom environments requiring ISO 14644-1 compliance. Engineered for industrial and laboratory applications, it features a lightweight aluminum-zinc coated casing, a 400-series aluminum alloy centrifugal impeller, and a no-divider HEPA filter for superior particle control. With adjustable airflow, low noise operation, and energy-efficient design, it ensures contamination-free air circulation in critical environments.
|
Parameter Name |
Value |
|
Material |
Aluminum-zinc coated plate |
|
Impeller System |
400 Aluminum Alloy + Centrifugal Fan |
|
Filtration |

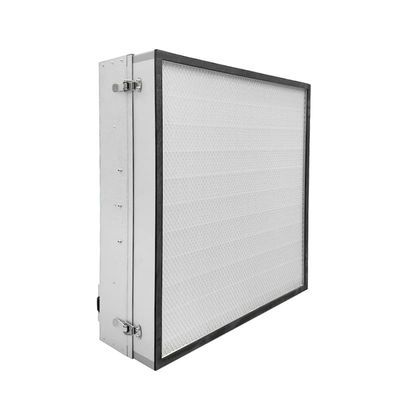

Aluminum frame HEPA filter (570×570×69), Efficiency: 99.995% @0.3μm (H13) |
|
Air Speed |
0.45–0.75 m/s ±5% (adjustable) |
|
Noise Level |
48–58 dB ±5 dB (static test 1.5m below HEPA) |
|
Power Supply |
220V/50Hz, Rated Power: 150W–190W ±5W |
|
Vibration |
≤5μm peak |
|
size |
575X575X215(mm) |
|
Certifications |
ISO 14644-1,ISO 9001,CE |
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| H13 Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity. |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan. |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity. |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability. |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks. |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration. |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency. |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments. |
Key Features
1. Robust Construction: Lightweight aluminum-zinc coated casing for durability and corrosion resistance.
2. High-Efficiency Filtration: H13 HEPA filter (99.995% @0.3μm) with no-divider design for optimized airflow.
3. Adjustable Airflow: Centrifugal fan delivers 0.45–0.75 m/s speed (±5%) for flexible cleanroom requirements.
4. Low Noise Operation: Engineered for 48–58 dB noise levels (±5 dB) to minimize workplace disruption.
5. Energy-Saving Design: 150W–190W power consumption with stable 220V/50Hz operation.
6. Precision Control: Compliant vibration limits (≤5μm) ensure stable performance in sensitive environments.
Application Scenarios
Cleanroom air circulation in pharmaceutical, electronics, and biotechnology facilities.
Supplemental filtration for ISO-certified manufacturing environments.
Laboratories requiring H13-grade particulate control with adjustable airflow.
FAQ :
1,Q: What industries are the AC FFU High-Efficiency Fan Filter Units designed for?
A: The AC FFU 575X575X215 is specifically engineered for cleanroom-grade environments, including pharmaceuticals, semiconductor manufacturing, biotechnology labs, and precision electronics facilities. Its HEPA/ULPA filtration (99.99% efficiency at 0.3μm) and ultra-low noise design (<50 dB) meet ISO 14644 standards for controlled contamination zones.
2,Q: How does the energy-saving design reduce operational costs?
A: Featuring a high-efficiency EC motor and variable speed control, this FFU consumes up to 30% less energy compared to traditional units. The adaptive airflow adjustment ensures optimal performance while minimizing power waste, supported by real-time monitoring via optional IoT integration.
3,Q: Is the AC FFU compatible with existing cleanroom ventilation systems?
A: Yes, the 575x575x215mm standardized dimensions allow seamless integration into modular cleanroom ceilings (e.g., T-grid systems). Customizable airflow rates (0.3–0.5 m/s) and optional ducted/unducted configurations ensure flexibility for both new installations and retrofits.
