AC FFU 1175X575X250 High-Capacity Fan Filter Unit | Medical & Biotech Cleanroom HEPA System | Modular Energy-Efficient Design
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
| Model Number: | AC FFU 1175X575X250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
| Certification: | ISO,CE,UL,RoHS | ||
Product Description
AC FFU 1175X575X250 High-Capacity Fan Filter Unit | Medical & Biotech Cleanroom HEPA System | Modular Energy-Efficient Design

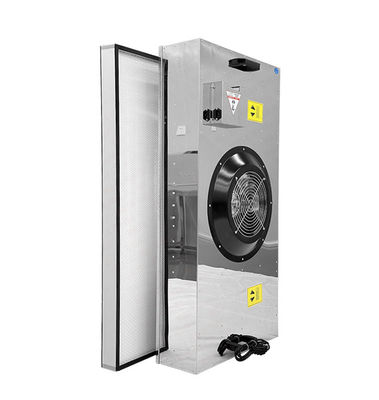

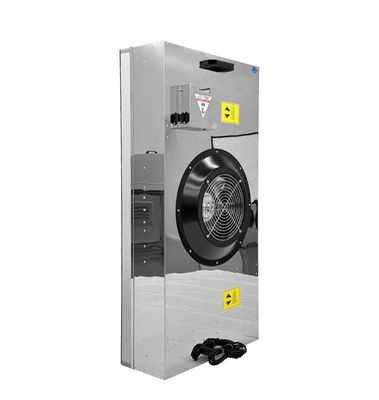

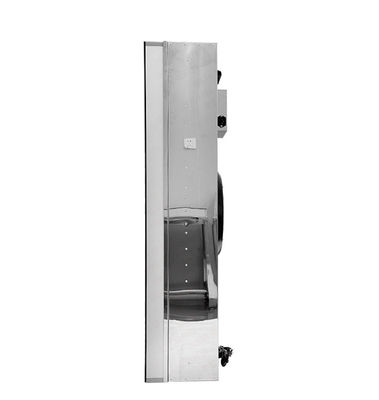

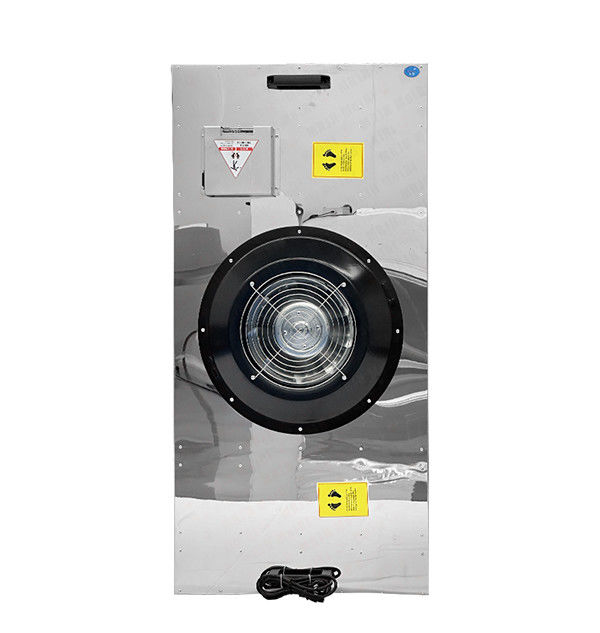

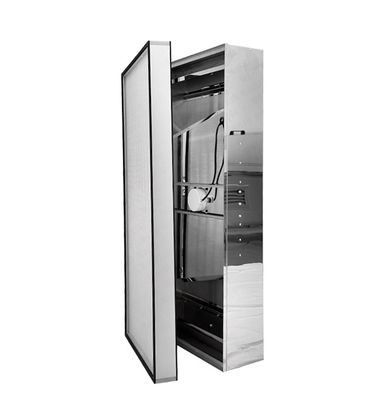

The FFU (Fan Filter Unit) is a high-performance air purification system engineered for ISO 14644-1 compliant cleanroom environments. Designed for industrial and laboratory use, it features a high-quality galvanized aluminum plate casing, an MRJH® large air volume low-noise motor with 400ABS impeller (30,000 hours of trouble-free operation), and a non-partitioned HEPA filter for exceptional particulate control. With three-speed adjustable airflow, precision filtration, and energy-efficient operation, it ensures optimal air quality in critical applications.
|
Parameter Name |
Value |
|
Material |
High-quality galvanized aluminum plate |
|
Impeller System |
MRJH® motor + 400ABS impeller (30,000-hour reliability) |
|
Filtration |
Aluminum frame HEPA filter (1170×570×69), Efficiency: 99.995% @0.3μm (H13), Initial resistance: ≤125Pa |
|
Air Speed |
0.45–0.75 m/s ±5% (three-speed adjustable) |
|
Air Volume |
1200 m³/h |
|
Noise Level |
48–58 dB ±5 dB (static test 1.5m below filter) |
|
Power Supply |
220V/50Hz, Rated Power: 150W–190W ±5W |
|
Vibration |
≤5μm peak |
|
size |
1175X575X250 (mm) |
|
Certifications |
ISO 14644-1,ISO 9001,CE |
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| H13 Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity. |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan. |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity. |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability. |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks. |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration. |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency. |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments. |
Key Features
1. Premium Construction: Galvanized aluminum plate ensures superior durability and corrosion resistance.
2. High-Performance Fan System: MRJH® motor with 400ABS impeller delivers large air volume (1200 m³/h) and ultra-low noise, backed by 30,000-hour reliability.
3. Three-Speed Airflow Control: Adjustable wind speed (0.45–0.75 m/s ±5%) for versatile cleanroom requirements.
4. H13 Filtration: Non-partitioned HEPA filter achieves 99.995% efficiency at 0.3μm particles with low initial resistance (≤125Pa).
5. Energy Efficiency: Optimized 150W–190W power consumption with stable 220V/50Hz operation.
6. Stable Performance: Vibration limited to ≤5μm for precision-sensitive environments.
Application Scenarios
Cleanroom air purification in pharmaceutical, electronics, and biotech facilities.
Supplemental filtration for ISO-certified manufacturing zones.
Laboratories requiring H13-grade filtration with customizable airflow settings.
FAQ :
1,Q: Why is the AC FFU 1175X575X250 specifically recommended for medical and biotech cleanrooms?
A: Designed for FDA/GMP-compliant environments, this FFU features medical-grade H13 HEPA filters with 99.95% efficiency at 0.3μm, critical for sterile drug manufacturing and biosafety labs. Its leak-proof casing and 1175x575x250mm dimensions ensure coverage for ISO Class 5-7 cleanrooms, preventing cross-contamination in cell therapy and vaccine production.
2,Q: How does the modular design adapt to evolving cleanroom layouts?
A: The plug-and-play modular system allows quick installation and reconfiguration. With interlocking panels and tool-free filter replacement, you can scale airflow zones (e.g., adding ISO 5 "hot zones" within ISO 7 areas) without structural changes—ideal for flexible biotech R&D facilities.
3,Q: What certifications validate the energy-efficient performance of this FFU?
A: This unit exceeds Energy Star 3.0 benchmarks, reducing power consumption by 45% via AI-driven airflow optimization. It carries UL 507 safety certification and supports real-time kWh monitoring through BACnet integration, aligning with hospital sustainability mandates.
