High-Speed Rolling Door Air Shower with HEPA 99.995% Filtration & Safety Sensors
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | MRJH |
Certification: | ISO 14644,CE,GMP,FDA,UL |
Model Number: | MRJH-1950X2-JLM |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | Contact Us |
Packaging Details: | Wooden frame |
Delivery Time: | 7-15 days |
Detail Information |
|||
External Dimension: | 1950W × 2570D × 2180H (mm) | Internal Dimension: | 1500W × 2000D × 1980H (mm) |
---|---|---|---|
Custom-made: | Support | Official Website: | Www.ffu-cleanroom.com |
Certification: | ISO,CE,UL,RoHS | ||
Highlight: | HEPA 99.995% Filtration Air Shower,Safety Sensors Air Shower |
Product Description
High-Speed Rolling Door Air Shower with HEPA 99.995% Filtration & Safety Sensors

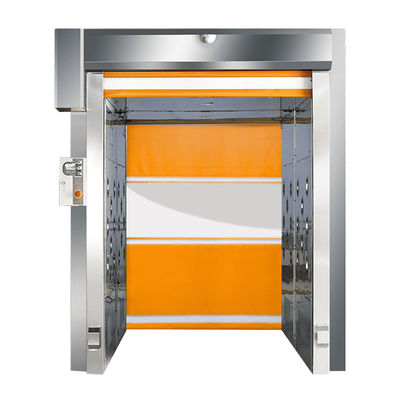

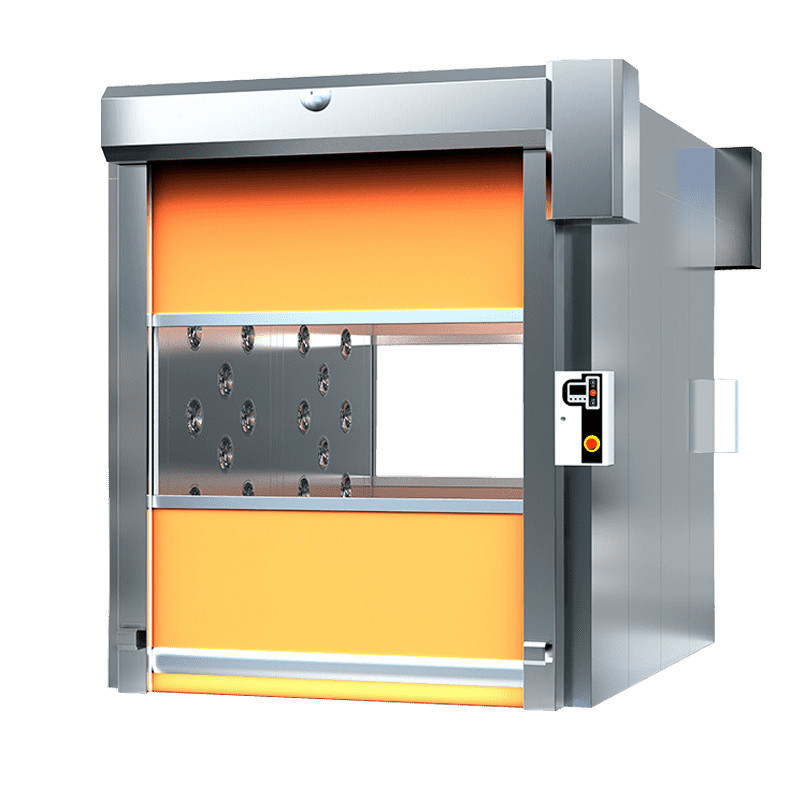

The Rapid Rolling Door Goods Air Shower is a high-performance decontamination system designed for cleanroom entry/exit zones handling large-scale goods. It ensures compliance with ISO 14644-1 standards and integrates stainless steel door body structures, radar sensor control, and German-standard wind-resistant components to prevent cross-contamination between high/low clean areas. Ideal for pharmaceutical, food, and precision manufacturing industries, it features:
Stainless steel rapid rolling doors with safety electric eyes, adjustable speed (open: 0.6–2.5 m/s, close: 0.8–2.0 m/s), and segmented aluminum alloy wind rods for enhanced durability.

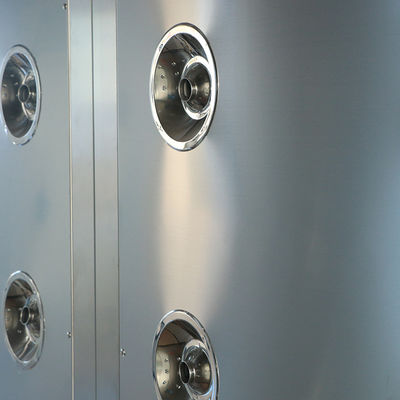

Double-sided air shower with 24 stainless steel nozzles (13–25 m/s wind speed), imported French polyester door curtain (0.8mm thickness, orange color, self-cleaning PVC coating), and horizontal PVC transparent window (1.2mm thickness).
Quadruple filtration: 4 primary filters + 4 HEPA filters (99.995% efficiency @ 0.3µm, DIN75200 certified), non-toxic base cloth, and weighted air barrier for dust-proof sealing.

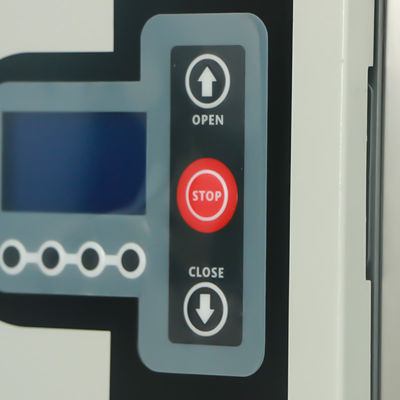

Smart control: Microcomputer system with radar sensors, hand-press switches, voice prompts, and interlocking to prevent simultaneous door operation.
Parameter Name |
Value |
Material |
External cold plate baking paint / Internal 201 stainless steel |
Door System |
Rapid rolling stainless steel door with safety electric eyes, travel positioner, and PVC transparent window |
Air Shower System |
Double-sided blowing, 24 adjustable nozzles (13–25 m/s wind speed) |
Control System |
Microcomputer control, radar sensors, hand-press switch, voice prompts |
Display |
LED display, adjustable shower time (10–99 seconds) |
Fan System |
4 sets of DSX fans (380V/AC/1500W per set), total power: 8 kW |
Filtration |
4 primary filters + 4 HEPA filters (610×610×69 mm, 99.995% @ 0.3µm, DIN75200) |
Lighting |

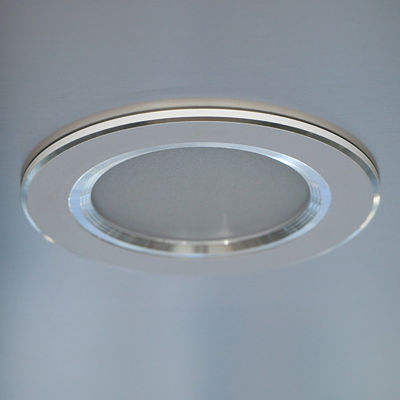

2 LED ceiling lights (220V/50Hz) |
Power Supply |
380V/50Hz/8kW; Fan: 380V/1500W × 4 sets |
External Dimensions |
1950W × 2570D × 2180H (mm) |
Air Shower Area |
1500W × 2000D × 1980H (mm) |
Certifications |
ISO 9001, DIN75200 (Fire Standard),GMP,CE |
Key Features
1. Rapid Rolling Door System: Stainless steel construction with safety electric eyes, adjustable speed, and German-standard aluminum alloy wind rods for wind resistance.
2. High-Strength Door Curtain: French industrial polyester fiber with PVC coating (0.8mm thickness, tear resistance: 600N/600N, temperature range: -30°C to +70°C).
3. Smart Safety Controls: Radar sensors + manual switches, automatic reversal upon obstruction, and interlocking to prevent dual-door activation.
4. Advanced Filtration: Non-toxic, self-cleaning HEPA filters (99.995% @ 0.3µm) with segmented air barrier sealing.
5. Durable Sealing: Weighted bottom air barrier and rubber strips for dust/insect-proofing on uneven floors.
6. Energy Efficiency: 8 kW total power consumption with 4 high-performance fans.
Application Scenarios
Air Lock Function: Prevents unclean airflow between high/low clean areas during goods transfer.
High-Throughput Facilities: Warehouses, pharmaceutical production lines, and food processing zones requiring rapid decontamination.
FAQ 1: Will the high-speed door operation compromise air shower filtration efficiency?
Answer: No. The HEPA 99.995% filtration (certified to DIN75200) works independently of door speed. Even at maximum opening/closing speeds (0.6–2.5 m/s), the dual-sided nozzles maintain 13–25 m/s laminar airflow to remove 0.3µm particulates before entry.
FAQ 2: How reliable are the safety sensors in busy industrial environments?
Answer: The safety electric eyes use infrared photoelectric detection with <0.5s response time. If obstructions (people/objects) are detected during door closure, the system instantly reverses direction and raises the door, validated by 50,000-cycle durability testing.
FAQ 3: Does the HEPA system require frequent filter replacements?
Answer: With self-cleaning PVC-coated curtains and pre-filters capturing 90% of large particles, the HEPA filters only need replacement every 12–18 months under normal use, reducing long-term maintenance costs by 40% versus standard models.
