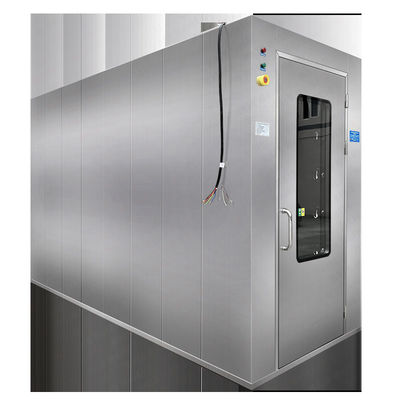

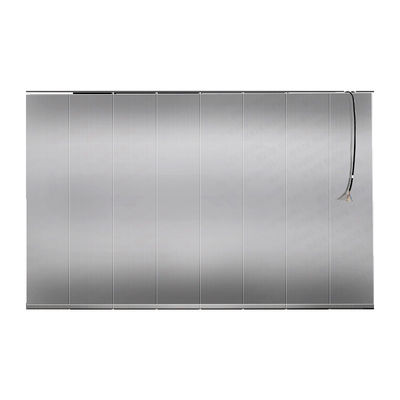

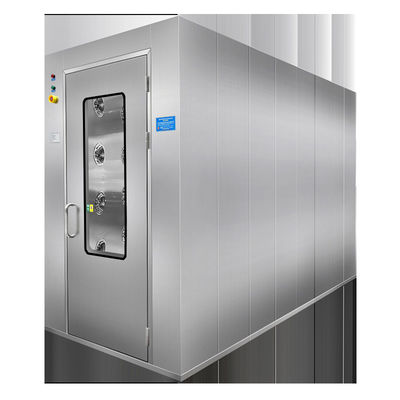

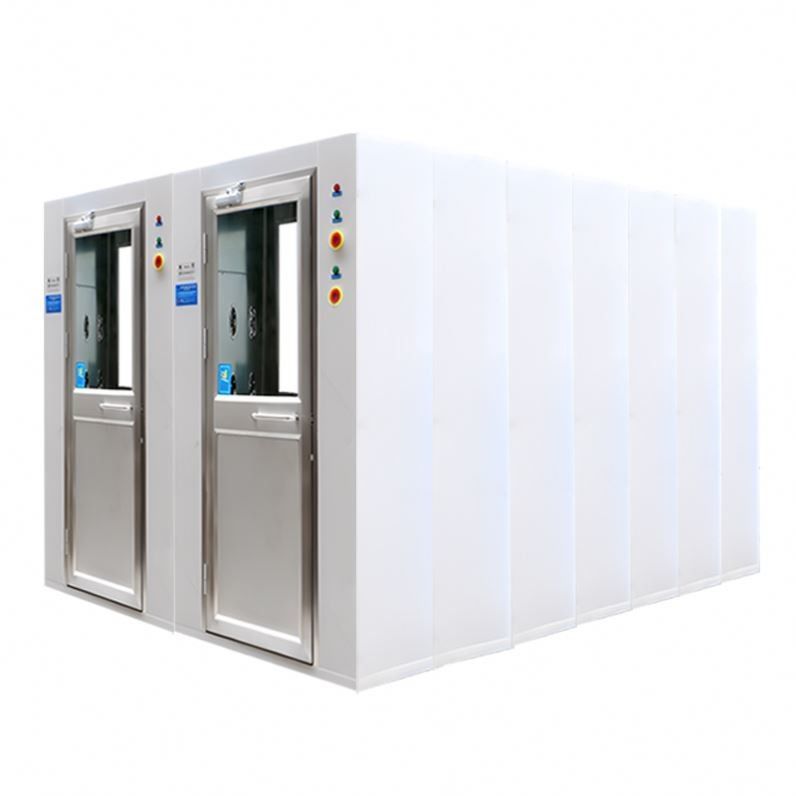

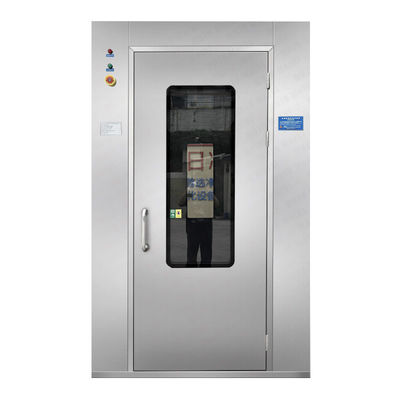

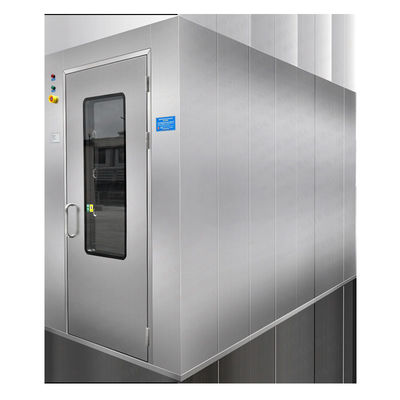

Modular Dust Free Clean Room Double Blow Clean Room Air Shower Equipment
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Wooden packing(1240*1000*2100cm,263kg) |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Applicable Industries: | Electronics Factory | Showroom Location: | China |
|---|---|---|---|
| Video Outgoing-inspection: | Support | Machinery Test Report: | Support |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Voltage: | AC220V/3P/50Hz(Customized | Power: | 1800 |
| Dimension(L*W*H): | 1240*1000*2100 | Weight: | 263 KG |
| Warranty: | 2 Years | Product Name: | Air Shower Room |
| Material: | Powder Coated Steel / SUS304 | Overall Dimension: | 1240*1000*2100 |
| HEPA Filter: | 99.995%@0.3um | Wind Speed: | 13-25M/S |
| Power Supply: | 220/380v 50-60hz | Air Shower Time: | 0-99s Adjustable |
| After-sales Service Provided: | Online Support | Power: | 1500w |
| Delivery Time: | 15 Days | Official Website: | Www.ffu-cleanroom.com |
| Certification: | ISO,CE,UL,RoHS | ||
| Highlight: | Modular Dust Free Clean Room,Double Blow Dust Free Clean Room,Double Blow Air Shower Equipment |
||
Product Description
Product Description
|
Model No.
|
M-RFLS1000
|
|
M-RFLS2000
|
|
M-RFLS1500
|
|
||||
|
|
L*W'H(MM)(Picture 7)
|
|
L*W*H(MM)(Picture 8)
|
|
L*W*H(MM)(Picture 7)
|
|
||||
|
|
|
|
|
|
|
|
||||
|
External Size
|
1240*1000*2180
|
|
1240*2000*2180
|
|
1240*1500*2180
|
|
||||
|
Working Area Size
|
790*900*1950
|
|
790*1860*1950
|
|
790*1360*1950
|
|
||||
|
Cleanliness
|
99.995% @ 0.3um( Upon the environment)
|
|
|
|
99.995% @ 03um( Upon the environment)
|
|
||||
|
Control Mode
|
intelligent voice, electronic interlock, photoelectric induction
|
|
|
|
Intelligent voice, electronic interlock, photoelectric induction
|
|
||||
|
Nozzle QTY
|
12pcs
|
|
24pcs
|
|
12pcs
|
|
||||
|
NO.of People
|
1 person
|
|
1-2 person
|
|
1 person
|
|
||||
|
Mr Speed
|
13-25m/s
|
|
13-25m/s
|
|
13-25m/s
|
|
||||
|
Power
|
220V 50HZ
|
|
220V 50HZ
|
|
220V 50HZ
|
|
||||
|
Power Supply
|
1500W/unit
|
|
1500W/2 units
|
|
1500W/unit
|
|
||||
|
'A'arranty
|
3 Years
|
|
3 Years
|
|
3 Years
|
|
||||
|
Material
|
All Coated Cold-Rolled Steel Plate
|
Full SUS304
|
All Coated Cold-Rolled Steel Plate
|
Full SUS304
|
All Coated Cold-Rolled Steel Plate
|
Full SUS304
|
||||
Specifications:
1.The outer structure is coated with cold-rolled steel panels, while the interior is constructed using SUS 304 stainless steel.
2.Upscale double doors made of SUS 304 stainless steel, featuring glass observation windows.
3.Dual impact system equipped with a total of 12 adjustable nozzles made of stainless steel.
4.Electrical circuitry: Microcomputer-controlled system, voice prompts, photoelectric sensing. The two doors are interconnected electronically to prevent simultaneous opening.
5.LED display with adjustable blowing duration ranging from 0 to 99 seconds (pre-set to 10 seconds at the factory).
6.Air shower room incorporates a dedicated fan, providing an air nozzle outlet velocity of 13-25m/s.
7.Includes a primary efficiency filter and a high efficiency filter, achieving 99.99% HEPA efficiency at 0.5um.
8.Energy-efficient lighting: 220V/50Hz, equipped with one 21W lamp. 9.Fan power supply: 380V/50Hz, with a power rating of 1500W.
External Dimensions: 1240 (W) * 1000 (D) * 2100 (H). Internal Dimensions: 790 (W) * 900 (D) * 1950 (H).
2.Upscale double doors made of SUS 304 stainless steel, featuring glass observation windows.
3.Dual impact system equipped with a total of 12 adjustable nozzles made of stainless steel.
4.Electrical circuitry: Microcomputer-controlled system, voice prompts, photoelectric sensing. The two doors are interconnected electronically to prevent simultaneous opening.
5.LED display with adjustable blowing duration ranging from 0 to 99 seconds (pre-set to 10 seconds at the factory).
6.Air shower room incorporates a dedicated fan, providing an air nozzle outlet velocity of 13-25m/s.
7.Includes a primary efficiency filter and a high efficiency filter, achieving 99.99% HEPA efficiency at 0.5um.
8.Energy-efficient lighting: 220V/50Hz, equipped with one 21W lamp. 9.Fan power supply: 380V/50Hz, with a power rating of 1500W.
External Dimensions: 1240 (W) * 1000 (D) * 2100 (H). Internal Dimensions: 790 (W) * 900 (D) * 1950 (H).
Recommended Products
Company Profile
Shenzhen Meiri Purification Technology Co., Ltd was established in 2012, is a professional engaged in the research, development, sale and service of air filters, air purification equipment and cleanroom solutions.
Owning the advanced production processing and highly automotive machine lines for air purification equipment, equipped a dust-free production workshop for air filters, KLC is always capable of meeting production requirements of large projects. MRJH has built a modern quality management system which is strict accordance with international standards such as ISO, till now our products and production technology have obtained dozens of national patents and international certification such as CE, UL, ROHS, REACH.
Certifications
Exhibition
Production Line
Design Development
Prepares Materials
Processing
Assemble
Detection
Package
Product Package
FAQ
Q: What’s your sample and production lead time ? A: The lead time for sample takes around 3-7days, mass production lead time is about 2-3 weeks Q: How do you ship the goods ? A: It depends on customer’s demands . If with the full containers , we’d suggest to ship by vessel . If with small order volumes & urgent orders, we’ll suggest to ship by air freight or international couriers . Q: Where is your company located A: Our company & factory are located in Shenzhen , China ( No. 79, Langbei Viallage Industry Road , Tongde Commity , Baolong Stree , Longgang District, Shezhen City , Guangdong Province , China) Q:Can you arrange a visit to your factory? A:Yes,of course. Q:Can you provide customized products as our requirements? A:Yes,of course. Q:Do you test all your products before delivery? A:Yes,of course.We will do 100% test and provide test report before delivery Q:How long is your items delivery time? A:It is normal 10~30 days.Usually it depends on order size,quantity and configuration,etc. Q:What payment term can you accept?What price term can you accept? A:We can accept T/T,L/C,etc.We can accept EXW,FOB,CFR,CIF, DDU,etc. Q:What after-sale service can you provide? A:We can provide 24 hours' technical support online by e-mail,phone,video,etc. Q:How many countries have you exported to?How do you make long-term relationship and cooperation? A:We have exported to over 30 countries in Asia,Middle East,Africa,Europe,North America,South America,etc.We will offer good quality,service and price to ensure our customer satisfaction.We will consider our customer as our friend to help them to solve problems.
