High-Speed Rolling Door Air Shower with HEPA Filtration and Safety Sensors for Cleanroom Entry
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
| Model Number: | MRJH-1950X2-JLM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Wooden frame |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| External Dimension: | 1950W × 2570D × 2180H (mm) | Internal Dimension: | 1500W × 2000D × 1980H (mm) |
|---|---|---|---|
| Custom-made: | Support | Certification: | ISO,CE,UL,RoHS |
| Highlight: | HEPA 99.995% Filtration Air Shower,Safety Sensors Air Shower |
||
Product Description

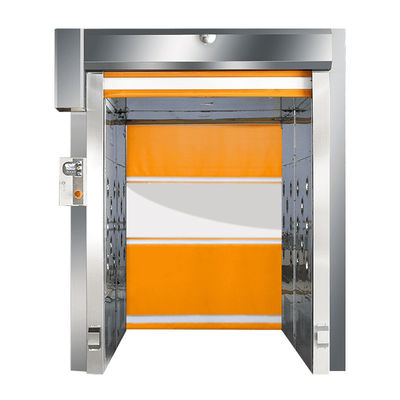

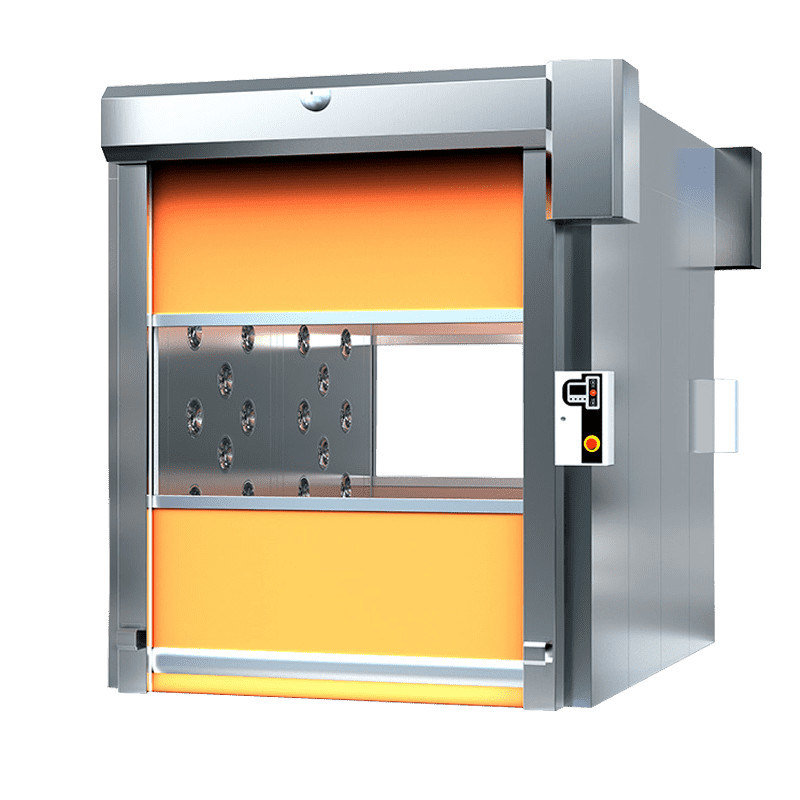

High-Speed Rolling Door Air Shower with HEPA Filtration & Safety Sensors
Key Features
- Rapid Rolling Door System: Stainless steel construction with safety electric eyes, adjustable speed, and German-standard aluminum alloy wind rods for wind resistance
- High-Strength Door Curtain: French industrial polyester fiber with PVC coating (0.8mm thickness, tear resistance: 600N/600N, temperature range: -30°C to +70°C)
- Smart Safety Controls: Radar sensors + manual switches, automatic reversal upon obstruction, and interlocking to prevent dual-door activation
- Advanced Filtration: Non-toxic, self-cleaning HEPA filters with segmented air barrier sealing
- Durable Sealing: Weighted bottom air barrier and rubber strips for dust/insect-proofing on uneven floors
- Energy Efficiency: 8 kW total power consumption with 4 high-performance fans
Technical Specifications
| Parameter Name | Value |
|---|---|
| Material | External cold plate baking paint / Internal 201 stainless steel |
| Door System | Rapid rolling stainless steel door with safety electric eyes, travel positioner, and PVC transparent window |

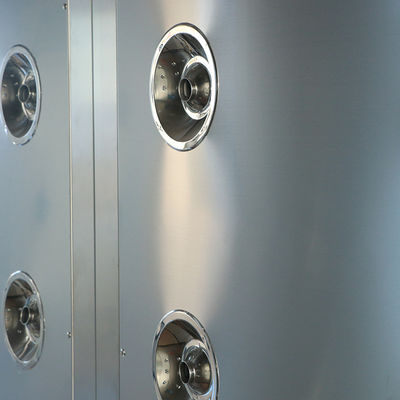

| Air Shower System | Double-sided blowing, 24 adjustable nozzles (13-25 m/s wind speed) |

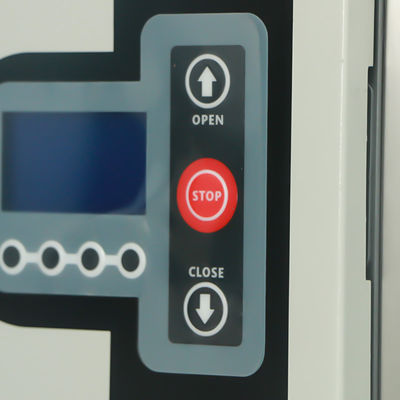

| Control System | Microcomputer control, radar sensors, hand-press switch, voice prompts |
| Display | LED display, adjustable shower time (10-99 seconds) |
| Fan System | 4 sets of DSX fans (380V/AC/1500W per set), total power: 8 kW |

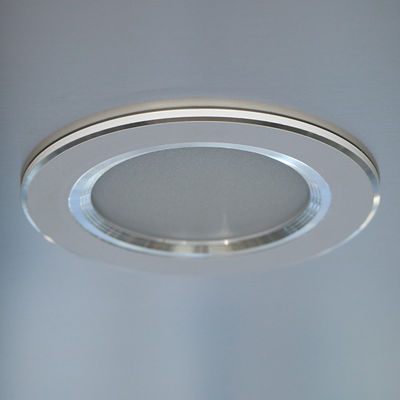

| Lighting | 2 LED ceiling lights (220V/50Hz) |
| Power Supply | 380V/50Hz/8kW; Fan: 380V/1500W × 4 sets |
| External Dimensions | 1950W × 2570D × 2180H (mm) |
| Air Shower Area | 1500W × 2000D × 1980H (mm) |
| Certifications | ISO 9001, DIN75200 (Fire Standard), GMP, CE |
Application Scenarios
- Air Lock Function: Prevents unclean airflow between high/low clean areas during goods transfer
- High-Throughput Facilities: Warehouses, pharmaceutical production lines, and food processing zones requiring rapid decontamination
Frequently Asked Questions
Will the high-speed door operation compromise air shower filtration efficiency?
No. The HEPA filtration (certified to DIN75200) works independently of door speed. Even at maximum opening/closing speeds (0.6-2.5 m/s), the dual-sided nozzles maintain 13-25 m/s laminar airflow to remove particulates before entry.
How reliable are the safety sensors in busy industrial environments?
The safety electric eyes use infrared photoelectric detection with <0.5s response time. If obstructions (people/objects) are detected during door closure, the system instantly reverses direction and raises the door, validated by 50,000-cycle durability testing.
Does the HEPA system require frequent filter replacements?
With self-cleaning PVC-coated curtains and pre-filters capturing 90% of large particles, the HEPA filters only need replacement every 12-18 months under normal use, reducing long-term maintenance costs by 40% versus standard models.
