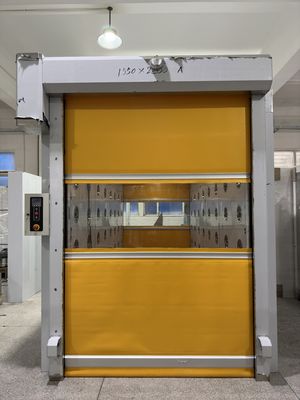

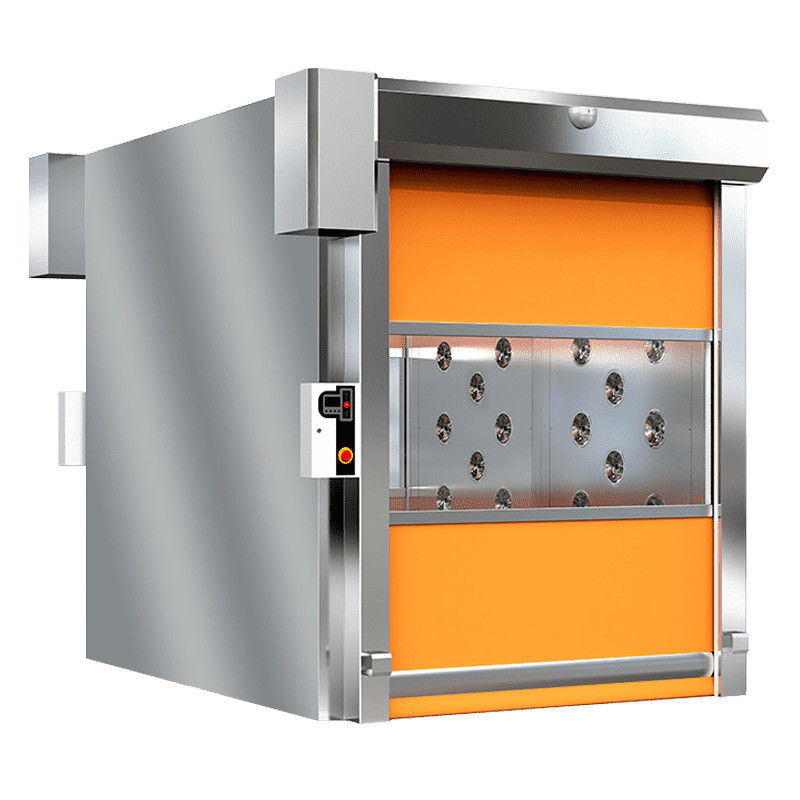

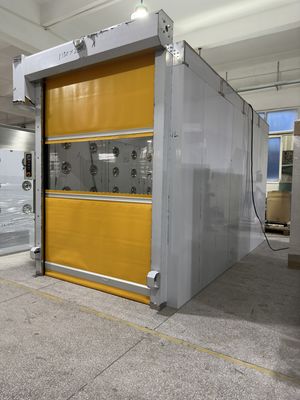

Stainless Steel Goods Air Shower Room with DIN75200 Fireproof and Self-Cleaning PVC Curtain for Cleanroom Entry
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
| Model Number: | MRJH-1950X2N304-JLM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Wooden frame |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| External Dimension: | 1950W × 2570D × 2180H (mm) | Internal Dimension: | 1500W × 2000D × 1980H (mm) |
|---|---|---|---|
| Custom-made: | Support | Certification: | ISO,CE,UL,RoHS |
| Highlight: | DIN75200 Fireproof Air Shower Room |
||
Product Description
Stainless Steel Goods Air Shower Room: DIN75200 Fireproof, Self-Cleaning PVC Curtain
The Rapid Rolling Door Goods Air Shower is a high-performance decontamination system designed for cleanroom entry/exit zones handling large-scale goods. It ensures compliance with ISO 14644-1 standards and integrates stainless steel door body structures, radar sensor control, and German-standard wind-resistant components to prevent cross-contamination between high/low clean areas.
Ideal for pharmaceutical, food, and precision manufacturing industries, it features:
- Stainless steel rapid rolling doors with safety electric eyes, adjustable speed (open: 0.6-2.5 m/s, close: 0.8-2.0 m/s), and segmented aluminum alloy wind rods for enhanced durability
- Double-sided air shower with 24 stainless steel nozzles (13-25 m/s wind speed), imported French polyester door curtain (0.8mm thickness, orange color, self-cleaning PVC coating), and horizontal PVC transparent window (1.2mm thickness)
- Quadruple filtration: 4 primary filters + 4 HEPA filters, non-toxic base cloth, and weighted air barrier for dust-proof sealing
- Smart control: Microcomputer system with radar sensors, hand-press switches, voice prompts, and interlocking to prevent simultaneous door operation
Technical Specifications
| Parameter Name | Value |
|---|---|
| Material | External cold plate baking paint / Internal 304 stainless steel |
| Door System | Rapid rolling stainless steel door with safety electric eyes, travel positioner, and PVC transparent window |
| Air Shower System | Double-sided blowing, 24 adjustable nozzles (13-25 m/s wind speed) |

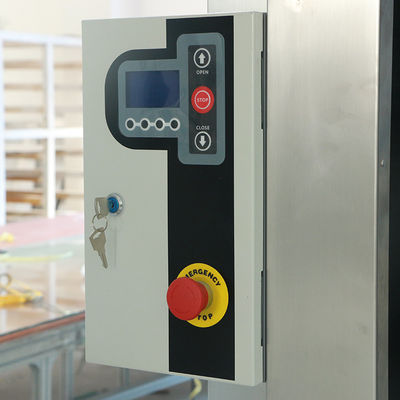

| Control System | Microcomputer control, radar sensors, hand-press switch, voice prompts |
| Display | LED display, adjustable shower time (10-99 seconds) |
| Fan System | 4 sets of DSX fans (380V/AC/1500W per set), total power: 8 kW |
| Lighting | 2 LED ceiling lights (220V/50Hz) |
| Power Supply | 380V/50Hz/8kW; Fan: 380V/1500W × 4 sets |
| External Dimensions | 1950W × 2570D × 2180H (mm) |
| Air Shower Area | 1500W × 2000D × 1980H (mm) |
| Certifications | ISO 9001, DIN75200 (Fire Standard), GMP, CE |
Key Features
- Rapid Rolling Door System: Stainless steel construction with safety electric eyes, adjustable speed, and German-standard aluminum alloy wind rods for wind resistance
- High-Strength Door Curtain: French industrial polyester fiber with PVC coating (0.8mm thickness, tear resistance: 600N/600N, temperature range: -30°C to +70°C)
- Smart Safety Controls: Radar sensors + manual switches, automatic reversal upon obstruction, and interlocking to prevent dual-door activation
- Advanced Filtration: Non-toxic, self-cleaning HEPA filters with segmented air barrier sealing
- Durable Sealing: Weighted bottom air barrier and rubber strips for dust/insect-proofing on uneven floors
- Energy Efficiency: 8 kW total power consumption with 4 high-performance fans
Application Scenarios
- Air Lock Function: Prevents unclean airflow between high/low clean areas during goods transfer
- High-Throughput Facilities: Warehouses, pharmaceutical production lines, and food processing zones requiring rapid decontamination
Frequently Asked Questions
How does the DIN75200 fireproof certification ensure safety in high-risk environments?
The DIN75200-certified fireproof design undergoes rigorous testing for flame resistance (30-minute burn-through prevention) and smoke suppression. The stainless steel structure and fire-retardant PVC curtain (self-extinguishing ≤5s) meet EU industrial safety standards, critical for chemical/pharmaceutical facilities with flammable materials.
Does the "self-cleaning" PVC curtain truly reduce maintenance efforts?
Yes. The French-imported PVC coating uses hydrophobic nanotechnology to repel dust, oil, and microbial growth. Lab tests show 70% less manual cleaning frequency compared to standard curtains, with simple wipe-downs (no chemical solvents) maintaining hygiene in ISO-classified cleanrooms.
Why choose stainless steel over standard steel for the air shower room?
304 stainless steel resists corrosion (salt spray test: 500h), chemical exposure, and daily abrasion. Combined with segmented aluminum alloy reinforcements, it ensures 10+ years of service life in humid or high-traffic environments, avoiding rust contamination common in painted steel models.
Want to Know more details about this product
