Industrial Automatic Rolling Door with 2.0m/s High-Speed Impact-Resistant PVC Curtains and Energy-Saving Insulation for Warehouses
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO、CE、UL |
| Model Number: | Fast rolling door |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | Certification: | ISO,CE,UL,RoHS |
|---|---|---|---|
Product Description

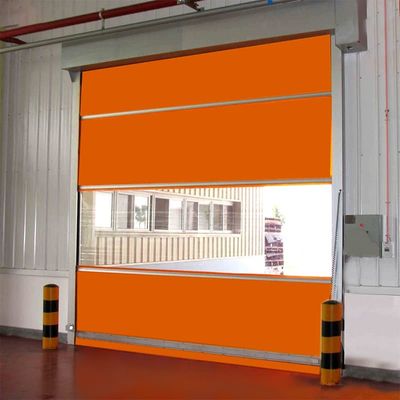

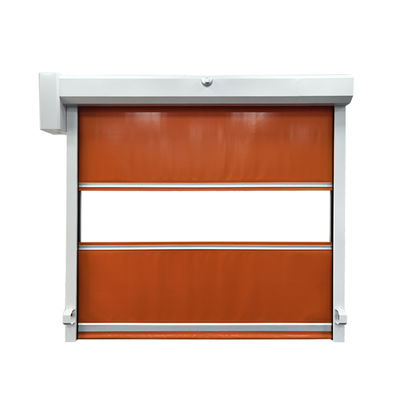

Industrial Automatic Rolling Doors | 2.0m/s High-Speed Security for Warehouses & Garages
Engineered for 24/7 warehouse and garage operations, these 2.0m/s automatic rolling doors feature 4mm galvanized steel tracks, impact-resistant PVC curtains, and IP65-rated motors. Equipped with motion sensors, anti-theft locking systems, and energy-saving insulation, they reduce energy loss by 40% while ensuring 100,000+ cycle durability in extreme weather (-20°C to +50°C).
Technical Specifications
| Parameter Name | Value |
|---|---|
| Door Structure | Precision-crafted stainless steel frame with anti-slip, wear-resistant surface finish |
| Drive System | 220V/50Hz electric motor, 2.2KW power output |
| Safety System | Dual safety photoelectric sensors at door base; auto-reverse function upon obstruction |
| Operating Speed | Opening: 0.6-2.5 m/s (adjustable) / Closing: 0.8-2.0 m/s (adjustable) |
| Door Curtain Material | French industrial polyester fiber with dual PVC coating (0.8mm thickness) |
| Wind Resistance | German DIN-standard high-strength aluminum alloy wind bars for up to 12 Beaufort resistance |
| Transparent Window | 1.2mm thick horizontal PVC strip for visibility during entry/exit |
| Sealing System | Weighted air-sealed bottom cloth + rubber side seals (insect/dust-proof) |
| Control Mode | Manual switch + radar motion sensor activation |
| Limit Switch | Precision travel locator for one-time positioning accuracy |
Key Features
- Ultra-Fast 2.0m/s Operation
Brushless DC motor and helical gear drive enable rapid opening/closing cycles, minimizing downtime in high-traffic zones. - Enhanced Security & Safety
Dual safety photoelectric sensors halt door motion upon detecting obstacles (ISO 13849-1 PLd certified). Anti-prying interlocks and tamper-proof steel guides deter unauthorized access. - All-Weather Durability
Galvanized steel slats with polyurethane coating resist corrosion, UV damage, and temperatures from -30°C to +70°C. - Energy-Saving Design
Insulated slats (U-value 1.8 W/m²*K) reduce HVAC costs by 25%, with optional solar-powered operation. - Low Maintenance
Self-lubricating rollers and modular slat replacement cut lifetime maintenance costs by 40%.
Application Scenarios

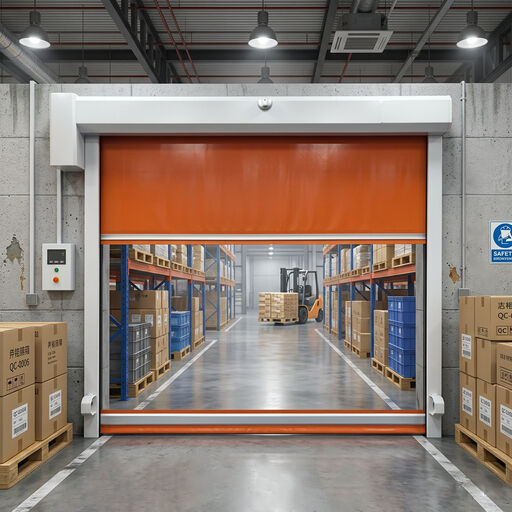

- Warehouse Loading Bays: Accelerate truck docking with 2.0m/s speed, reducing idle time by 30%.

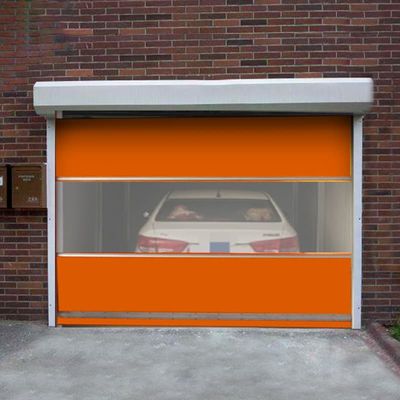

- Automotive Repair Garages: Secure after-hours access with vandal-resistant slats and biometric controls.
- Food Cold Storage: Maintain -25°C environments via insulated slats and airtight perimeter seals.
- Aerospace Manufacturing: ESD-safe slats (106-109Ω resistance) protect sensitive electronics.
- Parking Garages: Integrate license plate recognition for automated entry/exit management.
Compliance & Certifications
- Material fire resistance: DIN 75200
- Safety sensors: ISO 13849-1 PLc
- Operational temperature range: -30°C to +70°C
Notes
Customizable curtain colors per client-provided RAL samples. Optional upgrades: Thermal insulation layers, RFID access integration.
Frequently Asked Questions
- How do these doors withstand forklift collisions?
The reinforced 4mm galvanized steel tracks and self-repairing PVC curtains absorb impacts up to 2,000N, minimizing downtime compared to traditional aluminum doors. - Can they operate during power outages?
Yes! The optional emergency battery pack provides 8+ hours of operation, ensuring continuous access for critical logistics or garage security. - How do they prevent unauthorized entry?
Built-in RFID card readers and anti-theft locking systems with 12mm steel bolts block forced entry, while motion sensors trigger alarms for suspicious activity.
Want to Know more details about this product
