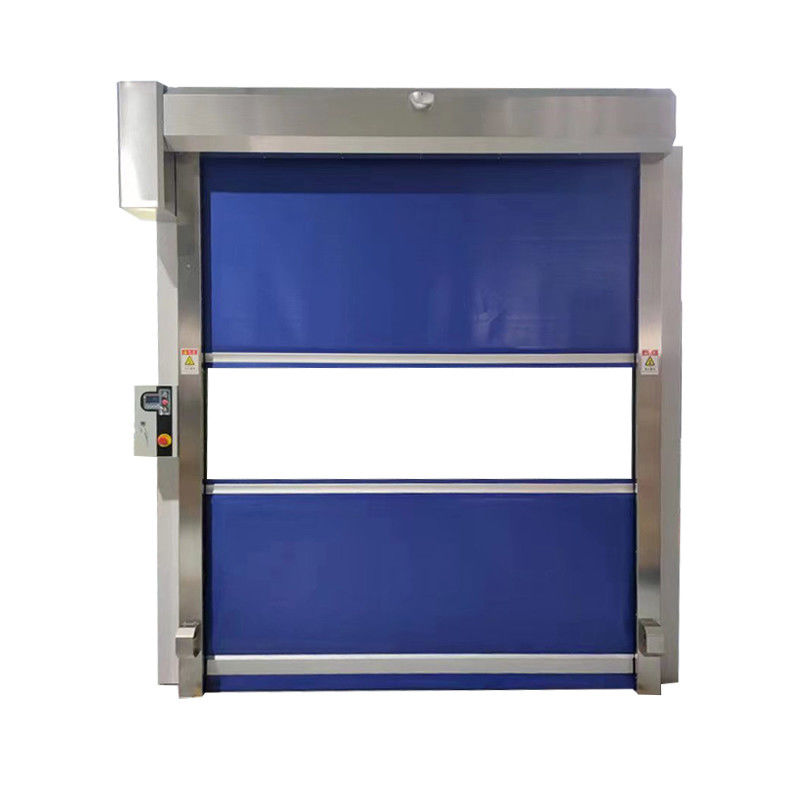

High-Speed Roll-Up Door with 0.8mm Reinforced PVC Curtain and 0.6-2.5m/s Adjustable Speed featuring Emergency Reverse Safety
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO、CE、UL |
| Model Number: | Fast rolling door |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | Certification: | ISO,CE,UL,RoHS |
|---|---|---|---|
Product Description
High-Speed Roll-Up Door with Emergency Reverse | 0.8mm Reinforced PVC | 0.6-2.5m/s Adjustable
Wind-Resistant High-Speed Roll-Up Door | Radar Sensor & 0.8mm PVC Curtain | 0.6-2.5m/s Adjustable
High-speed roll-up door with emergency reverse safety sensors and 0.8mm reinforced PVC curtain. Adjustable speeds (0.6-2.5m/s), ideal for factories, cold storage, and automated warehouses.
High-speed roll-up door with emergency reverse safety sensors and 0.8mm reinforced PVC curtain. Adjustable speeds (0.6-2.5m/s), ideal for factories, cold storage, and automated warehouses.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Door Structure | Precision-crafted stainless steel frame with anti-slip, wear-resistant surface finish |
| Drive System | 220V/50Hz electric motor, 2.2KW power output |
| Safety System | Dual safety photoelectric sensors at door base; auto-reverse function upon obstruction |
| Operating Speed | Opening: 0.6-2.5 m/s (adjustable) / Closing: 0.8-2.0 m/s (adjustable) |
| Door Curtain Material | French industrial polyester fiber with dual PVC coating (0.8mm thickness) |
| Wind Resistance | German DIN-standard high-strength aluminum alloy wind bars for up to 12 Beaufort resistance |
| Transparent Window | 1.2mm thick horizontal PVC strip for visibility during entry/exit |
| Sealing System | Weighted air-sealed bottom cloth + rubber side seals (insect/dust-proof) |
| Control Mode | Manual switch + radar motion sensor activation |
| Limit Switch | Precision travel locator for one-time positioning accuracy |
Product Features
- Collision Prevention: Dual photoelectric sensors + mechanical limit switches for dual-layer safety.
- Ultra-Durable Curtain: French polyester base with 4000/3500N warp/weft strength, self-cleaning surface.
- Weatherproof Design: -30°C to +70°C operation with IP65-rated motor housing.
- Precision Control: Radar + manual switch modes with 0.1-second response time.
- Energy Efficiency: 2.2KW motor consumes 30% less power than hydraulic alternatives.
Application Scenarios
- Robotic Assembly Lines: 0.6m/s precision mode syncs with automated guided vehicles (AGVs).
- Chemical Storage Facilities: Acid-resistant curtain material (pH 2-12 compatibility).
- Airport Cargo Terminals: Windproof up to 100km/h for outdoor loading zones.
- Beverage Bottling Plants: Hygienic seals prevent insect/dust ingress (HACCP compliant).
- Textile Manufacturing: Anti-static coating prevents fiber adhesion to curtains.
Compliance & Certifications
• Material fire resistance: DIN 75200
• Safety sensors: ISO 13849-1 PLc
• Operational temperature range: -30°C to +70°C
• Safety sensors: ISO 13849-1 PLc
• Operational temperature range: -30°C to +70°C
Notes
• Customizable curtain colors per client-provided RAL samples.
• Optional upgrades: Thermal insulation layers, RFID access integration.
• Optional upgrades: Thermal insulation layers, RFID access integration.
Frequently Asked Questions
Will the door curtain withstand repeated impacts from forklifts or heavy pallets?
Yes, the 600/600N tensile-strength PVC fabric and steel-reinforced bottom bar absorb impact energy while maintaining tear resistance.
How does the emergency reverse function perform during power outages?
The fail-safe mechanism activates via backup capacitors, ensuring immediate reversal even during sudden power loss.
Is the system compatible with high-humidity environments like seafood processing plants?
Corrosion-resistant stainless steel components and anti-mold PVC coating prevent degradation in 95% RH conditions.
