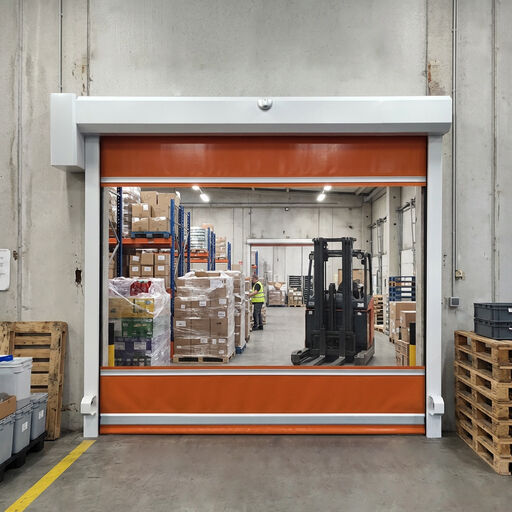

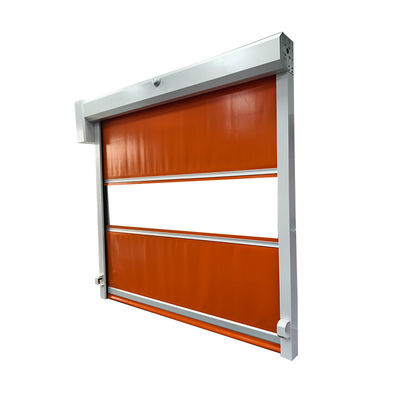

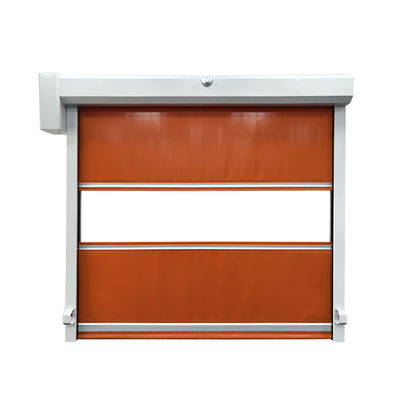

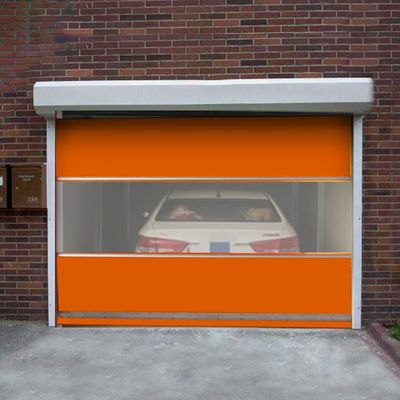

Wind-Resistant High-Speed Roll-Up Door with Radar Sensor & 0.8mm PVC Curtain for Industrial Facilities
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO、CE、UL |
| Model Number: | Fast rolling door |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | Certification: | ISO,CE,UL,RoHS |
|---|---|---|---|
Product Description
Wind-Resistant High-Speed Roll-Up Door | Radar Sensor & 0.8mm PVC Curtain | 0.6-2.5m/s Adjustable
Technical Specifications
| Door Structure | Precision-crafted stainless steel frame with anti-slip, wear-resistant surface finish |
|---|---|
| Drive System | 220V/50Hz electric motor, 2.2KW power output |
| Safety System | Dual safety photoelectric sensors at door base; auto-reverse function upon obstruction |
| Operating Speed | Opening: 0.6-2.5 m/s (adjustable) / Closing: 0.8-2.0 m/s (adjustable) |
| Door Curtain Material | French industrial polyester fiber with dual PVC coating (0.8mm thickness) |
| Wind Resistance | German DIN-standard high-strength aluminum alloy wind bars for up to 12 Beaufort resistance |
| Transparent Window | 1.2mm thick horizontal PVC strip for visibility during entry/exit |
| Sealing System | Weighted air-sealed bottom cloth + rubber side seals (insect/dust-proof) |
| Control Mode | Manual switch + radar motion sensor activation |
| Limit Switch | Precision travel locator for one-time positioning accuracy |
Product Features
- Segmented aluminum bars and 600/600N tensile fabric prevent deformation under 120km/h winds.
- Photoelectric sensors + radar auto-reverse function (response time <0.3s) eliminate collision risks.
- Operates from -30°C to +70°C with self-cleaning PVC to reduce maintenance.
- Weighted bottom seal adapts to uneven floors (≤5mm gaps), blocking dust and insects.
- Motor idles at 10W standby power, cutting energy costs by 40% vs. traditional doors.
Application Scenarios
- E-Commerce Logistics Hubs: Rapid parcel sorting with 0.6m/s slow mode for forklift safety.
- Automotive Paint Shops: Dust-blocking seals maintain ISO Class 8 air quality.
- Frozen Storage Facilities: -30°C-rated curtains prevent cold leakage (U-value ≤1.2 W/m²*K).
- Pharmaceutical Loading Bays: DIN 75200 fire-resistant curtains meet GMP material standards.
- Agriculture Processing Plants: Chemical-resistant surfaces withstand fertilizer/oil exposure.
Compliance & Certifications
- Material fire resistance: DIN 75200
- Safety sensors: ISO 13849-1 PLc
- Operational temperature range: -30°C to +70°C
Customization Options
- Customizable curtain colors per client-provided RAL samples.
- Optional upgrades: Thermal insulation layers, RFID access integration.
Frequently Asked Questions
Can the door withstand frequent sandstorms or heavy wind loads in coastal areas?
Yes, the German-standard aluminum alloy wind bars provide 12-level Beaufort wind resistance, while the anti-slip stainless steel frame ensures stability in extreme weather.
How long does installation take for large-scale warehouse deployments?
Pre-assembled components allow installation within 4 hours per unit, with adjustable mounting brackets (±15mm) to fit uneven structural surfaces.
Does the PVC curtain degrade when exposed to chemicals like oil or solvents?
The dual-coated French polyester fabric resists oil, mild acids, and alkalis (pH 3-10), ensuring a 5-year lifespan even in automotive or chemical plants.
