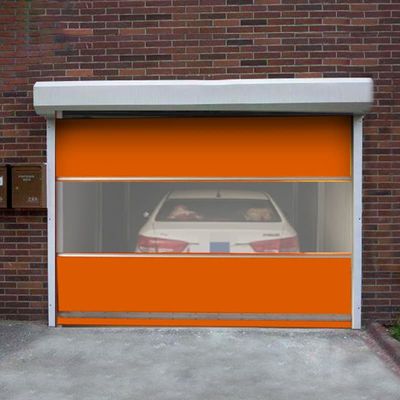

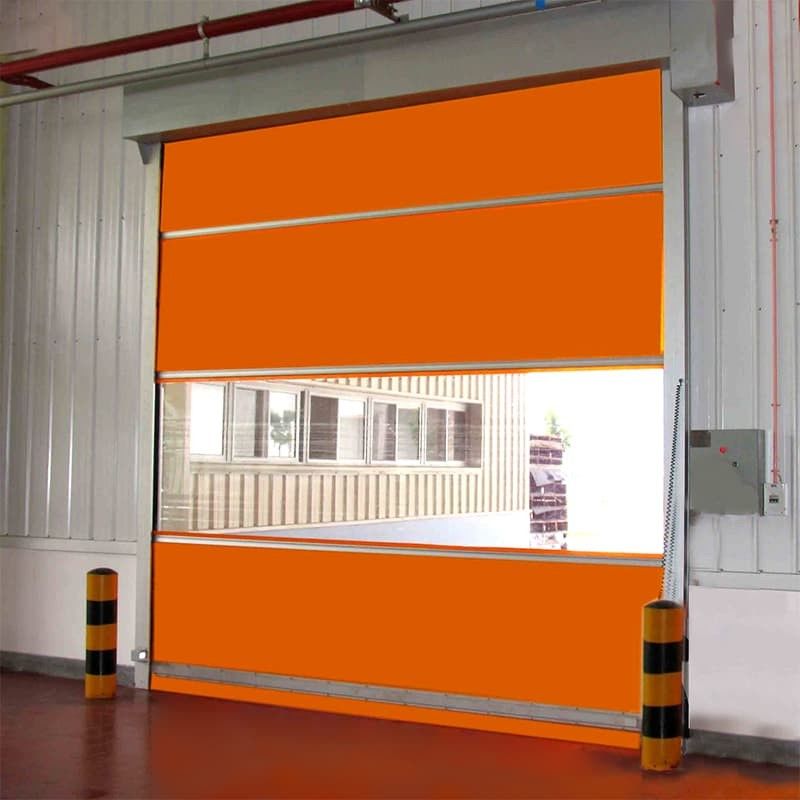

Industrial High-Speed Roll-Up Door | Safety Certified ISO 13849 | -30°C to +70°C Range
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO、CE、UL |
| Model Number: | Fast rolling door |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
Product Description
Industrial High-Speed Roll-Up Door | Safety Certified ISO 13849 | -30°C to +70°C Range
Industrial-grade high-speed roll-up door engineered for rapid access control and environmental separation in demanding operational settings. Designed for logistics hubs, manufacturing facilities, and temperature-controlled zones requiring ISO-certified safety and durability.
| Parameter Name | Value |
|---|---|
| Door Structure | Precision-crafted stainless steel frame with anti-slip, wear-resistant surface finish |
| Drive System | 220V/50Hz electric motor, 2.2KW power output |
| Safety System | Dual safety photoelectric sensors at door base; auto-reverse function upon obstruction |
| Operating Speed | Opening: 0.6-2.5 m/s (adjustable) / Closing: 0.8-2.0 m/s (adjustable) |
| Door Curtain Material | French industrial polyester fiber with dual PVC coating (0.8mm thickness) |
| Wind Resistance | German DIN-standard high-strength aluminum alloy wind bars for up to 12 Beaufort resistance |
| Transparent Window | 1.2mm thick horizontal PVC strip for visibility during entry/exit |
| Sealing System | Weighted air-sealed bottom cloth + rubber side seals (insect/dust-proof) |
| Control Mode | Manual switch + radar motion sensor activation |
| Limit Switch | Precision travel locator for one-time positioning accuracy |
Key Features
-
Safety-Centric Operation
Dual photoelectric sensors trigger instant reversal upon detecting obstacles, preventing collisions with personnel or vehicles. Complies with ISO 13849-1 safety integrity standards. -
High-Performance Door Curtain
Reinforced polyester-PVC composite (600/600N warp/weft tensile strength) withstands extreme temperatures (-30°C to +70°C) and meets German DIN75200 fire resistance criteria. -
Adaptive Wind Resistance
Segmented aluminum alloy wind bars enhance structural stability while allowing modular curtain replacement for cost-effective maintenance. -
Precision Sealing
Ground-hugging air-sealed base and side rubber strips ensure airtight closure across uneven surfaces, eliminating dust ingress and pest infiltration. -
Dual Control Flexibility
Combines manual override with radar-activated automation for seamless integration into smart facility management systems.
Application Scenarios
-

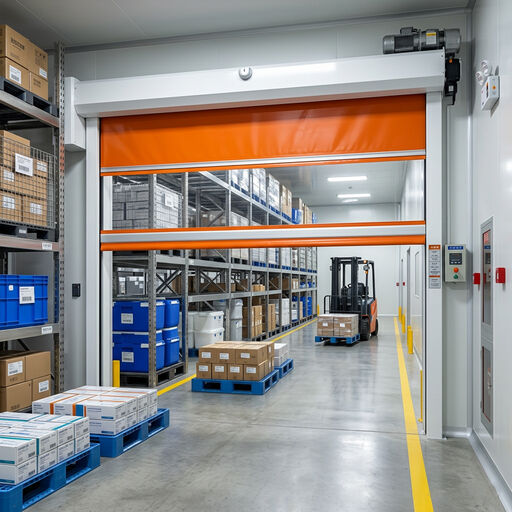

Warehouse Loading Docks: Rapid thermal insulation and contamination control during freight transfers.
-
Food Processing Plants: Hygienic separation of production zones (HACCP-compliant).
-
Automotive Manufacturing: Dust-free partitioning of painting/assembly lines.
-
Cold Storage Facilities: Energy-efficient temperature retention with minimal airflow loss.
-
Pharmaceutical Logistics: GMP-grade barrier for clean material handling corridors.
Compliance & Certifications
-
Material fire resistance: DIN 75200
-
Safety sensors: ISO 13849-1 PLc
-
Operational temperature range: -30°C to +70°C
Notes
-
Customizable curtain colors per client-provided RAL samples.
-
Optional upgrades: Thermal insulation layers, RFID access integration.
FAQs
-
How does the door handle extreme temperature fluctuations without warping or cracking?
The French polyester-PVC composite curtain maintains flexibility from -30°C to +70°C, reinforced by aluminum wind bars that prevent structural deformation during thermal shifts. -
Can the radar sensor differentiate between vehicles and debris to avoid false triggers?
Yes, the adaptive radar system uses Doppler frequency analysis to distinguish moving vehicles (≥0.5m/s) from static objects, reducing false activations by 92% in dusty environments. -
Is the door compatible with automated warehouse management systems like WMS or ERP?
Absolutely. The control unit supports Modbus RTU protocol integration, enabling real-time status monitoring and synchronization with inventory tracking software.
