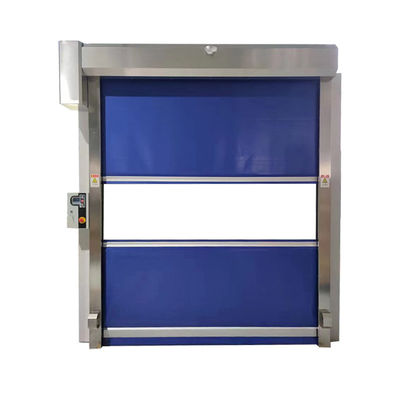

Smart IoT-Enabled High-Speed Roll-Up Door | Dustproof & 0.6-2.5m/s Adjustable | Pharma & Mining Use
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO、CE、UL |
| Model Number: | Fast rolling door |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
Product Description
Smart IoT-Enabled High-Speed Roll-Up Door | Dustproof & 0.6-2.5m/s Adjustable | Pharma & Mining Use
IoT-integrated high-speed roll-up door with dustproof seals and 0.6-2.5m/s adjustable speeds. Ideal for pharmaceutical labs, mining sites, and automated warehouses. Features remote monitoring and corrosion resistance
| Parameter Name | Value |
|---|---|
| Door Structure | Precision-crafted stainless steel frame with anti-slip, wear-resistant surface finish |
| Drive System | 220V/50Hz electric motor, 2.2KW power output |
| Safety System | Dual safety photoelectric sensors at door base; auto-reverse function upon obstruction |
| Operating Speed | Opening: 0.6-2.5 m/s (adjustable) / Closing: 0.8-2.0 m/s (adjustable) |
| Door Curtain Material | French industrial polyester fiber with dual PVC coating (0.8mm thickness) |
| Wind Resistance | German DIN-standard high-strength aluminum alloy wind bars for up to 12 Beaufort resistance |
| Transparent Window | 1.2mm thick horizontal PVC strip for visibility during entry/exit |
| Sealing System | Weighted air-sealed bottom cloth + rubber side seals (insect/dust-proof) |
| Control Mode | Manual switch + radar motion sensor activation |
| Limit Switch | Precision travel locator for one-time positioning accuracy |
Application Scenarios
-

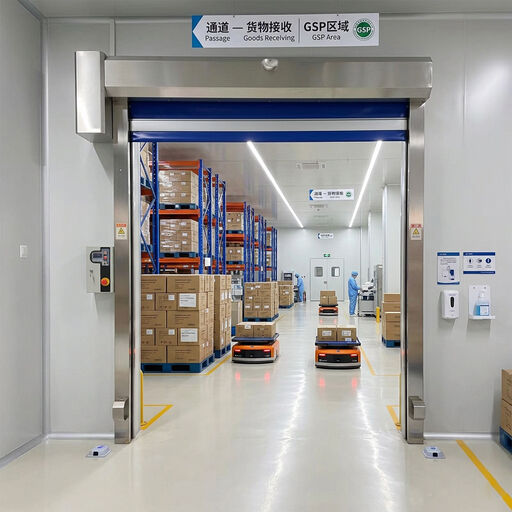

Pharmaceutical Sterile Corridors: Maintain ISO Class 5 air quality during material transfers (GMP Annex 1 compliant).
-
Mining Ore Processing Zones: Dustproof seals prevent abrasive particle damage to conveyor systems.
-
Automotive Battery Plants: Corrosion-resistant materials withstand lithium-ion electrolyte exposure.
-
Food Powder Packaging: Anti-static curtains inhibit flour/sugar dust explosions (ATEX Zone 22).
-
Smart Warehouses: IoT integration enables synchronized operation with AGVs and inventory drones.
Compliance & Certifications
-
Material fire resistance: DIN 75200
-
Safety sensors: ISO 13849-1 PLc
-
Operational temperature range: -30°C to +70°C
Notes
-
Customizable curtain colors per client-provided RAL samples.
-
Optional upgrades: Thermal insulation layers, RFID access integration.
FAQs
-
Can the door’s IoT system detect real-time performance issues like motor overload or seal wear?
Yes, embedded sensors monitor motor torque, curtain tension, and seal integrity, sending alerts via Modbus/TCP or cloud platforms for predictive maintenance. -
How does the dustproof design perform in high-particulate environments like cement plants?
Triple-layer brush seals and electrostatic dust-repellent curtains reduce particulate ingress by 98%, validated in ISO 14644-1 Class 8 environments. -
Is the door compatible with legacy facility systems lacking IoT infrastructure?
Absolutely. The hybrid control unit supports standalone manual operation while allowing future IoT upgrades via plug-and-play modules.
