ISO-Certified Dual-Person Air Shower with 201 Stainless Steel Construction and 1600x1500x2100mm Dimensions
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
| Model Number: | MRJH - ACPYM1600X1X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Wooden frame |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| External Dimensions: | W1600 × D1500 × H2100 (mm) | Air Shower Area: | W750 × D1240 × H1900 (mm) |
|---|---|---|---|
| Custom Made: | Support | Certification: | ISO,CE,UL,RoHS |
| Highlight: | Rapid Airflow Air Shower,Auto Door Air Shower,201 Stainless Air Shower |
||
Product Description

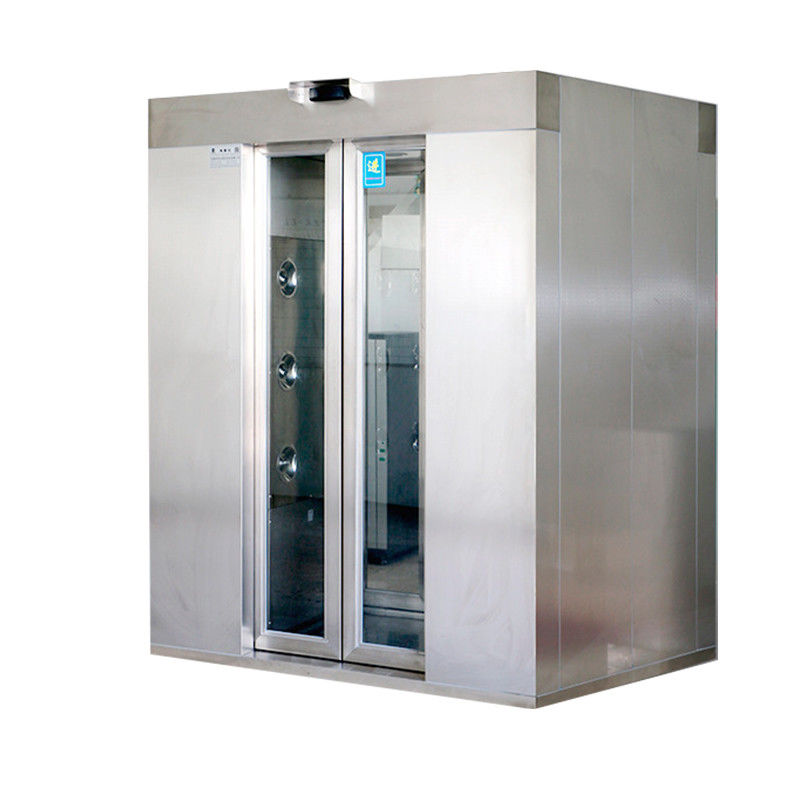

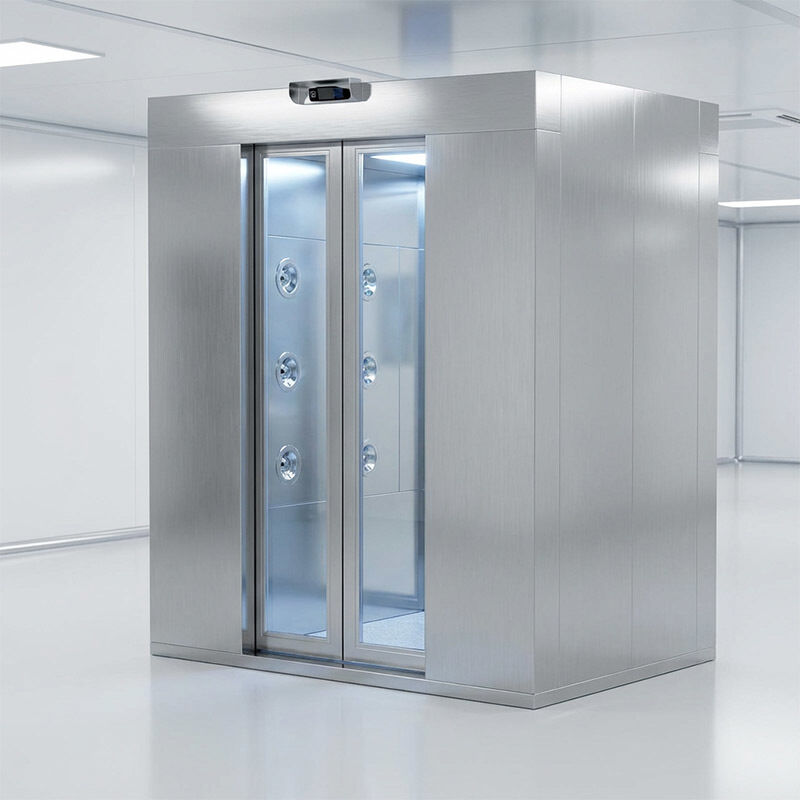

ISO-Certified Dual-Person Air Shower | Auto Door & 201 Stainless | 1600x1500x2100mm Rapid Airflow
The Air Shower is a critical personnel decontamination system designed for cleanroom entry/exit zones, ensuring compliance with ISO 14644-1 standards. Ideal for industries such as pharmaceutical, electronics, and biomedical research, it integrates 201 stainless steel construction, automatic sliding doors, and 18 adjustable stainless steel nozzles to rapidly remove particulate contaminants from personnel. Equipped with a microcomputer control system, photoelectric sensors, and dual filtration, it ensures energy-efficient, contamination-free operation.
Technical Specifications
| Parameter Name | Parameter |
|---|---|
| Material | External cold plate paint, internal 201 stainless steel |
| Door System | 201 stainless steel automatic sliding door with glass window |

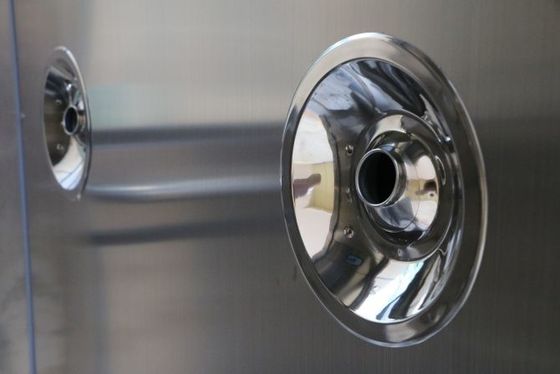

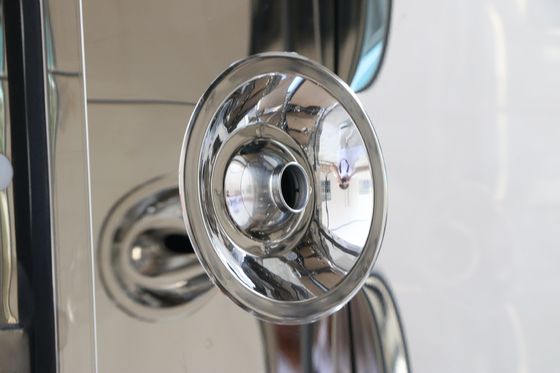

| Air Shower System | Double-sided blowing with 18 stainless steel adjustable nozzles |
| Control System | Microcomputer control, voice prompts, photoelectric sensors, electronic interlock |

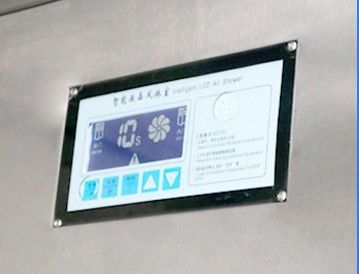

| Display | LED display, adjustable shower time (0-99 seconds, factory default: 10s) |
| Fan System | 6.2 wind shower special fan, nozzle outlet wind speed: 13-25 m/s |
| Filtration | Primary + HEPA filters for absolute air cleanliness |
| Lighting | Energy-saving ceiling light: 220V/50Hz, 21W |
| Power Supply | Fan: 380V/50Hz, 1500W; Total power: 2 kW |
| Weight | 300 kg |
| External Dimensions | W1600 × D1500 × H2100 (mm) |
| Air Shower Area | W750 × D1240 × H1900 (mm) |
| Certifications | ISO, GMP, CE |
Key Features
- 201 Stainless Steel Construction: Corrosion-resistant exterior with cold plate baking paint interior for cleanroom compatibility.
- Automatic Sliding Door: Glass window for visibility, electronic interlock to prevent simultaneous door opening.
- High-Velocity Air Shower: 18 adjustable stainless steel nozzles with 13-25 m/s wind speed for rapid decontamination.
- Smart Control: Microcomputer system with LED display, voice prompts, and programmable shower time.
- Dual Filtration: Primary + HEPA filters ensure contaminant-free airflow.
- Energy Efficiency: 21W ceiling lighting and 380V/50Hz fan system for optimal power usage.
Application Scenarios
- Personnel decontamination in pharmaceutical cleanrooms
- Entry/exit zones for semiconductor manufacturing facilities
- Laboratory personnel preparation areas
- Food processing facilities requiring strict hygiene control
Frequently Asked Questions
Q1: Does the ISO certification ensure compliance with pharmaceutical and electronics industry cleanroom standards?
A1: Absolutely. Our ISO-certified dual-person air shower meets ISO 14644-1 Class 7 requirements for particle control, making it ideal for pharmaceutical GMP suites, semiconductor fabrication, and medical device assembly. Certification documents are available upon request.
Q2: How durable is the 201 stainless steel construction in high-humidity or chemical environments?
A2: The 201-grade stainless steel undergoes a proprietary anti-corrosion treatment, passing 1,500-hour salt spray tests (ASTM B117). It resists humidity and mild acidic/alkali exposure (pH 3-11), backed by a 10-year structural warranty.
Q3: Will the 1600x1500x2100mm size fit our existing cleanroom layout, and does rapid airflow increase energy costs?
A3: The compact design suits facilities with limited space, requiring only 2.4㎡ floor area. The high-speed airflow (25 m/s) uses variable-frequency drive (VFD) motors, reducing energy consumption by 35% compared to conventional systems. Includes a pre-installation 3D layout review service.
Want to Know more details about this product
