Pharma Air Shower Room SUS304 Cleanroom Air Shower System For Food & Drinking
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Wooden packing(1240*1000*2100cm,263kg) |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Applicable Industries: | Electronics Factory | Showroom Location: | China |
|---|---|---|---|
| Video Outgoing-inspection: | Support | Machinery Test Report: | Support |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Voltage: | AC220V/3P/50Hz(Customized | Power: | 1800 |
| Dimension(L*W*H): | 1240*1000*2100 | Weight: | 263 KG |
| Warranty: | 2 Years | Product Name: | Air Shower Room |
| Material: | Powder Coated Steel / SUS304 | Overall Dimension: | 1240*1000*2100 |
| HEPA Filter: | 99.995%@0.3um | Wind Speed: | 13-25M/S |
| Power Supply: | 220/380v 50-60hz | Air Shower Time: | 0-99s Adjustable |
| After-sales Service Provided: | Online Support | Power: | 1500w |
| Delivery Time: | 15 Days | Official Website: | Www.ffu-cleanroom.com |
| Certification: | ISO,CE,UL,RoHS | ||
| Highlight: | Pharma Air Shower Room,SUS304 Air Shower Room,Cleanroom Air Shower |
||
Product Description
Product Description
|
Model No.
|
M-RFLS1000
|
|
M-RFLS2000
|
|
M-RFLS1500
|
|
||||
|
|
L*W'H(MM)(Picture 7)
|
|
L*W*H(MM)(Picture 8)
|
|
L*W*H(MM)(Picture 7)
|
|
||||
|
|
|
|
|
|
|
|
||||
|
External Size
|
1240*1000*2180
|
|
1240*2000*2180
|
|
1240*1500*2180
|
|
||||
|
Working Area Size
|
790*900*1950
|
|
790*1860*1950
|
|
790*1360*1950
|
|
||||
|
Cleanliness
|
99.995% @ 0.3um( Upon the environment)
|
|
|
|
99.995% @ 03um( Upon the environment)
|
|
||||
|
Control Mode
|
intelligent voice, electronic interlock, photoelectric induction
|
|
|
|
Intelligent voice, electronic interlock, photoelectric induction
|
|
||||
|
Nozzle QTY
|
12pcs
|
|
24pcs
|
|
12pcs
|
|
||||
|
NO.of People
|
1 person
|
|
1-2 person
|
|
1 person
|
|
||||
|
Mr Speed
|
13-25m/s
|
|
13-25m/s
|
|
13-25m/s
|
|
||||
|
Power
|
220V 50HZ
|
|
220V 50HZ
|
|
220V 50HZ
|
|
||||
|
Power Supply
|
1500W/unit
|
|
1500W/2 units
|
|
1500W/unit
|
|
||||
|
'A'arranty
|
3 Years
|
|
3 Years
|
|
3 Years
|
|
||||
|
Material
|
All Coated Cold-Rolled Steel Plate
|
Full SUS304
|
All Coated Cold-Rolled Steel Plate
|
Full SUS304
|
All Coated Cold-Rolled Steel Plate
|
Full SUS304
|
||||
Specifications:
1.The outer main structure is coated with cold-rolled steel panels, while the interior is crafted from SUS 304 stainless steel.

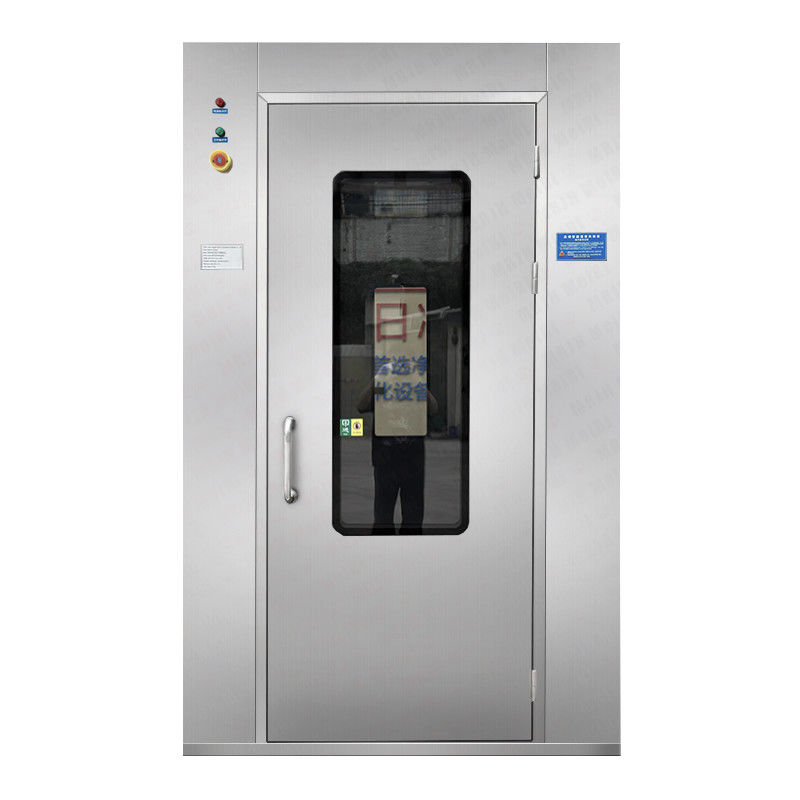

2.Deluxe double doors made of SUS 304 stainless steel, featuring glass observation windows.
3.Dual air impact system, equipped with a total of 12 adjustable stainless steel nozzles.
4.Circuitry system: Microcomputer-controlled system, voice guidance, photoelectric sensing. The two doors are electronically synchronized to prevent simultaneous opening.
5.LED display with adjustable blowing duration ranging from 0 to 99 seconds (initially set to 10 seconds at the factory).
6.The air shower room incorporates a dedicated fan, ensuring a wind speed of 13-25m/s at the air nozzle outlet.
7.Incorporates a primary efficiency filter and a high efficiency filter, achieving 99.99% HEPA efficiency at 0.5um.
8.The top section is equipped with an energy-saving lamp: 220V/50Hz, featuring a single 21W bulb. The fan power supply is 380V/50Hz, with a power rating of 1500W.
9.External Dimensions: Width 1240mm, Depth 1000mm, Height 2100mm. Internal Dimensions: Width 790mm, Depth 900mm, Height 1950mm
2.Deluxe double doors made of SUS 304 stainless steel, featuring glass observation windows.
3.Dual air impact system, equipped with a total of 12 adjustable stainless steel nozzles.
4.Circuitry system: Microcomputer-controlled system, voice guidance, photoelectric sensing. The two doors are electronically synchronized to prevent simultaneous opening.
5.LED display with adjustable blowing duration ranging from 0 to 99 seconds (initially set to 10 seconds at the factory).
6.The air shower room incorporates a dedicated fan, ensuring a wind speed of 13-25m/s at the air nozzle outlet.
7.Incorporates a primary efficiency filter and a high efficiency filter, achieving 99.99% HEPA efficiency at 0.5um.
8.The top section is equipped with an energy-saving lamp: 220V/50Hz, featuring a single 21W bulb. The fan power supply is 380V/50Hz, with a power rating of 1500W.
9.External Dimensions: Width 1240mm, Depth 1000mm, Height 2100mm. Internal Dimensions: Width 790mm, Depth 900mm, Height 1950mm
Recommended Products
Company Profile
Shenzhen Meiri Purification Technology Co., Ltd was established in 2012, is a professional engaged in the research, development, sale and service of air filters, air purification equipment and cleanroom solutions.
With state-of-the-art manufacturing processes and highly automated machinery for air purification equipment, MRJH possesses cutting-edge production capabilities to cater to the needs of large-scale projects. MRJH operates a dust-free production workshop dedicated to air filter manufacturing. We have established a modern quality management system that adheres strictly to international standards, including ISO. To date, our products and production technologies have been granted numerous national patents and attained international certifications such as CE, UL, ROHS, and REACH
Certifications
Exhibition
Production Line
Design Development
Prepares Materials
Processing
Assemble
Detection
Package
Product Package
FAQ
Q: What’s your sample and production lead time ? A: The lead time for sample takes around 3-7days, mass production lead time is about 2-3 weeks Q: How do you ship the goods ? A: It depends on customer’s demands . If with the full containers , we’d suggest to ship by vessel . If with small order volumes & urgent orders, we’ll suggest to ship by air freight or international couriers . Q: Where is your company located A: Our company & factory are located in Shenzhen , China ( No. 79, Langbei Viallage Industry Road , Tongde Commity , Baolong Stree , Longgang District, Shezhen City , Guangdong Province , China) Q:Can you arrange a visit to your factory? A:Yes,of course. Q:Can you provide customized products as our requirements? A:Yes,of course. Q:Do you test all your products before delivery? A:Yes,of course.We will do 100% test and provide test report before delivery Q:How long is your items delivery time? A:It is normal 10~30 days.Usually it depends on order size,quantity and configuration,etc. Q:What payment term can you accept?What price term can you accept? A:We can accept T/T,L/C,etc.We can accept EXW,FOB,CFR,CIF, DDU,etc. Q:What after-sale service can you provide? A:We can provide 24 hours' technical support online by e-mail,phone,video,etc. Q:How many countries have you exported to?How do you make long-term relationship and cooperation? A:We have exported to over 30 countries in Asia,Middle East,Africa,Europe,North America,South America,etc.We will offer good quality,service and price to ensure our customer satisfaction.We will consider our customer as our friend to help them to solve problems.
