Pharma-Grade Liquid Seal Laminar Flow Cabinet | ISO 5 Certified | H14 HEPA 99.999% Filtration
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
| Model Number: | Laminar flow hood |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
Product Description

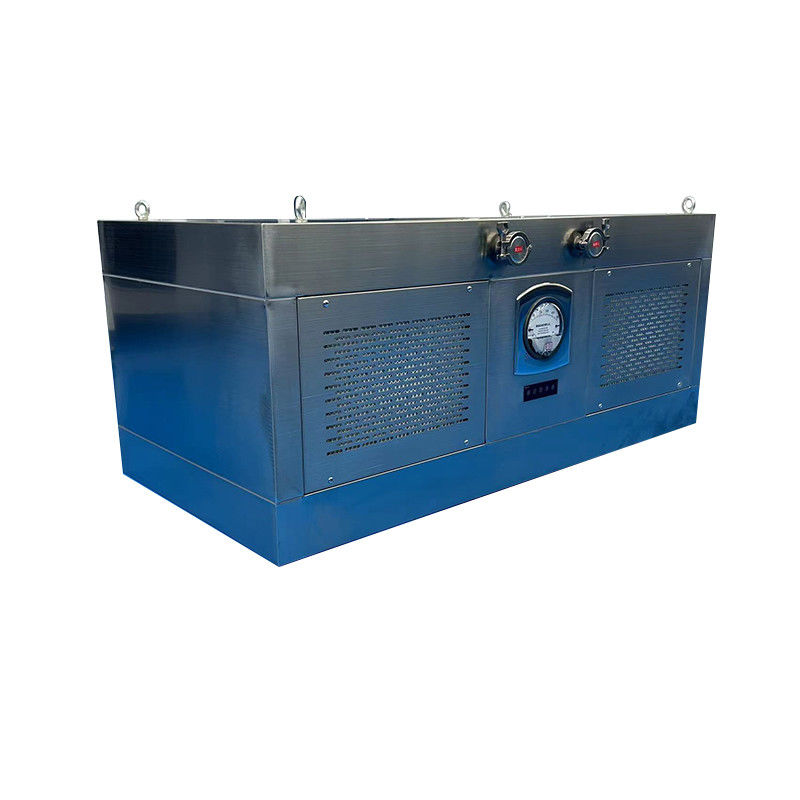

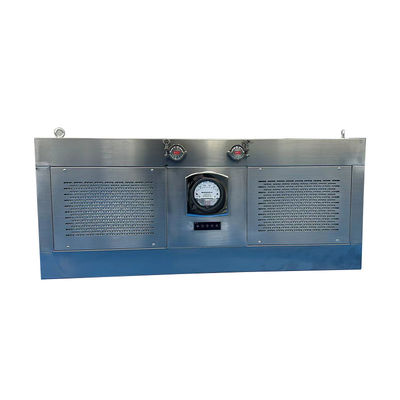

Pharma-Grade Liquid Seal Laminar Flow Cabinet | ISO 5 Certified | H14 HEPA 99.999% Filtration
Aseptic processing laminar flow cabinet featuring patented liquid-trough sealing technology and H14 HEPA filtration (99.999% @0.3μm). Validated for ISO 14644 Class 5 compliance.
| Parameter Name | Value |
|---|---|
| Main Body Material | Stainless steel 304# sandblasted plate, 1.0mm thickness |
| HEPA Filter Specifications | 1100+500×93mm H14 (99.9995% efficiency @0.3μm) |
| Fan Configuration | Aluminum alloy impeller low-noise fan, 200W 50Hz |

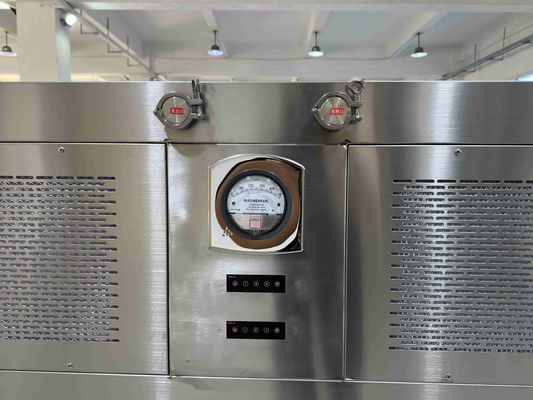

| Pressure Differential Monitor | Digital gauge 0-500Pa (±1% accuracy) |
| Detection Port | Integrated DOP test kit port |
| UV Sterilization | Optional 36W germicidal UV-C lamp (254nm wavelength) |
| Air Velocity | 0.45–0.75 m/s adjustable |
| Noise Level | ≤60 dB(A) at 1m distance |
| Control Interface | Touchscreen display with real-time monitoring |
Product Features
-
Absolute Containment Technology
-
Continuous ethanol liquid trough creates hermetic seal (no gasket degradation)
-
Maintains ISO 5 conditions during dynamic operations
-
Regulatory-Compliant Design
-
Pre-validated per EU GMP Annex 1 & FDA 21 CFR 210/211
-
Integrated DOP test ports for filter integrity verification
-
Smart Monitoring System
-
Real-time differential pressure tracking (0-500Pa)
-
Touchscreen with alarm thresholds for critical parameters
-
Decontamination Ready
-
316L stainless steel withstands VHP/SIP cycles
-
Optional UV-C system (40mJ/cm² dose)
-
Ergonomic Operation
-
55dB noise level for communication clarity
-
Glove-compatible control interface
Application Scenarios
1. Sterile Injectable Manufacturing
-
Maintains Grade A zone during vial filling/stoppering
-
Prevents microbial ingress in lyophilizer loading
2. ATMP Production
-
Protects cell therapies during media transfers
-
ESD-safe materials for sensitive biologics
3. Oncology Drug Handling
-
Containment verified per USP <800>
-
Liquid seal contains cytotoxic particulates
4. Vaccine Fill-Finish
-
Validated for live virus workflows
-
Withstands formaldehyde fogging decon
5. Implantable Device Packaging
-
Particle-free environment for Class III devices
-
Compatible with cleanroom robotics
Technical Validation
-
Filter Efficiency Testing
-
Certified via EN 1822-5:2009 MPPS method at 0.3μm
-
PAO/DOP challenge testing available upon request
-
-
Material Compliance
-
304 stainless steel meets ASTM A240/A480 standards
-
UV-C lamp output verified per FDA 21 CFR 1040.20
-
-
Operational Safety
-
Emergency stop function triggers immediate airflow reversal
-
Interlocked UV system deactivates upon door access
-
FAQs
1. How does liquid sealing outperform traditional gaskets in sterile processing?
The ethanol barrier eliminates compression fatigue and microbial harborage points, providing consistent containment through 10,000+ cycles (validated per ISO 14644-3).
2. What documentation supports regulatory submissions?
Includes IQ/OQ templates, material certifications (USP Class VI), and filter test reports per IEST-RP-CC034.3.
3. Can the system accommodate large component transfers?
Customizable work zones up to 1200mm width maintain ≤0.5% velocity deviation across entire surface.
