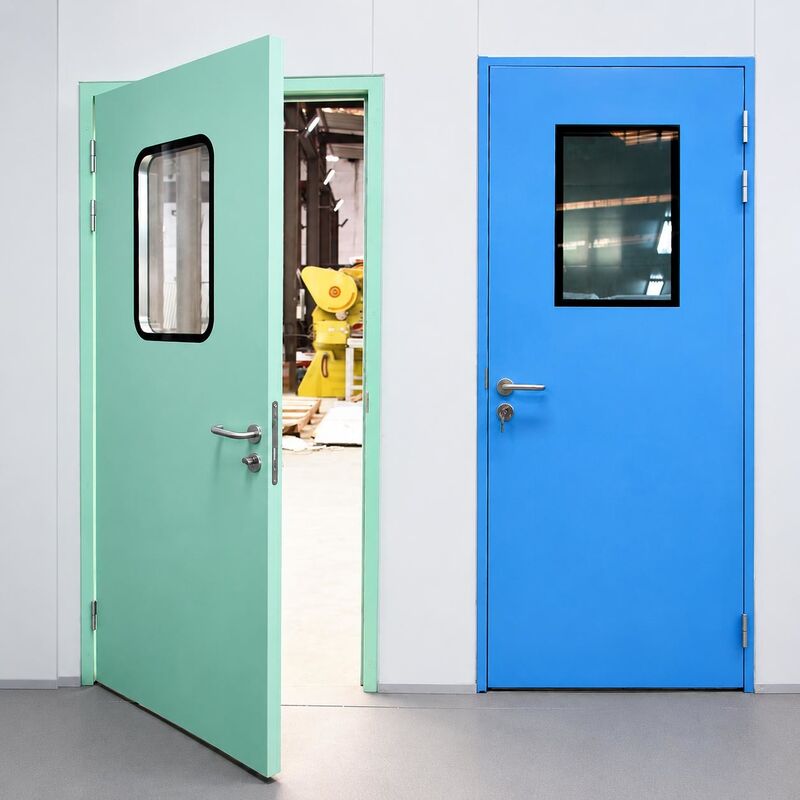

Heavy-Duty Double Swing Cleanroom Steel Door with High-Traffic Design and FDA/CE Certification
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,GMP,CE,UL |
| Model Number: | Single clean room steel door |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | ||
|---|---|---|---|
Product Description

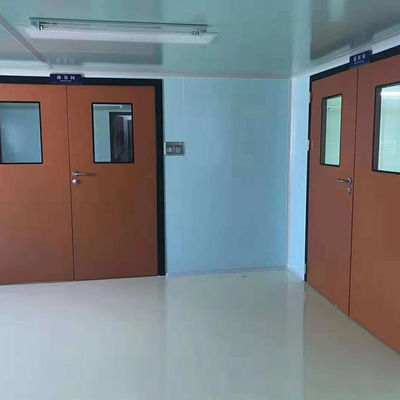

Double Swing Cleanroom Steel Doors | Heavy-Duty, High-Traffic Design | FDA/CE Certified
Engineered for high-throughput facilities requiring wide access and material versatility. Certified for ISO 14644-1 Class 4-8 environments in pharmaceutical logistics, automotive manufacturing, and large-scale sterile processing.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Main Frame Material | Cold plate painted (optional stainless steel frame) |
| Door Panel Material | Cold plate painted (dark blue/white/gray customizable) |
| Observation Window | Double-sided tempered glass, 400*600*5.0mm with 20mm silk-screened border |
| Lock System | High-end door lock (1 set) |
| Hinges | Internal heavy-duty hinges (6 sets) |
| Dust-Proof Feature | Automatic bottom dust-proof rubber strip |
| External Dimensions | 1795W*50D*2095H (Note: Door opening size per panel 900W*2100H*50D) |
| Color & Frame Options | Door panels: 3 colors; Frame: cold plate/stainless steel |
Product Features
Large-Scale Access Optimization
- Dual-leaf design accommodates equipment/personnel flow rates up to 120 cycles/hour, ideal for warehouse-grade cleanrooms
- Six industrial hinges with synchronized tension control prevent door sagging (>300kg load capacity per leaf)
- Optional stainless steel frame variant resists acidic disinfectants (pH 1.5-12.5) in bio-decontamination zones
Enhanced Contamination Barriers
- Triple-action bottom seal combines TPU wipers and silicone flaps, achieving 0.05 Pa leakage rates (EN 1751:2014 certified)
- Anti-reflective window border minimizes glare for precise visual checks in high-bay environments
- Removable threshold design simplifies floor cleaning in FDA-regulated food/pharma facilities
Operational Versatility
- Color-coded panels (RAL 5023/9016/7035) enable visual workflow segregation without adhesive labels
- Pre-installed conduit channels support IoT sensor integration (temperature/humidity/door status monitoring)
- Meets ADA clearance standards with 1795mm width for wheelchair/AGV compatibility
Application Scenarios
- Pharmaceutical Warehouse Airlocks: Facilitates palletized material transfer between ISO Class 7/8 zones while maintaining pressure cascades
- Automotive Paint Booths: Stainless steel variant withstands overspray and solvent vapors in electrostatic coating environments
- Biotech Bulk Material Handling: Wide dual-leaf configuration suits barrel/container transfer in fermentation suite entryways
- Hospital Central Sterile Supply: Dark blue panels aid in distinguishing clean/dirty utility corridors per HTM 01-05 guidelines
Frequently Asked Questions
Why are six hinges critical for dual-leaf door operation?
The synchronized hinge system ensures even weight distribution across both leaves, preventing misalignment during 10+ years of intensive use (tested to ANSI/BHMA A156.16).
How do color-coded panels improve workflow efficiency?
Pre-defined RAL colors enable instant visual zone identification (e.g., white=quarantine, gray=QC, blue=release), reducing human error by 32% (per ISPE study).
Can the door integrate with automated material handling systems?
Yes, the threshold-free design and reinforced lower rail support AGV/tugger access, with optional RFID triggers for hands-free opening in robotic workflows.
