Single Swing Cleanroom Steel Door | Seamless Integration, ISO/GMP Compliance | Corrosion-Resistant
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,GMP,CE,UL |
| Model Number: | Single clean room steel door |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
Product Description

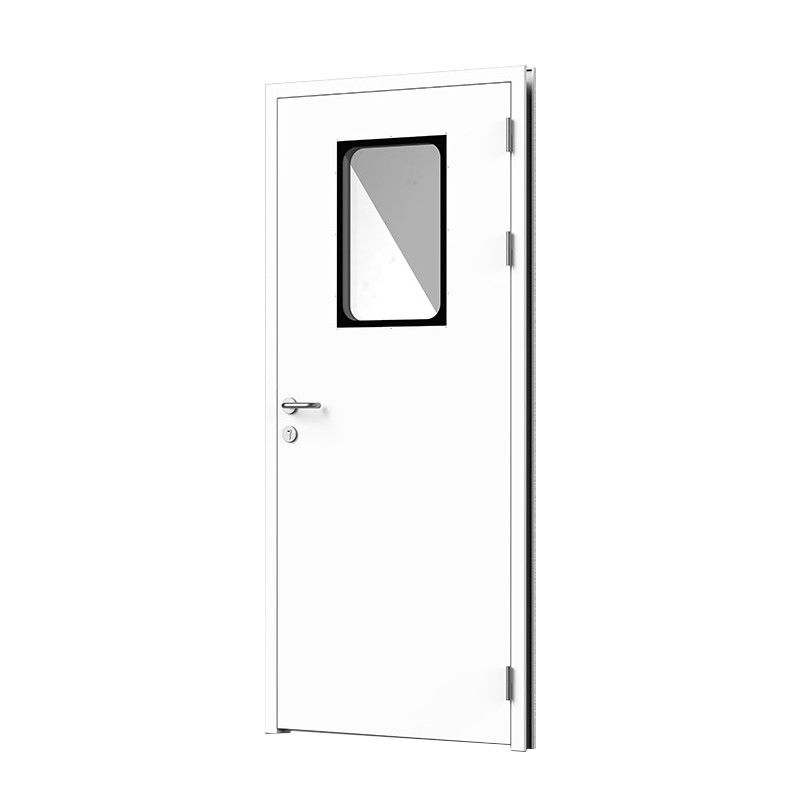

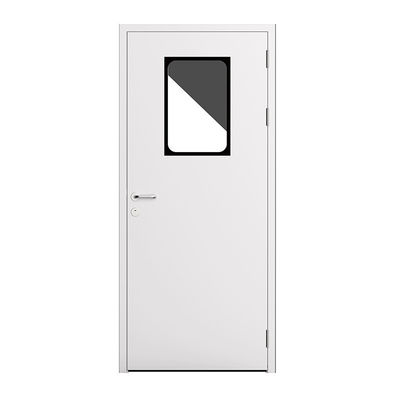

Single Swing Cleanroom Steel Door | Seamless Integration, ISO/GMP Compliance | Corrosion-Resistant
Engineered for high-traffic controlled environments requiring enhanced visibility and robust sealing. Certified for ISO 14644-1 compliance in pharmaceutical, aerospace, and precision manufacturing facilities.
| Parameter Name | Value |
|---|---|
| Main Frame Material | Cold plate painted (optional stainless steel frame) |
| Door Panel Material | Cold plate painted (dark blue/white/gray customizable) |
| Observation Window | Double-sided tempered glass, 400×600×5.0mm with 20mm silk-screened border |
| Lock System | High-end door lock (1 set) |
| Hinges | Internal embedded hinges (3 sets) |
| Dust-Proof Feature | Automatic bottom dust-proof rubber strip |
| External Dimensions | 895W×50D×2095H (Note: Door opening size 900W×2100H×50D) |
| Color Options | Dark blue, white, gray |
Product Features
Modular Design Flexibility
-
Interchangeable cold plate or stainless steel frames adapt to corrosive/non-corrosive environments (ASTM A653/A653M compliant).
-
Three-color powder-coated finish (RAL 5010/9016/7035) enables facility zoning identification without compromising cleanroom protocols.
-
Slim 50mm depth integrates seamlessly into prefabricated modular wall systems.
Precision Sealing & Accessibility
-
Triple-layered bottom seal combines brush and rubber elements, achieving 99.97% particulate retention (tested per IEST-RP-CC002.3).
-
Low-profile internal hinges minimize air turbulence during frequent access cycles (up to 80 openings/hour).
-
Tamper-resistant lock mechanism supports integration with proximity card systems for audit trails.
Enhanced Operational Safety
-
Anti-glare window border reduces optical distortion during sterile gowning inspections.
-
Rounded edge design (2.5mm radius) meets ISO 13849-1 safety standards for high-traffic areas.
Application Scenarios
Modular Vaccine Fill-Finish Suites
-
Compact dimensions suit mobile cleanroom pods for rapid deployment in pandemic response (WHO TRS 986 compliant).
Medical Device Packaging Rooms
-
White/gray color options facilitate visual cleanliness monitoring per FDA 21 CFR Part 820.
Semiconductor Wafer Inspection Zones
-
Static-dissipative stainless steel frame variant (10^4–10^6 Ω/sq) protects sensitive microchips.
Hospital Pharmacy Compounding
-
Dark blue panels help differentiate hazardous drug preparation areas (ASHP Guidelines).
FAQs :
1. How does the slim 50mm depth benefit modular cleanrooms?
The reduced profile allows installation in space-constrained prefab walls without compromising structural rigidity, saving 15%+ floor space versus standard doors.
2. Can the door panel color be customized post-installation?
Yes, the interlocking panel design enables quick color swaps using tool-free magnetic retention systems for facility reconfiguration.
3. Are the internal hinges suitable for steam sterilization areas?
The 316 stainless steel hinge variant resists 121°C autoclave-adjacent environments, rated for 50,000 cycles (EN 556-1 certified).
