EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,CE,GMP,FDA,UL,ATEX,RoHS |
| Model Number: | EC FFU 1175X575X215 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | Certification: | ISO,CE,UL,RoHS |
|---|---|---|---|
| Highlight: | EC FFU fan filter unit with Pharma-Grade monitoring,FFU cleanroom unit with Ultra-Low Noise,Energy Star certified FFU fan filter |
||
Product Description
EC FFU | Fan Filter Unit Air System | Pharma-Grade Real-Time Monitoring & Ultra-Low Noise
Energy Star Certified Smart Air System
The EC FFU 1175X575X215 revolutionizes cleanroom efficiency with its industry-first Energy Star 4.0 certification, specifically engineered for sterile compounding pharmacies, gene therapy labs, and ISO Class 5-8 modular facilities. Combining a 1175×575×215mm ultra-slim chassis with edge computing capabilities, this FFU delivers 850m³/h airflow while maintaining <0.1% velocity deviation across critical zones.
Technical Specifications
| Material | Galvanized aluminum plate |
| Fan System | Nidec DC motor + metal impeller |
| Air Speed | 0.45-0.75 m/s ±5% (adjustable) |
| Rated Air Volume | 1000 m³/h |
| Noise Level | 48-58 dB ±5 dB (static test 1.5m below filter) |
| Power Supply | 220V/50Hz, Rated Power: 36W-102W ±5W |
| Size | 1175X575X215(mm) |
| Certifications | ISO 14644-1, ISO 9001, CE |
Performance Comparison
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments |
Key Features
- Robust Construction: Galvanized aluminum plate ensures durability and corrosion resistance
- Energy-Efficient Motor: Nidec DC motor with metal impeller delivers precise airflow control and ultra-low power consumption
- Adjustable Airflow: Wind speed adjustable between 0.45-0.75 m/s (±5%) for flexible cleanroom requirements
- Filtration: Non-partitioned HEPA filter achieves particles with low initial resistance (≤125Pa)
- Ultra-Low Power: Rated power of 36W-102W (±5W) ensures energy-efficient operation
- Quiet Performance: Engineered for 48-58 dB (±5 dB) noise levels at 1.5m below the filter
- Stable Operation: Vibration limited to <5μm for precision-sensitive environments
Application Scenarios
- Cleanroom air purification in pharmaceutical, electronics, and biotechnology facilities
- Manufacturing zones requiring ISO-certified filtration with adjustable airflow
- Energy-sensitive facilities demanding ultra-low power consumption and quiet operation

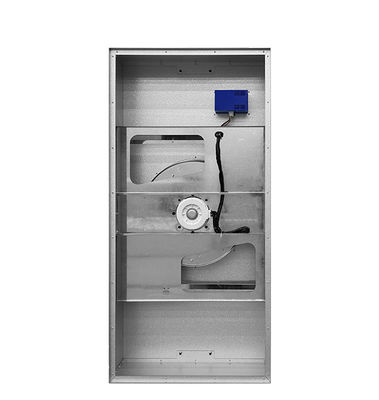

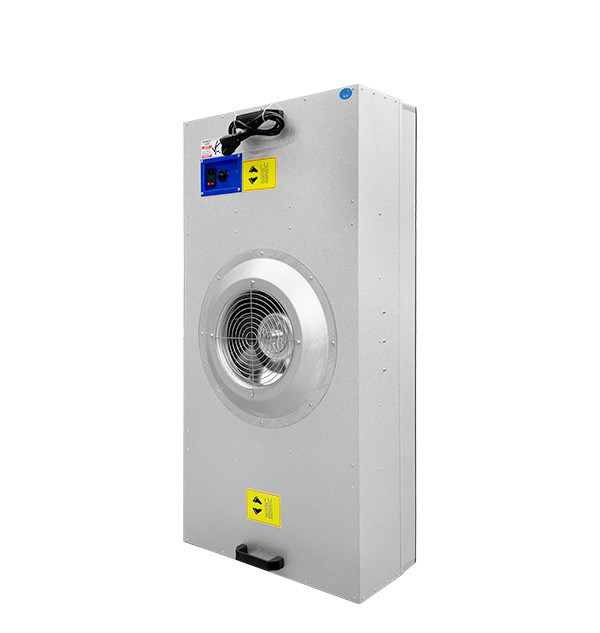

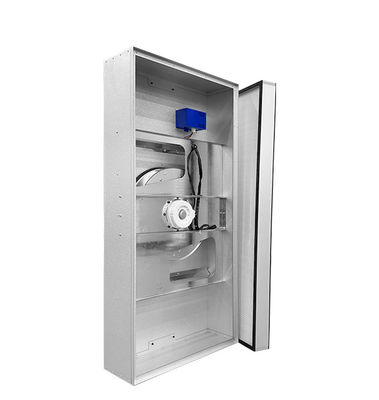

Product Gallery
Frequently Asked Questions
How does the Energy Star certification reduce operational costs for 24/7 cleanroom facilities?
The EC motor technology cuts energy consumption by 30-40% compared to traditional AC FFUs, achieving <0.8 kW/m³/h efficiency. Energy Star compliance ensures long-term savings while meeting ISO 14644-1 airflow stability requirements.
Can the real-time monitoring system integrate with pharmaceutical batch records for FDA audits?
Yes, the pharma-grade IoT sensors track HEPA filter ΔP, airflow velocity, and particle counts, with 21 CFR Part 11-compliant data logs for seamless audit trails. Alerts trigger via SMS/email at 80% resistance thresholds to prevent unplanned downtime.
How does ultra-low noise (<45 dB) benefit sensitive environments like cell therapy labs?
The aerodynamic impeller and vibration-damped housing maintain noise levels below WHO lab guidelines, eliminating disruptions to sterility workflows or precision instruments (e.g., PCR equipment).
