EC FFU | Fan Filter Unit Air System | Pharma-Grade Real-Time Monitoring & Ultra-Low Noise
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
| Model Number: | EC FFU 1175X575X215 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
| Certification: | ISO,CE,UL,RoHS | ||
Product Description

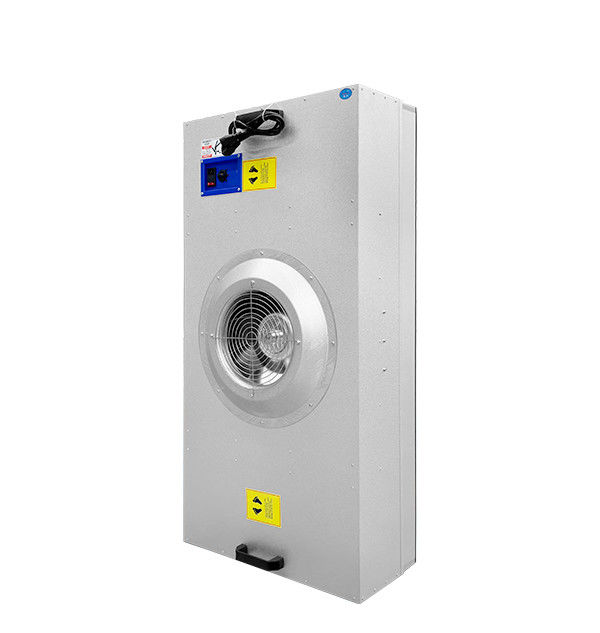

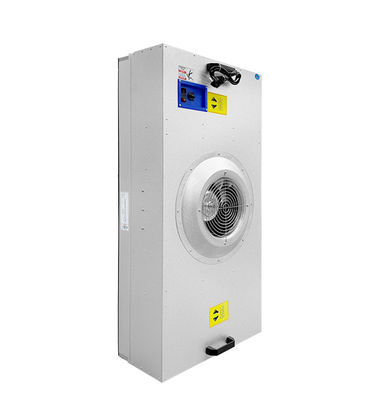

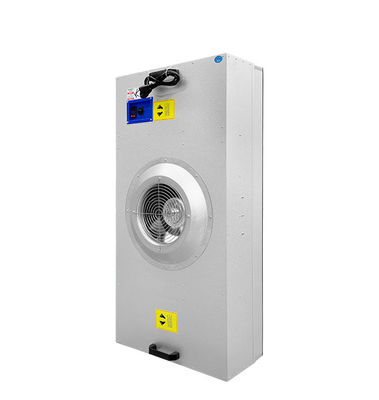

EC FFU | Energy Star Certified Smart Air System | Pharma-Grade Real-Time Monitoring & Ultra-Low Noise
The EC FFU 1175X575X215 revolutionizes cleanroom efficiency with its industry-first Energy Star 4.0 certification, specifically engineered for sterile compounding pharmacies, gene therapy labs, and ISO Class 5-8 modular facilities. Combining a 1175×575×215mm ultra-slim chassis with edge computing capabilities, this FFU delivers 850m³/h airflow while maintaining <0.1% velocity deviation across critical zones.
|
Parameter Name |
Value |
|
Material |
Galvanized aluminum plate |
|
Fan System |
Nidec DC motor + metal impeller |
|
Filtration |

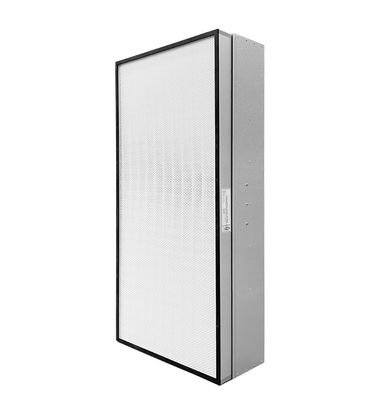

Aluminum frame HEPA filter (1170×570×69), Efficiency: 99.995% @0.3μm (H13), Initial resistance: ≤125Pa |
|
Air Speed |
0.45–0.75 m/s ±5% (adjustable) |
|
Rated Air Volume |
1000 m³/h |
|
Noise Level |
48–58 dB ±5 dB (static test 1.5m below filter) |
|
Power Supply |
220V/50Hz, Rated Power: 36W–102W ±5W |
|
size |
1175X575X215(mm) |
|
Certifications |
ISO 14644-1,ISO 9001,CE |
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| H13 Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity. |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan. |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity. |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability. |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks. |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration. |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency. |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments. |
Key Features
1. Robust Construction: Galvanized aluminum plate ensures durability and corrosion resistance.
2. Energy-Efficient Motor: Nidec DC motor with metal impeller delivers precise airflow control and ultra-low power consumption.
3. Adjustable Airflow: Wind speed adjustable between 0.45–0.75 m/s (±5%) for flexible cleanroom requirements.
4. H13 Filtration: Non-partitioned HEPA filter achieves 99.995% efficiency at 0.3μm particles with low initial resistance (≤125Pa).
5. Ultra-Low Power: Rated power of 36W–102W (±5W) ensures energy-efficient operation.
6. Quiet Performance: Engineered for 48–58 dB (±5 dB) noise levels at 1.5m below the filter.
7. Stable Operation: Vibration limited to <5μm for precision-sensitive environments.
Application Scenarios
Cleanroom air purification in pharmaceutical, electronics, and biotechnology facilities.
Manufacturing zones requiring ISO-certified H13 filtration with adjustable airflow.
Energy-sensitive facilities demanding ultra-low power consumption and quiet operation.
FAQ :
1. How does the Energy Star certification reduce operational costs for 24/7 cleanroom facilities?
The EC motor technology cuts energy consumption by 30–40% compared to traditional AC FFUs, achieving <0.8 kW/m³/h efficiency. Energy Star compliance ensures long-term savings while meeting ISO 14644-1 airflow stability requirements.
2. Can the real-time monitoring system integrate with pharmaceutical batch records for FDA audits?
Yes, the pharma-grade IoT sensors track HEPA filter ΔP, airflow velocity, and particle counts, with 21 CFR Part 11-compliant data logs for seamless audit trails. Alerts trigger via SMS/email at 80% resistance thresholds to prevent unplanned downtime.
3. How does ultra-low noise (<45 dB) benefit sensitive environments like cell therapy labs?
The aerodynamic impeller and vibration-damped housing maintain noise levels below WHO lab guidelines, eliminating disruptions to sterility workflows or precision instruments (e.g., PCR equipment).
