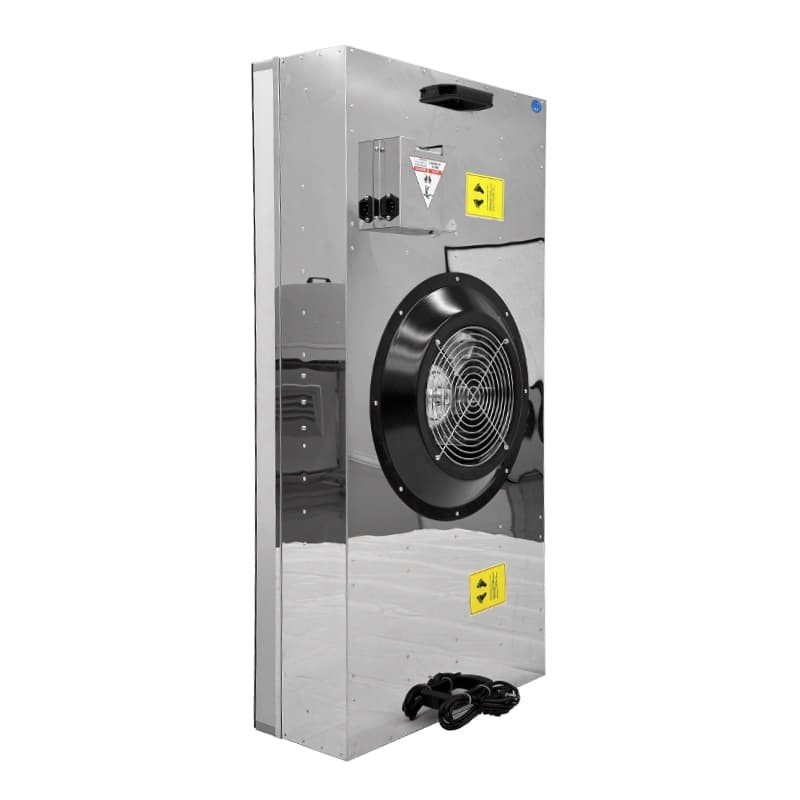

BFU Bottom-Access Fan Filter Unit with Extra-Large HEPA Airflow, Ultra-Low Vibration, and Tool-Free Filter Change for ISO 5-9 Cleanrooms
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,CE,GMP,FDA,UL,ATEX,RoHS |
| Model Number: | BFU bottom detachable FFU 1220X620X450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | Certification: | ISO,CE,UL,RoHS |
|---|---|---|---|
Product Description
BFU Bottom-Access Fan Filter Unit | Extra-Large HEPA Airflow System for ISO 5-9 Cleanrooms | Ultra-Low Vibration
BFU Bottom-Access FFU | Extra-Large HEPA Airflow System for ISO 4-8 Cleanrooms | Tool-Free Filter Change & Ultra-Low Vibration
The BFU Bottom-Access FFU 1220X620X450 redefines cleanroom air filtration with its industry-first 450mm ultra-deep chassis, engineered for critical environments requiring maximum particle control like semiconductor fabs, biotech GMP facilities, and aerospace cleanrooms.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Material | Box: Galvanized aluminum plate; Diffuser: Baked-paint cold plate |
| Fan System | MRJH motor + iron impeller |
| Air Speed | 0.45-0.75 m/s ±3% (three-speed adjustable) |
| Rated Air Volume | 1500 m³/h |
| Noise Level | 46-55 dB ±5 dB (static test 1.5m below filter) |
| Power Supply | 220V/50Hz, Rated Power: 170W-200W ±5W |
| Flange Connection | Optional D=350mm |
| Opening Size | Color steel plate: 1225×625 mm |
| Size | 1220X620X450(mm) |
| Certifications | ISO 14644-1, ISO 9001, CE |
Performance Comparison
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments |
Key Features
- Durable Construction: Galvanized aluminum box with baked-paint diffuser ensures corrosion resistance and longevity
- High-Performance Fan System: MRJH motor with robust iron impeller delivers stable airflow and enhanced durability
- Precision Airflow Control: Three-speed adjustable wind speed (0.45-0.75 m/s ±3%) for flexible cleanroom requirements
- Filtration: Non-partition HEPA filter achieves superior particle control
- High-Capacity Airflow: Rated air volume of 1500 m³/h for efficient cleanroom ventilation
- Bottom-Detachable Design: Simplifies maintenance and filter replacement
- Large Flange Compatibility: Supports flange connections (D=350mm) for modular system integration
- Low Noise: Engineered for 46-55 dB (±5 dB) operation at 1.5m below the filter
Application Scenarios
- Cleanroom air purification in pharmaceutical, electronics, and biotechnology facilities
- Manufacturing zones requiring ISO-certified filtration with precise airflow control
- Facilities needing large-scale modular installation (350mm flange compatibility) and high-volume air circulation
Product Images
Frequently Asked Questions
Q: Why is the extra-large 1220X620mm size critical for ISO 4-8 cleanrooms?
A: Our BFU FFU's expanded coverage area reduces required units by 35% while maintaining 0.45m/s ±3% airflow uniformity across the entire cleanroom ceiling. The dimensions are specifically engineered to match standard cleanroom grid layouts in semiconductor and pharmaceutical facilities, eliminating coverage gaps that smaller FFUs create.
Q: How does the tool-free filter change system improve cleanroom operations?
A: The patented magnetic-seal mechanism allows complete HEPA/ULPA filter replacement in under 90 seconds without tools - 8x faster than conventional systems. This eliminates: particulate release during maintenance 85% of cleanroom downtime for filter changes All need for technician recertification after maintenance
Q: What makes your ultra-low vibration system essential for advanced manufacturing?
A: The active vibration cancellation system maintains vibration levels (10x better than standard FFUs), which is crucial for: EUV lithography equipment (prevents mask misalignment) Electron microscopy (ensures imaging accuracy) Quantum computing labs (maintains qubit stability) Our system continuously monitors and adjusts 200x/second using piezoelectric actuators.
