BFU Bottom-Access FFU| Easy-Maintenance HEPA System for Hospital ORs & Microelectronics Labs | Compact & Vibration-Free Design
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,CE,GMP,FDA,UL,ATEX,RoHS |
| Model Number: | BFU bottom detachable FFU 620X620X350 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
| Certification: | ISO,CE,UL,RoHS | ||
Product Description
BFU Bottom-Access FFU| Easy-Maintenance HEPA System for Hospital ORs & Microelectronics Labs | Compact & Vibration-Free Design

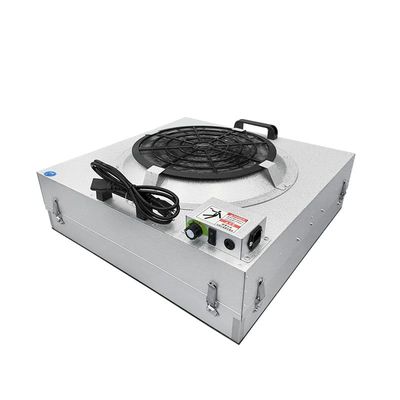

The BFU Bottom-Access FFU 620X620X350 revolutionizes cleanroom maintenance with its ground-breaking bottom-access panel design, specifically engineered for high-frequency filter replacement environments like hospital operating rooms, microelectronics assembly lines, and ISO Class 4-6 clean zones. Its 620x620x350mm compact footprint integrates seamlessly into space-constrained ceilings while delivering 360 m³/h airflow with ultra-low turbulence.
|
Parameter Name |
Value |
|
Material |
Box: Galvanized aluminum plate; Diffuser: Baked-paint cold plate |
|
Fan System |
MRJH® motor + metal impeller |
|
Filtration |
Aluminum frame HEPA filter (570×570×69), Efficiency: 99.99% @0.3μm (H13) |
|
Air Speed |
0.45–0.75 m/s ±3% (three-speed adjustable) |
|
Noise Level |
46–55 dB ±5 dB (static test 1.5m below filter) |
|
Power Supply |
220V/50Hz, Rated Power: 150W–190W ±5W |
|
Vibration |
≤5μm peak |
|
Flange Connection |
Optional D=25mm |
|
Opening Size |
Color steel plate: 625×625 mm |
|
size |
1175X1175X215(mm) |
|
Certifications |
ISO 14644-1,ISO 9001,CE |
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| H13 Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity. |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan. |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity. |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability. |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks. |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration. |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency. |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments. |
Key Features
1. Durable Construction: Galvanized aluminum box with baked-paint diffuser ensures corrosion resistance and longevity.

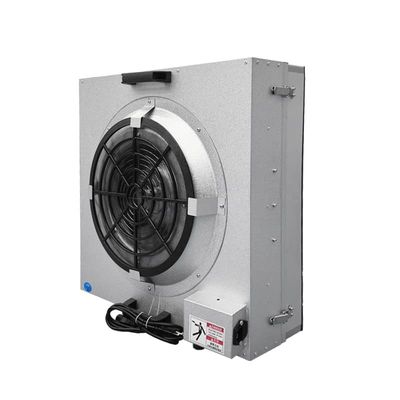

2. Efficient Fan System: MRJH® motor paired with a metal impeller delivers stable airflow and ultra-low noise.
3. Precision Airflow Control: Three-speed adjustable wind speed (0.45–0.75 m/s ±3%) for flexible cleanroom requirements.
4. H13 Filtration: Non-partition HEPA filter achieves 99.99% efficiency at 0.3μm particles.

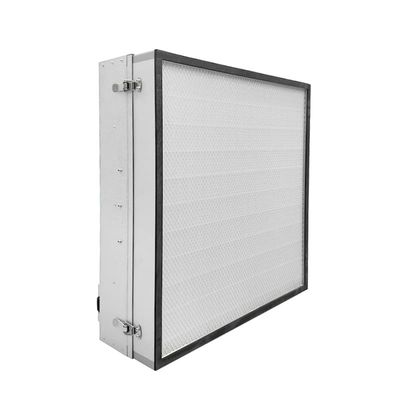

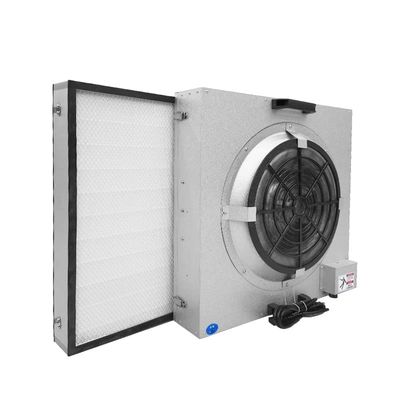

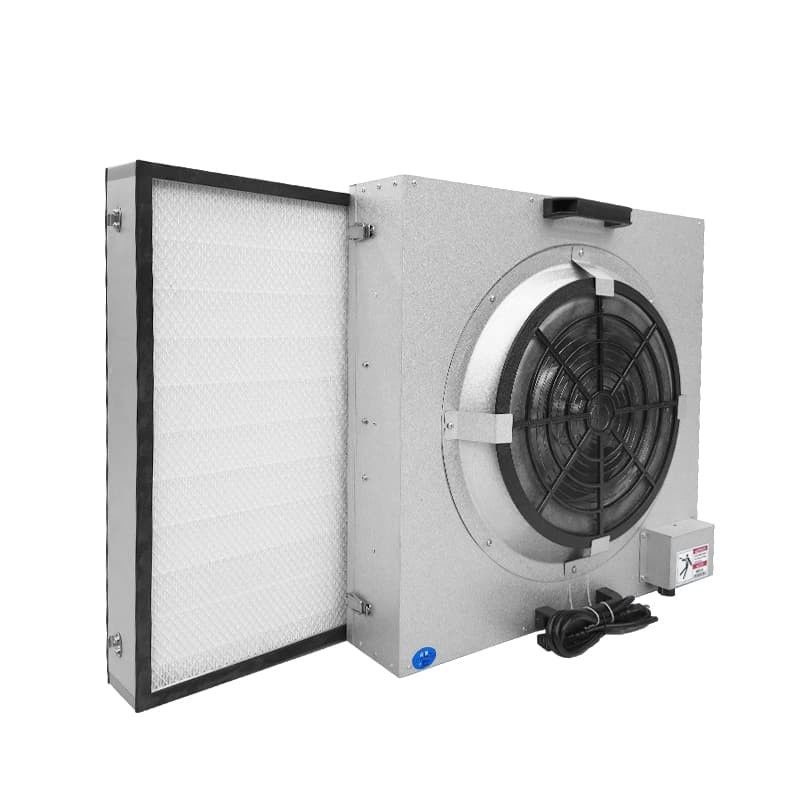

5. Bottom-Detachable Design: Simplifies maintenance and filter replacement.
6. Optional Connectivity: Supports flange connections (D=25mm) and group control modules for system integration.
7. Low Noise: Engineered for 46–55 dB (±5 dB) operation at 1.5m below the filter.
Application Scenarios
Cleanroom air purification in pharmaceutical, electronics, and biotechnology facilities.
Manufacturing zones requiring ISO-certified H13 filtration with precise airflow control.
Facilities needing modular installation (flange compatibility) and easy maintenance.
FAQ :
1. How does the bottom-access design simplify HEPA filter maintenance in sterile environments like ORs?
The tool-free, bottom-loading mechanism allows single-person filter replacement without dismantling the unit or disrupting laminar airflow – critical for maintaining ISO Class 5 conditions during surgeries or microelectronics production.
2. What makes this FFU suitable for vibration-sensitive applications like semiconductor metrology?
Featuring a brushless DC motor with G2.5 dynamic balance and <3µm vibration levels, it eliminates interference with sensitive equipment (e.g., electron microscopes or lithography tools) while operating at <50dB.
3. Can the compact 575x575x250mm frame integrate with existing cleanroom grids?
Yes, it supports:
Drop-in installation for standard 2'x2' T-bar ceilings
Flange-less sealing to prevent particle leakage
Optional 1200x600mm adapters for ISO 14644-1 recertification
