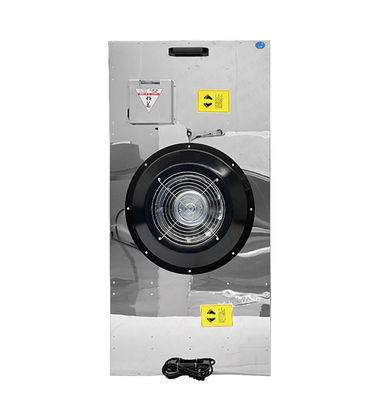

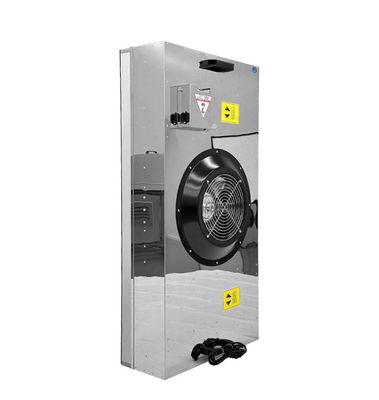

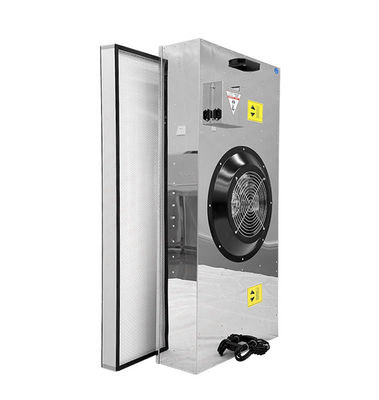

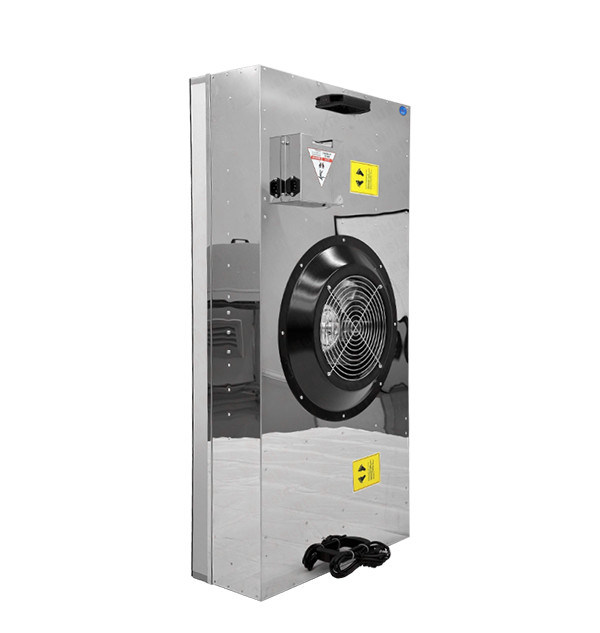

Stainless Steel / Zinc Alloy Fan Filter Unit FFU with HEPA Filter and Customizable Airflow Patterns
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,CE,GMP,FDA,UL,ATEX,RoHS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 working days |
| Supply Ability: | 1000000 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other |
|---|---|---|---|
| Weight (KG): | 26 | Showroom Location: | China |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 5 Years |
| Core Components: | Motor | Warranty: | 2 Years |
| Product Name: | Fan Filter Unit Hepa 110v Laminar | Size: | W1175*L575*H215mm Or Custom |
| Weight: | 26kg | Power (Output): | 150-190W±5W |
| Material: | Stainless Steel (201SS / 304SS) / Zinc Alloy Or Custom | Construction: | Panel Filter |
| Noise: | 52-58db±5db | HEPA Air Speed: | 0.45-0.75m/s Or Custom |
| Voltage: | AC/DC 220V/120V/110V, 50Hz Or Custom | Port: | ShenZhen Port, Acording To Customer Requirements |
| Certification: | ISO,CE,UL,RoHS | ||
| Highlight: | FFU Clean Room Stainless Steel,Zinc Alloy FFU Clean Room |
||
Product Description
Laminar Fan Filter Unit with HEPA, 110V - Designed for high-efficiency air filtration in clean room environments with customizable specifications and superior construction quality.
| Parameter | Specification |
|---|---|
| Product Name | Laminar Fan Filter Unit with HEPA, 110V |
| Size | W1175*L575*H215mm or custom |
| Weight | 26kg |
| Power (Output) | 150-190W±5W |
| Material | Stainless steel (201SS / 304SS) / Zinc Alloy or custom |
| MOQ | 1pc |
| Customizable | Yes |
| Warranty of core components | 5 years (Enclosed motor) |
| Warranty | 2 years |
| Construction | Panel Filter |
| Porosity | 0.3micron |
| Brand Name | MRJH |
| Noise | 52-58db±5db |
| HEPA Air Speed | 0.45-0.75m/s or custom |
| Voltage | AC/DC 220V/120V/110V, 50Hz or custom |
| Applications | Clean Rooms, Dust-free Production Workshops, Pharmaceutical Companies, Modernization Plants, Automated Manufacturing Factories, Laboratories, Mycology, Hotels, etc. |
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments |
Fan filter unit is applicable for Class 10-100000 dust-free workshops, which is convenient for the overall use of group control system.
FFU is also applicable for manufacturer-class optical, biological industries of semiconductors, electronics, flat panel displays and disk drives, and other areas with strictly control requirements for air pollution.
- Dual fans (customizable)
- Thickened aluminum and zinc-plated versions available
- High-quality sockets, customizable based on requirements
- Glass Fiber Cartridge filter for high-efficiency filtration
- Maintenance board for walking on the FFU to prevent damage to the fan runner
- Insulated handle for easy use
- Various blower options including EBM and NIDEC CORPORATION
- Existing and customized products available for fast delivery
Shenzhen Meiri Purification Technology Co., Ltd, founded in 2012, specializes in the research, development, sales, and service of air filters, air purification equipment, and cleanroom solutions. Our clean production hall is equipped with air filters, 2 AMABA automatic CNC presses, 5 automatic CNC bending machines, 5 shearing machines, and other bending machines and laser engraving machines. With advanced air purification equipment production and processing capabilities, as well as highly automated machine lines, our products and production technology have obtained numerous national patents and international certifications such as CE, UL, ROHS, and REACH. We have successfully met the production requirements of large-scale projects.
- High-quality sheet metal with beautiful and durable surface
- One-piece injection-molded motor for low noise, anti-static, waterproof, low temperature, and leakage resistance
- High quality liquid tank sealing filter - More efficient in isolating contaminated air
- High quality sealant that doesn't stick to knife edge during filter replacement
- High efficiency filtration to safeguard air quality
Has built a modern quality management system which is in strict accordance with international standards such as ISO9001, ISO14001. Till now our products and production technology have obtained dozens of national patents and international certification such as CE, UL, RoHS, REACH. Certificate can be verified, welcome to the factory field visit.
