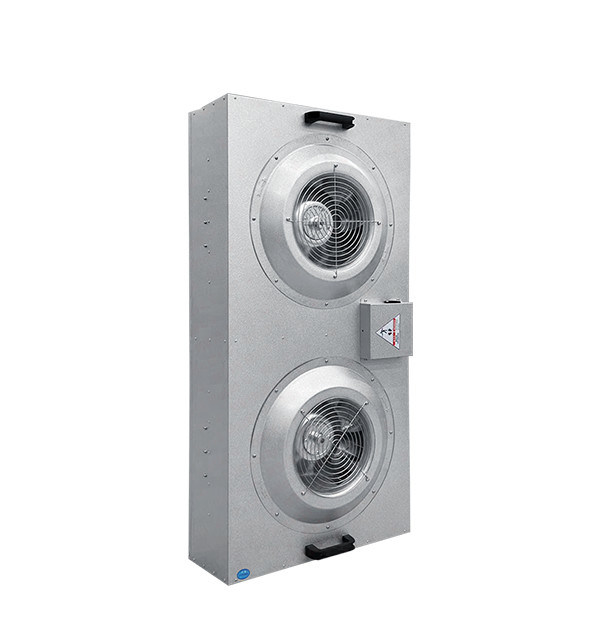

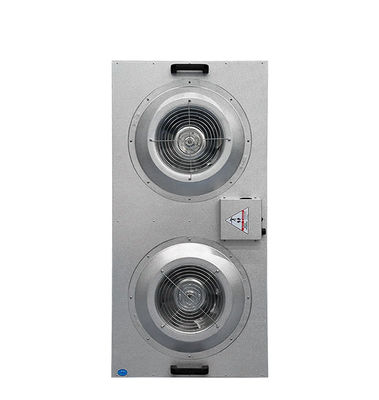

Medical FFU Cleanroom Fan Filter Unit with HEPA Filter 110V Laminar Flow Stainless Steel Construction
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,CE,GMP,FDA,UL,ATEX,RoHS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 working days |
| Supply Ability: | 1000000 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other |
|---|---|---|---|
| Weight (KG): | 26KG | Showroom Location: | China |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 5 Years |
| Core Components: | Motor | Warranty: | 2 Years |
| Product Name: | Fan Filter Unit Hepa 110v Laminar | Size: | W1175*L575*H215mm Or Custom |
| Weight: | 26kg | Power (Output): | 150-190W±5W |
| Material: | Stainless Steel (201SS / 304SS) / Zinc Alloy Or Custom | Construction: | Panel Filter |
| Noise: | 52-58db±5db | HEPA Air Speed: | 0.45-0.75m/s Or Custom |
| Voltage: | AC/DC 220V/120V/110V, 50Hz Or Custom | Port: | ShenZhen Port, Acording To Customer Requirements |
| Certification: | ISO,CE,UL,RoHS | ||
| Highlight: | FFU Cleanroom 110V,Laminar FFU Cleanroom |
||
Product Description
Fan Filter Unit with HEPA Filter - 110V Laminar Flow construction designed for critical cleanroom environments requiring superior air filtration and contamination control.
| Specification | Details |
|---|---|
| Product Name | Fan Filter Unit with HEPA Filter - 110V Laminar Flow |
| Size | W1175 × L575 × H215mm or custom |
| Weight | 26kg |
| Power (Output) | 150-190W ±5W |
| Material | Stainless steel (201SS / 304SS) / Zinc Alloy or custom |
| MOQ | 1pc |
| Customizable | Yes |
| Warranty of core components | 5 years (Enclosed motor) |
| Warranty | 2 years |
| Construction | Panel Filter |
| Brand Name | MRJH |
| Noise | 52-58db ±5db |
| HEPA Air Speed | 0.45-0.75m/s or custom |
| Voltage | AC/DC 220V/120V/110V, 50Hz or customizable |
Electronics and semiconductor manufacturing, Pharmaceutical industry and medical equipment, optics and precision instruments, food processing and packaging, laboratories and research institutions, hospitals and health facilities, aerospace, chemical, coating, textile, mining and other industries.
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments |
High quality sockets
Walking directions with maintenance board for fan runner protection
Insulated Handle for easy use
Aluminum Impeller
PP Impeller
Iron Impeller
Blower selection with various materials and multiple brand choices
Customized Solutions Available
Fast Delivery Service
A: The lead time for sample takes around 3-7 days, mass production lead time is about 2-3 weeks.
A: It depends on customer's demands. If with the full containers, we'd suggest to ship by vessel. If with small order volumes & urgent orders, we'll suggest to ship by air freight or international couriers.
A: Our company & factory are located in Shenzhen, China (No. 79, Langbei Village Industry Road, Tongde Community, Baolong Street, Longgang District, Shenzhen City, Guangdong Province, China).
A: Yes, of course.
A: Yes, of course. We will do 100% test and provide test report before delivery.
A: It is normal 10~30 days. Usually it depends on order size, quantity and configuration, etc.
A: We can accept T/T, L/C, etc. We can accept EXW, FOB, CFR, CIF, DDU, etc.
A: We have exported to over 30 countries in Asia, Middle East, Africa, Europe, North America, South America, etc. We will offer good quality, service and price to ensure our customer satisfaction. We will consider our customer as our friend to help them to solve problems.
Welcome to visit our factory - Shenzhen Meiri Purification Technology Co., Ltd. Our products and production technology have obtained dozens of national patents and international certifications such as CE, UL, ROHS, and REACH. So far, we have always been able to meet the production requirements of large-scale projects.
MULTIPLE AMADA TURRET CNC PUNCH PRESSES
FFU PRODUCTION LINE
AMADA CNC BENDING MACHINE
FFU MOTOR TESTING EQUIPMENT
KIMO ANEMOMETER
GMW MULTI-FUNCTION TESTER
METOTE DUST PARTICLE DETECTOR
TSI AIR VOLUME COVER
Our products are packed in bulk or in customized packages according to customers' requirements.
Certificate can be verified, welcome to the factory field visit.
CE Certified UL Certified ROHS Compliant REACH Compliant
