Customizable HEPA Fan Filter Unit (FFU) with 2-Year Warranty and Stainless Steel Construction
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,CE,GMP,FDA,UL,ATEX,RoHS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 working days |
| Supply Ability: | 1000000 Set/Sets per Day |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 5 Years(Enclosed Motor) |
| Core Components: | Motor | Condition: | New |
| Construction: | Panel Filter, HEPA Panel Filter | Dimension(L*W*H): | W1175*L575*H570mm Or Custom |
| Weight: | 38 KG, 38kg | Warranty: | 2 Years |
| Size: | W1175*L575*H570mm Or Custom | Power (Output): | 150-190W±5W |
| Material: | Stainless Steel (201SS / 304SS) / Zinc Alloy Or Custom | Customizable: | Yes |
| OEM / ODM: | Acceptable | Port: | Shenzhen Port, Acording To Customer Requirements |
| Certification: | ISO,CE,UL,RoHS | ||
| Highlight: | Laboratories ffu,Fast purification efficiency ffu |
||
Product Description

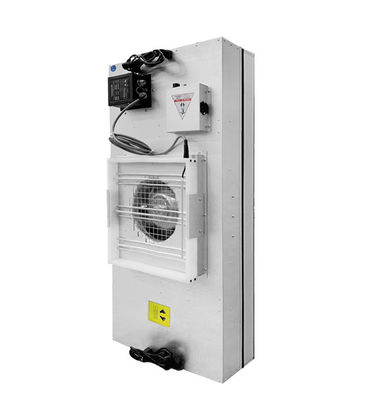

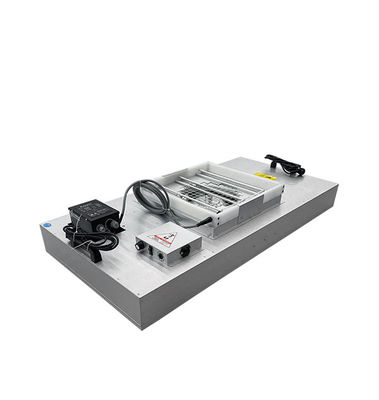

Customizable HEPA Fan Filter Unit (FFU)
Product Overview
High-performance HEPA Fan Filter Unit featuring flexibility, two-year warranty, user-friendly interface, and fast purification efficiency. Specifically designed for laboratory and clean room applications.
Specifications
| Product Name | Customizable HEPA Fan Filter Unit (FFU) |
|---|---|
| Size | W1175 × L575 × H570mm or custom |
| Weight | 38kg |
| Power (Output) | 150-190W ±5W |
| Material | Stainless steel (201SS / 304SS) / Zinc Alloy or custom |
| MOQ | 1pc |
| Customizable | Yes |
| OEM / ODM | Acceptable |
| Warranty of Core Components | 5 years (Enclosed motor) |
| Warranty | 2 years |
| Construction | HEPA Panel Filter |
| Brand Name | MRJH |
| Noise | 45-58db ±5db |
| HEPA Air Speed | 0.45-0.75m/s or custom |
| Voltage | Customizable, options include AC/DC 220V/120V/110V, 50Hz |
Technical Advantages
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments |
Product Images
Applications
FFU is applicable for Class 10-100000 dust-free workshops and manufacturer-class optical, biological industries of semiconductors, electronics, flat panel displays, disk drives, and other areas with strict air pollution control requirements.
- Clean rooms
- Laboratories
- Pharmaceutical companies
- Dust-free production workshops
- Modernization plants
- Automated manufacturing factories
- Mycology
- Hotels
Customization & Quality Assurance
- All products can be customized in size and style according to customer requirements
- Professional one-to-one online after-sales service with timely feedback and comprehensive support
- Testing includes appearance testing, functional test and visual inspection, electrical safety tests, air velocity testing, and noise testing
Manufacturing Capabilities
Why Choose Us
- High-quality sheet metal construction with durable and aesthetically pleasing surface
- One-piece injection-molded motor for low noise, anti-static properties, waterproofing, low-temperature operation, and leakage resistance
- Applications include safeguarding air quality and promoting health
Shipping & Certifications
We offer shipping options by sea or air for both bulk and small orders. Packaging can be customized based on customer requirements.
Our certificates can be verified, and we welcome visits to our factory. We have established a modern quality management system in accordance with international standards such as ISO9001 and ISO14001. Our products and production technology have obtained national patents and international certifications such as CE, UL, RoHS, and REACH.
Frequently Asked Questions
What's your sample and production lead time?
The lead time for sample takes around 3-7 days, mass production lead time is about 2-3 weeks.
How do you ship the goods?
It depends on customer's demands. If with the full containers, we'd suggest to ship by vessel. If with small order volumes & urgent orders, we'll suggest to ship by air freight or international couriers.
Where is your company located?
Our company & factory are located in Shenzhen, China (No. 79, Langbei Village Industry Road, Tongde Community, Baolong Street, Longgang District, Shenzhen City, Guangdong Province, China).
Can you arrange a visit to your factory?
Yes, of course.
Can you provide customized products as our requirements?
Yes, of course.
Do you test all your products before delivery?
Yes, of course. We will do 100% test and provide test report before delivery.
How long is your items delivery time?
It is normal 10~30 days. Usually it depends on order size, quantity and configuration, etc.
What payment term can you accept? What price term can you accept?
We can accept T/T, L/C, etc. We can accept EXW, FOB, CFR, CIF, DDU, etc.
What after-sale service can you provide?
We can provide 24 hours' technical support online.
How many countries have you exported to? How do you make long-term relationship and cooperation?
We have exported to over 30 countries in Asia, Middle East, Africa, Europe, North America, South America, etc. We will offer good quality, service and price to ensure our customer satisfaction. We will consider our customer as our friend to help them to solve problems.
