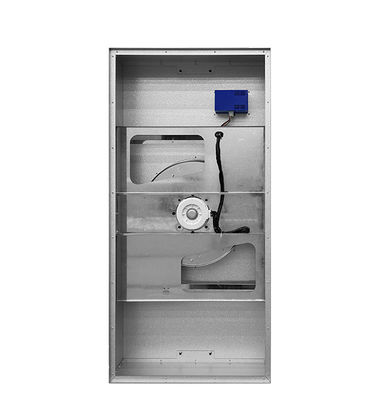

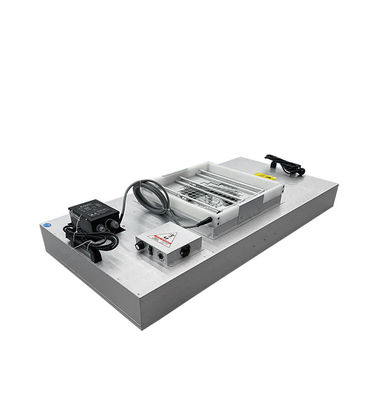

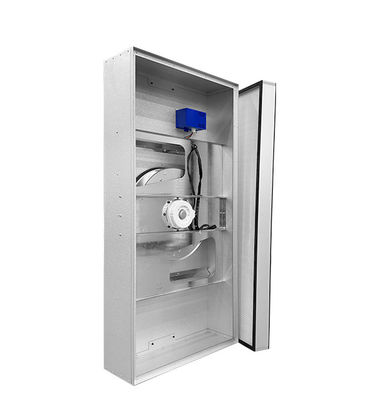

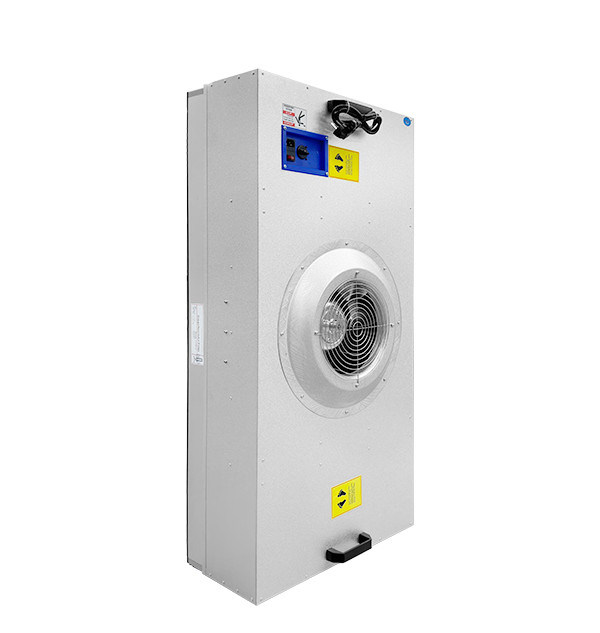

Stainless Steel FFU HEPA Fan with 0.45-0.75m/s Air Speed and 5-Year Motor Warranty for Clean Rooms
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,CE,GMP,FDA,UL,ATEX,RoHS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other |
|---|---|---|---|
| Weight (KG): | 26 | Showroom Location: | China |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 5 Years |
| Core Components: | Motor | Warranty: | 2 Years |
| Product Name: | Fan Filter Unit Hepa 110v Laminar | Size: | W1175*L575*H215mm Or Custom |
| Weight: | 26kg | Power (Output): | 150-190W±5W |
| Material: | Stainless Steel (201SS / 304SS) / Zinc Alloy Or Custom | Construction: | Panel Filter |
| Noise: | 52-58db±5db | HEPA Air Speed: | 0.45-0.75m/s Or Custom |
| Voltage: | AC/DC 220V/120V/110V, 50Hz Or Custom | Certification: | ISO,CE,UL,RoHS |
| Highlight: | Clean Hepa Filter FFU,Streamlined Hepa Filter FFU,Clean Room FFU High Airflow |
||
Product Description
Clean Streamlined Hepa Filter FFU High Airflow For Clean Room
Product Overview
FFU HEPA Fan 110V laminar flow unit designed for clean room applications with high airflow efficiency and superior filtration performance.
Specifications
| Product Name | FFU HEPA Fan 110V Laminar |
|---|---|
| Size | W1175 × L575 × H215mm or custom |
| Weight | 26kg |
| Power (Output) | 150-190W ±5W |
| Material | Stainless steel (201SS / 304SS) / Zinc Alloy or custom |
| MOQ | 1pc |
| Customizable | Yes |
| Warranty of Core Components | 5 years (Enclosed motor) |
| Warranty | 2 years |
| Construction | Panel Filter |
| Porosity | 0.3 micron |
| Brand Name | MRJH |
| Noise | 52-58db ±5db |
| HEPA Air Speed | 0.45-0.75m/s or custom |
| Voltage | AC/DC 220V/120V/110V, 50Hz or custom |
| Applications | Clean Room, Dust-free Production Workshop, Pharmaceutical Company, Modernization Plants, Automated Manufacturing Factory, Laboratory, Mycology, Hotels, etc. |
Performance Advantages
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments |
Product Gallery
Fan filter unit is applicable for Class 10-100000 dust-free workshops, flat panel displays and disk drives, and other areas with strictly control requirements for air pollution.
Product Details
Insulated Handle - Perfect detail, easy to use
Blower Selection - High performance components
Installation Examples
Shipping & Packaging
Shipping options by ship or air are available. Our products are packed in bulk or in customized packages according to customers' requirements.
Frequently Asked Questions
What's your sample and production lead time?
The lead time for sample takes around 3-7 days, mass production lead time is about 2-3 weeks.
How do you ship the goods?
It depends on customer's demands. If with the full containers, we'd suggest to ship by vessel. If with small order volumes & urgent orders, we'll suggest to ship by air freight or international couriers.
Can you provide customized products as our requirements?
Yes, of course.
Do you test all your products before delivery?
Yes, of course. We will do 100% test and provide test report before delivery.
How many countries have you exported to? How do you make long-term relationship and cooperation?
We have exported to over 30 countries in Asia, Middle East, Africa, Europe, North America, South America, etc. We will offer good quality, service and price to ensure our customer satisfaction. We will consider our customer as our friend to help them to solve problems.
