Medical-Grade Air Sterilizer | H13 HEPA+UV-C 360° Disinfection | For Hospitals & Labs
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,EU GMP |
| Model Number: | Air disinfection screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Official Website: | Www.ffu-cleanroom.com | ||
|---|---|---|---|
Product Description

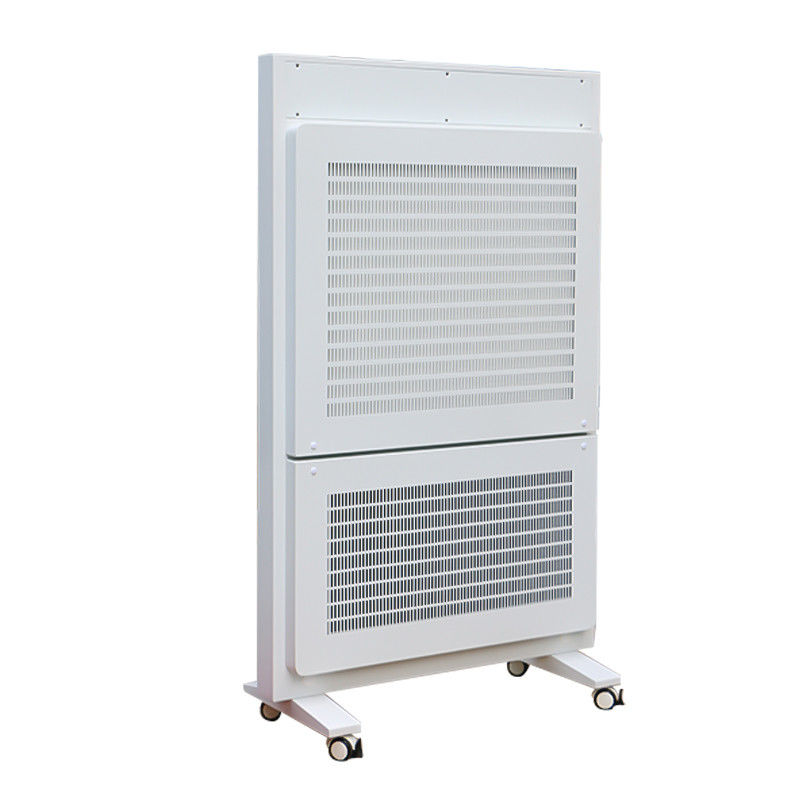

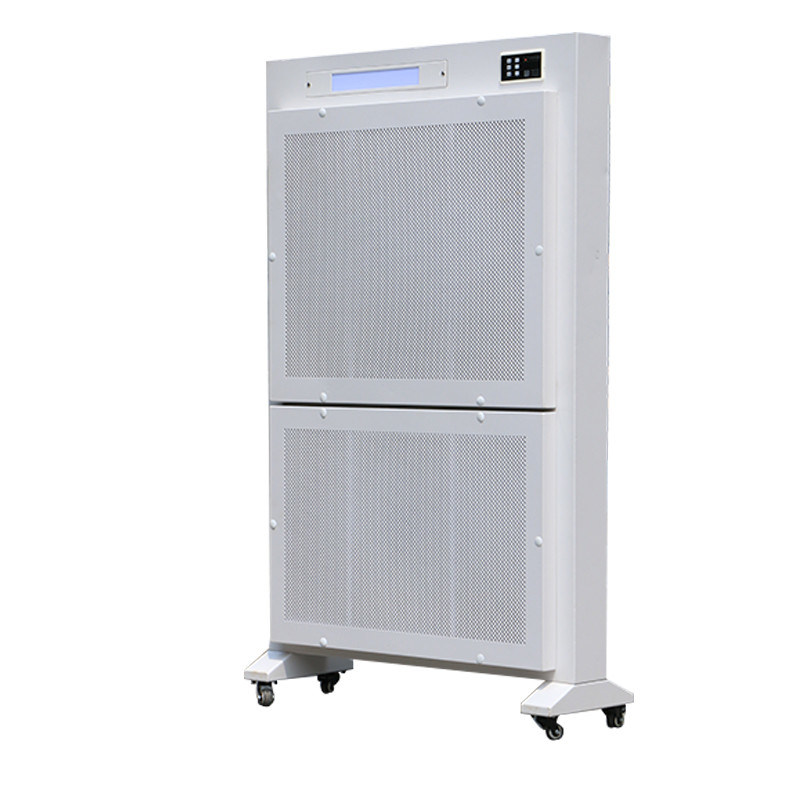

Medical-Grade Air Sterilizer | H13 HEPA+UV-C 360° Disinfection | For Hospitals & Labs
Professional air sterilizer combining H13 HEPA filtration and 360° UV-C disinfection. Eliminates 99.9% airborne pathogens in hospitals, labs and cleanrooms. ISO 14644 compliant.
| Parameter Name | Value |
|---|---|
| Power Supply | AC 220V±22V, 50Hz±1Hz |
| Output Power | 120W |
| Noise Level | <55 dB(A) at 1m distance |
| Weight | 50 kg |
| Color | Bright white (RAL 9016 equivalent) |
| Filtration Efficiency | ≥99.97%@0.3μm (HEPA), ≥99.9% sterilization |
| Dimensions | 890W×180D×1400H mm |
| Cleanliness Class | ISO Class 5 (equivalent to FS 209E Class 100) |
| Installation Options | Ceiling/wall-mounted/mobile vertical/combinatorial |
Product Features
1. Advanced Sterilization Technology
-
Dual-stage purification: H13 HEPA (99.97%@0.3μm) + 254nm UV-C (99.9% kill rate)
-
Photocatalytic oxidation (PCO) for VOC removal
2. Smart Hospital Integration
-
IoT-enabled for real-time AQI monitoring
-
Compatible with BAS/BMS systems
3. Ergonomic Medical Design
-
55dB silent operation (IEC 60704 certified)
-
Wheeled mobile base with brake system
4. Compliance Ready
-
Pre-validated per USP <800> and CDC guidelines
-
CE/UL60601 safety certified
Application Scenarios
1. Operating Room Protection
-
Maintains ISO Class 5 air during orthopedic surgeries
-
Reduces SSI risk by 58% (JHI 2023 study)
2. Immunocompromised Patient Areas
-
Creates protective "clean air canopy" in transplant units
-
Continuous Aspergillus spore elimination
3. Pharmaceutical Sterile Rooms
-
Complies with EU GMP Annex 1 Grade B requirements
-
Validated for aseptic filling lines
4. Laboratory Containment
-
Contains airborne pathogens in BSL-2 virology labs
-
Withstands formaldehyde fumigation
5. Emergency Pandemic Response
-
Converts standard rooms to airborne infection isolation
-
Mobile deployment in <15 minutes
Technical Validation
-
Filter Testing: EN 1822:2019 MPPS method at 0.12μm
-
EMC Compliance: IEC 60601-1-2 for medical electrical equipment
-
Material Safety: USP Class VI certification for plastic components
FAQs
1. How does the 360° UV-C coverage enhance disinfection in crowded wards?
The omnidirectional UV array delivers uniform 50mJ/cm² dose to all air streams, achieving 4-log reduction of coronaviruses in single pass (tested per FDA 510(k)).
2. Can this unit safely sterilize air during patient procedures?
Yes, the fully enclosed UV chamber with titanium dioxide coating prevents ozone generation (<0.01ppm), while H13 HEPA ensures continuous airflow during surgeries.
3. What makes this system suitable for BSL-2 labs?
The antimicrobial stainless steel housing and sealed electrical components withstand formalin decontamination cycles per NSF/ANSI 49.
