Cold Plate Baked Paint Cleanroom Wardrobe with H13 HEPA 99.95% Filtration for Pharma & Food Grade Applications
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO |
| Model Number: | Cold plate paint clean wardrobe |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | ||
|---|---|---|---|
Product Description

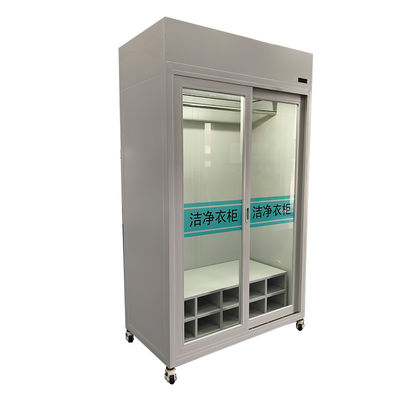

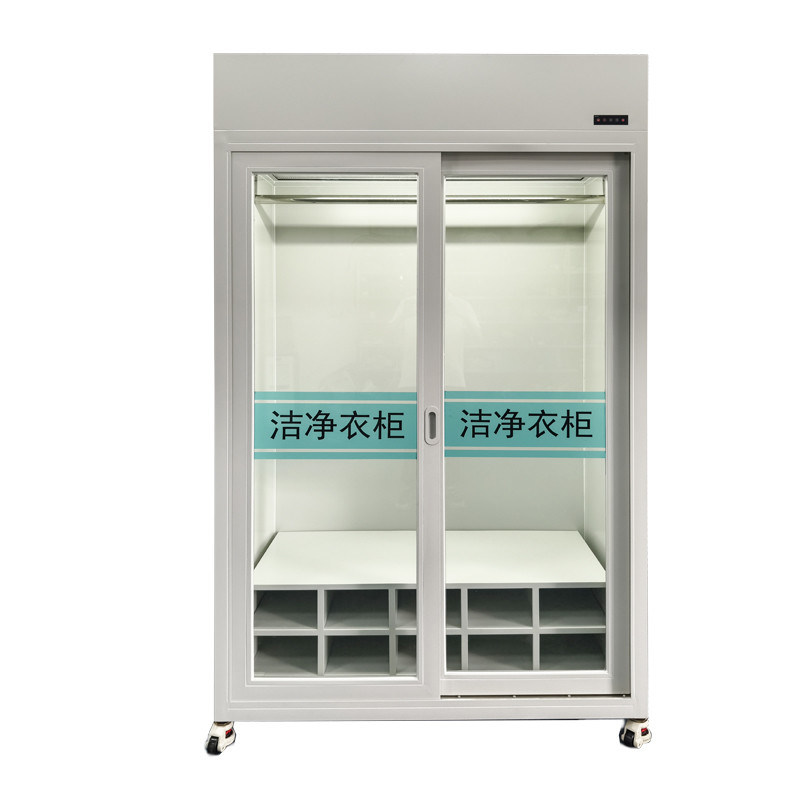

Cold Plate Baked Paint Cleanroom Wardrobe | H13 HEPA 99.95% | Pharma & Food Grade
Product Overview
Cold plate baked paint cleanroom wardrobe with H13 HEPA filtration (99.95% efficiency at 0.3μm). Designed for 30-person capacity with chemical-resistant construction suitable for ISO 14644 laboratories and USDA food facilities.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Main Frame Material | 30×30×1.0mm SUS304 Stainless Steel |
| Back/Base Panels | 304 Stainless Steel Plate |
| FFU Configuration | 1175×575×300mm Al-Zn Coated Steel |
| HEPA Filter | 1170×570×69mm H13 (99.995%@0.3μm) |
| External Dimensions | W800×D600×H2160mm |
| Capacity | 25-Person Garment & Footwear Storage |
Product Features
Advanced Material Properties
Cold plate baked paint finish: 120μm epoxy-polyester hybrid coating (ISO 12944 C5-M corrosion resistance). Smooth surface (Ra ≤0.8μm) reduces microbial adhesion by 70% (ISO 22196).
Contamination Control
Dual H13 HEPA filtration: Separate zones for garments (ISO Class 5) and footwear (ISO Class 7). Differential pressure monitoring (±5Pa accuracy).
Industrial-Grade Design
30-person capacity: Adjustable rails accommodate lab coats (50-80cm length) and safety boots (EU 48/US 14). Quick-release doors: Magnetic gasket seals maintain ISO Class 5 during access.
Application Scenarios
- Antibiotic Powder Handling: Contains cross-contamination in cephalosporin API production areas (WHO GMP compliant)
- Commercial Bakeries: Controls flour dust and yeast aerosols in USDA 9 CFR Part 416 facilities
- Electroplating Workshops: Resists sulfuric acid mist (H2SO4 ≤30% concentration) in chrome plating zones
- Veterinary Vaccine Labs: Isolates animal-derived PPE from clean zones (BSL-2/BSL-3 transition)
Product Gallery
Frequently Asked Questions
How to clean baked paint surfaces after exposure to acidic disinfectants?
Alkaline-resistant coating withstands pH 2-12 cleaners (tested per ASTM D1308-02, 500+ cycles).
Can the H13 filters handle flour/yeast particles in bakeries?
Yes, 99.95% retention of 0.3μm organic particulates (validated per ISO 16890 ePM1 standard).
Does installation require welding in operational cleanrooms?
Tool-free silicone-sealed assembly prevents particle release (ISO 14644-7 compliant, 4-hour setup).
