Custom Cleanroom Enclosure with 304 Stainless Steel Frame, ISO Class 5 Compliance, and 34× FFU HEPA Filtration
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,GMP |
| Model Number: | Class 100 clean room 2800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Size: | W15000 × D16000 × H2700 (mm) | Custom Made: | Support |
|---|---|---|---|
| Class: | 100~ 300000 | ISO: | ISO5~ISO9 Or Customized |
| Official Website: | Www.ffu-cleanroom.com | ||
| Highlight: | custom cleanroom enclosures with HEPA filtration,modular clean room ISO compliant,tailored cleanroom systems made-to-order |
||
Product Description
Tailored Cleanroom Enclosures | HEPA Filtration Systems | Made-to-Order ISO Compliance

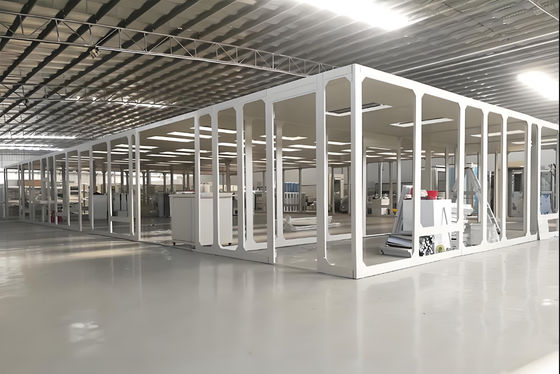

The Clean Booth is designed to maintain ISO Class 5 (Class 100) air quality for contamination-sensitive processes, compliant with ISO 14644-1 standards. Constructed with 304 stainless steel square tubes and transparent mesh curtains, it is ideal for large-scale industrial applications, including electronics, pharmaceutical industry, and biotechnology. Equipped with 34 HEPA FFUs, 72 flat panel lights, and dual curtain doors, it ensures robust airflow control, uniform illumination, and contamination-free operations.
| Parameter Name | Value |
|---|---|
| Material | 304 stainless steel frame with transparent mesh curtains |
| Internal Design | 72* flat panel lights (1200*300 mm), 2* curtain doors (1500*2100 mm) |
| Filtration System | 34* FFU (1175*575*285 aluminum frame HEPA filters, 1170*570*69) |
| Control System | Distribution box for power management |
| Airflow & Noise | Noise: 48-58 dB ±5dB; Rated power: 150-190W ±5W per unit; Vibration: ≤5µm |
| Lighting | Integrated clean lighting |
| External Dimensions | W15000 * D16000 * H2700 (mm) |
| Certifications | ISO 9001 |
Key Features
- Stainless Steel Durability: 304 stainless steel frame with corrosion resistance for industrial-grade reliability.
- High-Capacity Filtration: 34* FFUs with non-partitioned HEPA filters ensure ISO Class 5 compliance.
- Industrial Lighting: 72* flat panel lights (1200*300 mm) for full-area illumination in large clean environments.
- Low-Noise Operation: Optimized FFUs with ≤5µm vibration and noise levels of 48-58 dB.
- High-Power Efficiency: 220V/50Hz power supply with 150-190W ±5W per FFU for scalable energy management.
- Large-Scale Design: Spacious dimensions (15000*16000*2700 mm) and dual curtain doors for heavy-duty workflows.
Application Scenarios
- Electronics Manufacturing: Contamination-free assembly of sensitive components.
- Pharmaceutical Industry Cleanrooms: Material handling and processing in ISO Class 5 environments.
- Biotechnology Labs: Sterile sample preparation and testing.
