Class 100 Cleanroom Booth: 99.995% HEPA Filtration | Cost-Effective & Quick Installation
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,GMP |
| Model Number: | Class 100 clean room 2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Size: | W2000 × D1500 × H2000 (mm) | Custom Made: | Support |
|---|---|---|---|
| Class: | 100~ 300000 | ISO: | ISO5~ISO9 Or Customized |
| Official Website: | Www.ffu-cleanroom.com | ||
| Highlight: | Quick Installation Cleanroom Booth,HEPA Filtration Cleanroom Booth |
||
Product Description
Class 100 Cleanroom Booth: 99.995% HEPA Filtration | Cost-Effective & Quick Installation

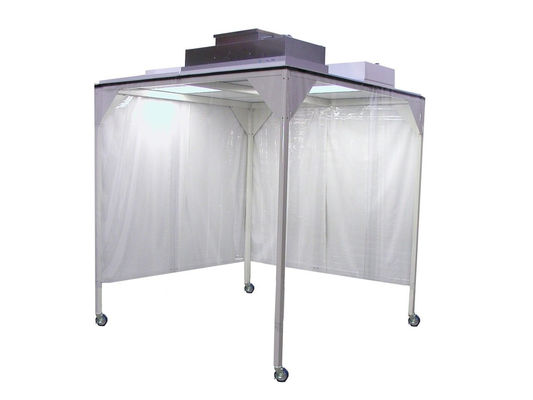

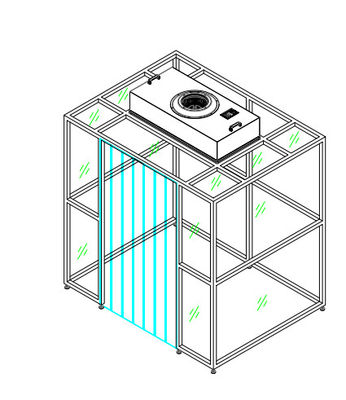

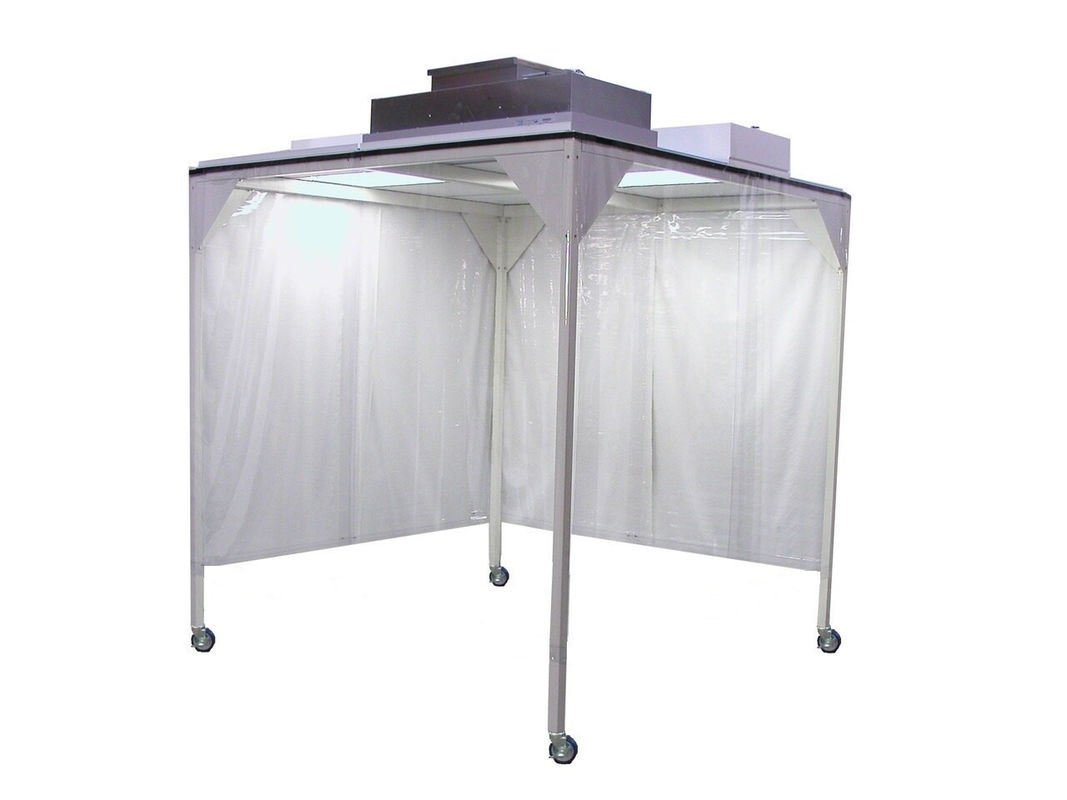

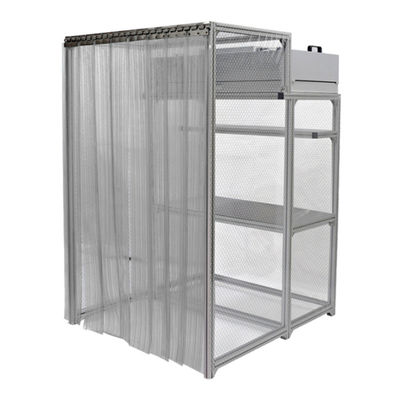

The Clean Booth is designed to maintain ISO Class 5 (Class 100) air quality for contamination-sensitive processes, compliant with ISO 14644-1 standards. Constructed with aluminum profiles and anti-static mesh curtains, it is ideal for electronics manufacturing, pharmaceutical cleanrooms, and precision laboratories. Equipped with a HEPA FFU system (99.995% @ 0.3µm), modular design, and integrated clean lighting, it ensures stable airflow, minimal vibration, and efficient particle control.
|
Parameter Name |
Value |
|
Material |
Aluminum profiles with anti-static mesh curtains on all sides and top |
|
Internal Design |
Built-in clean light, curtain door (1000×2000 mm) |
|
Filtration System |
1× FFU (1175×575×285 aluminum frame HEPA filter, 1170×570×69) |
|
Control System |
Distribution box for power management |
|
Airflow & Noise |
Air velocity: 0.45–0.75 m/s ±5%; Noise: 48–58 dB ±5dB; Vibration: <5µm |
|
Fan & Filtration |
H13 HEPA filtration efficiency ≥99.995% @ 0.3µm |
|
Lighting |
Integrated clean lighting |
|
External Dimensions |
W2000 × D1500 × H2000 (mm) |
|
Certifications |
ISO 9001 |
Key Features
1. Anti-Static Aluminum Construction: Durable aluminum frame with anti-static mesh curtains for ESD protection and contamination control.
2. High-Efficiency Filtration: Single FFU with H13 HEPA filter (99.995% @ 0.3µm) ensures ISO Class 5 compliance.
3. Precise Airflow Control: Adjustable wind speed (0.45–0.75 m/s) and low-noise operation (48–58 dB) for stable clean environments.
4. Integrated Lighting: Built-in clean light for uniform illumination during operations.
5. Energy-Efficient Design: Rated power 150–190W ±5W with 220V/50Hz power supply for reliable performance.
6. Space-Saving Modularity: Compact dimensions (2000×1500×2000 mm) and curtain door for flexible lab integration.
Application Scenarios

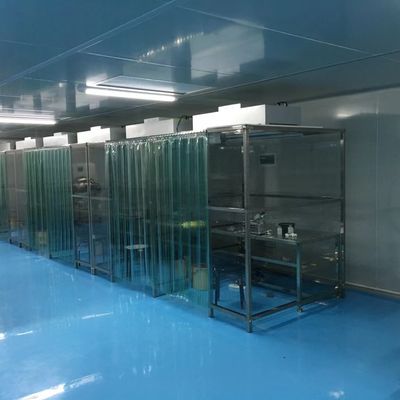

Electronics Manufacturing: Contamination-free assembly of sensitive components.
Pharmaceutical Cleanrooms: Material handling and processing in ISO Class 5 environments.
Biotechnology Labs: Sterile sample preparation and testing.
FAQ 1: How quickly can a Class 100 cleanroom booth be installed compared to traditional cleanrooms?
A:This booth features a modular aluminum frame and pre-assembled HEPA FFU system, enabling installation in under 24 hours (vs. weeks for fixed cleanrooms). No structural modifications are needed, reducing downtime for labs or production areas.
FAQ 2: Is the 99.995% HEPA filtration sufficient for FDA/GMP compliance in pharmaceutical applications?
A:Yes, the H13 HEPA filters (99.995% @ 0.3µm) meet ISO Class 5/Class 100 standards, aligning with FDA 21 CFR Part 11 and EU GMP Annex 1 requirements for sterile processes. Anti-static curtains further prevent particle retention in critical zones.
FAQ 3: What makes this cleanroom booth cost-effective for small-scale production or R&D labs?
A:Its localized airflow design (0.45–0.75 m/s) reduces energy consumption by 40% vs. full-scale cleanrooms. Compact dimensions (2000×1500×2000 mm) and reusable components lower upfront costs and maintenance fees, ideal for budget-conscious labs.
