Extra-Large Cleanroom Pass Box 1160mm | Convex Door | Steel/201 SS Construction

Extra-Large Cleanroom Pass Box 1160mm | Convex Door | Steel/201 SS Construction

Product Details:

Place of Origin: Guangdong, China
Brand Name: MRJH
Certification: ISO 14644,EU GMP,FDA
Model Number: MRJH - CDC1000N201

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Wooden frame
Delivery Time: 7-15 days
Get Best Price Contact Now

Detail Information
External Dimensions: W1160 × D1070 × H1090 (mm) Air Shower Area: W1000 × D1000 × H1000 (mm)
Custom Made: Support Official Website: Www.ffu-cleanroom.com
Certification: ISO,CE,UL,RoHS
Highlight:

Convex Door Cleanroom Pass Box

,

Steel Cleanroom Pass Box

,

201 SS Cleanroom Pass Box

Product Description

Extra-Large Cleanroom Pass Box 1160mm | Convex Door | Steel/201 SS Construction


The Convex Door Mechanically Interlocked Pass-Through Window is a high-performance contamination control solution engineered for seamless material transfer between ISO 14644-1-compliant cleanroom environments. Featuring a robust dual-construction design with an external cold-plate baked paint surface and internal 201L sandblasted stainless steel walls, this system ensures exceptional durability and chemical resistance.


Parameter Name

 parameter
Material Outside cold plate baking paint and inside 201 sanding stainless steel
Window Design Double doors with observation windows
Interlock System Mechanical interlock
Lighting Embedded UV sterilization lamp
Door Handle Stainless steel
External Dimensions W1160 × D1070 × H1090 (mm)
Internal Dimensions W1000 × D1000 × H1000 (mm)
Certifications ISO,GMP,CE

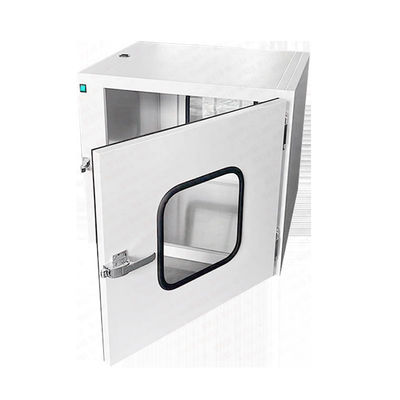

Extra-Large Cleanroom Pass Box 1160mm | Convex Door | Steel/201 SS Construction 0


Elevate cleanroom efficiency with our advanced Pass Box, designed for pharmaceutical, electronics, and lab environments. The dual-material construction combines an exterior cold plate baking paint for robust durability and an interior 201 sanding stainless steel finish, offering a smooth, non-porous surface that resists particle buildup and ensures seamless sanitization—ideal for GMP and ISO-compliant cleanrooms.

Featuring a double door design with observation windows, this unit enhances visibility during material transfers, improving operational safety and workflow efficiency. The integrated mechanical interlock system guarantees only one door opens at a time, eliminating cross-contamination risks critical to sterile environments. For added hygiene, an embedded UV sterilization lamp maintains a germ-free interior, while the stainless steel door handles ensure long-lasting reliability even in high-traffic settings.


Engineered with optimized dimensions, this pass box balances compactness with spaciousness, fitting seamlessly into tight cleanroom layouts without compromising interior capacity. The observation windows not only provide clear visibility but also enhance safety by allowing operators to monitor transfers without compromising the clean zone. Ideal for transferring sensitive materials, lab equipment, or sterile components, this Pass Box delivers unmatched durability, contamination control, and operational efficiency.

Application Scenarios

Material transfer in pharmaceutical cleanrooms.

Sterile sample handling in biomedical laboratories.

Contamination-sensitive component transfer in electronics manufacturing.

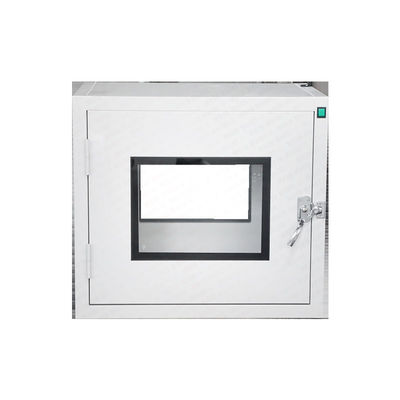

Extra-Large Cleanroom Pass Box 1160mm | Convex Door | Steel/201 SS Construction 1

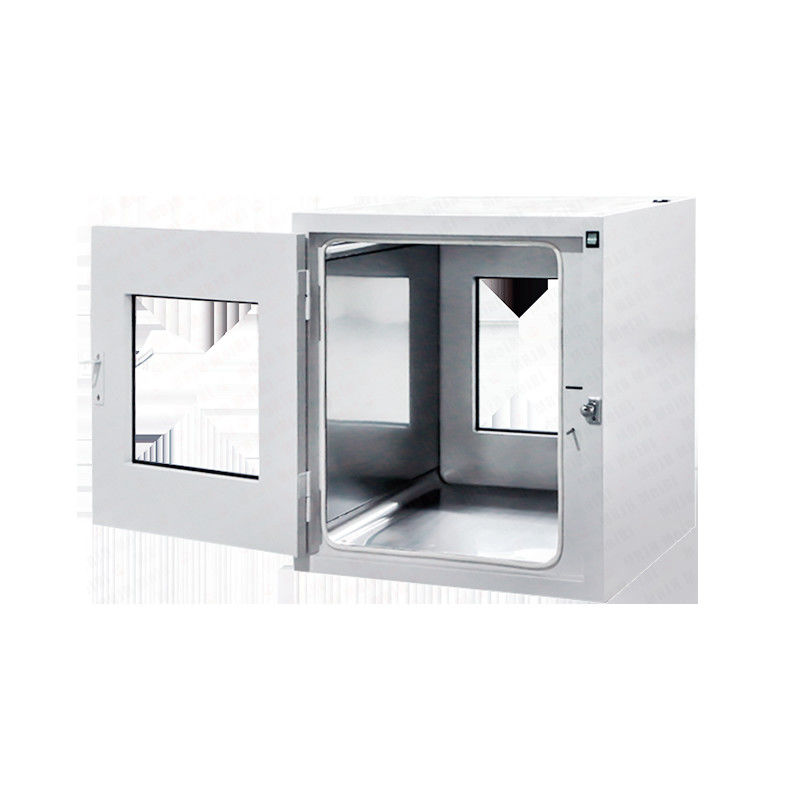

Extra-Large Cleanroom Pass Box 1160mm | Convex Door | Steel/201 SS Construction 2


Extra-Large Cleanroom Pass Box 1160mm | Convex Door | Steel/201 SS Construction 3

Extra-Large Cleanroom Pass Box 1160mm | Convex Door | Steel/201 SS Construction 4

Extra-Large Cleanroom Pass Box 1160mm | Convex Door | Steel/201 SS Construction 5

Extra-Large Cleanroom Pass Box 1160mm | Convex Door | Steel/201 SS Construction 6


FAQ

1. Q: How does the mechanical interlock system in this pass box prevent cross-contamination during material transfers?
A: The industrial-grade mechanical interlock ensures only one door opens at a time, maintaining ISO 14644-1 cleanroom integrity. This fail-safe mechanism blocks airflow exchange between environments, critical for pharmaceutical labs and electronics manufacturing where particulate control is mandatory.

2. Q: Why does this pass box combine powder-coated exteriors with 201 stainless steel interiors?
A: The powder-coated exterior resists corrosion and chemical exposure in harsh environments, while the internal 201 stainless steel (sanded finish) ensures smooth, non-porous surfaces for easy decontamination. This dual construction meets GMP hygiene standards and extends equipment lifespan in high-traffic cleanrooms.

3. Q: Is this pass box suitable for ISO Class 5 cleanrooms with strict particulate limits?
A: Yes, its airtight seals, anti-static design, and HEPA-compatible filtration options (if equipped) ensure compliance with ISO Class 5 standards. The tempered glass windows and radius corners further minimize particle retention, making it ideal for semiconductor production or biotech labs requiring <3,520 particles/m³.
