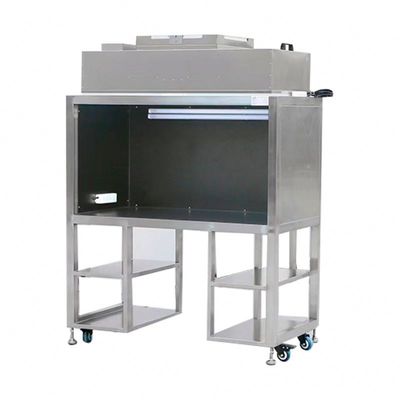

Hepa Laminar Airflow Hood FFU Portable Clean Bench For Laboratory
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | MRJH |
Certification: | ISO 14644,CE,GMP,FDA,UL |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | Contact Us |
Packaging Details: | Wooden packing |
Delivery Time: | 7-15 days |
Detail Information |
|||
Condition: | New | Applicable Industries: | Laboratory |
---|---|---|---|
Weight (KG): | 180 | Showroom Location: | China |
Video Outgoing-inspection: | Support | Machinery Test Report: | Support |
Marketing Type: | Hot Product 2022 | Warranty Of Core Components: | 1 |
Core Components: | Motor | Warranty: | 2 |
Product Name: | Laminar Flow Hood /clean Bench | Application: | Clean Room/lab |
Material: | Stailess Steel SUS304/201/Q195 /galvanized Sheet | Cleanliness: | Class100-10000 Customized |
Noise: | 65dB | HEPA Filter: | 99.995%@0.3um |
Air Velocity: | 0.45m/s | External Size: | 1000*825*1800 |
Voltage: | AC 110V / 220V | Motor Power: | 600w |
Official Website: | Www.ffu-cleanroom.com | ||
Highlight: | Hepa Laminar Airflow Hood,Portable Laminar Airflow Hood,FFU Portable Clean Bench |
Product Description

Shenzhen Meiri Purification Technology Co., Ltd
|
|
|
|
||||
CLEAN BENCH SPECIFICATION
|
|
|
|
||||
Name
|
Vetical Flow Clean Bench
|
Laminar Flow Clean Bench
|
Laminar Flow Clean Bench
|
||||
External Size
(mm) |
1200*600*1800
|
1000*825*1800
|
1200*900*1600
|
||||
Internal Size
(mm) |
1124*524*650
|
850*640*620
|
1100*700*720
|
||||
Cleanliness
|
Class100 @ 0.3um (99.99-99.99995%)
|
Class100 @ 0.3um (99.99-99.99995%)
|
ISO Grade 5 , FED 209E Class 100
|
||||
Noise
|
46-55DB±3DB (Static Testing below 1 M of HEPA )
|
50DB±5DB
|
58DB
|
||||
Power
|
220v 50hz/
|
220v 50hz/
|
220v 50hz/ 150~190W±5W
|
||||
Application
|
MEDICAL PHARMACY
FOOD INDUSTRY , LIVESTOCK, POWE PLANTS,HEALTHY CARE AND HOSPITAL , RESEARCH INSTITUTION , AEROSPACE TECHNOLOGY AUTO INDUSTRY |
|
|
||||
Air Speed (Adjustable)
|
0.45m/s
|
0.45m/s
|
0.45m/s~0.75m/s ±5% (three gears adjustable)
|
||||
Price(USD)
|
672
|
1015
|
821
|
||||
Ilumination / Accessories
|
Energy Saving Lamp *2 ( Each on the back and front)
|
Clean Lamp*1 / Germicidal Lamp*1 : 18W/8W
|
Clean Lamp*1 / Germicidal Lamp*1 : 18W/8W
|
||||
CFU
|
≤0.5cfu/M/0.5H
|
≤0.5cfu/M/0.5H
|
≤0.5cfu/M/0.5H
|
||||
Applicable No. of People
|
1 Person
|
1 Person
|
1 person
|
||||
Warranty
|
3Years
|
3Years
|
3Years
|
||||
Material
|
Full SUS304
|
Outer Coated Cold-rolled Steel Plate / Inner SUS304
|
Outer Coated Cold-rolled Steel Plate / Inner SUS304
|
Product parameters:
Function of the Clean Bench:
The clean bench has a specific function in providing a controlled and sterile working environment. Here are some key points about the function of a clean bench:
Contamination Control: The main function of the clean bench is to control and minimize contamination in the working area. It achieves this by using high-efficiency particulate air (HEPA) filters that remove airborne particles, including dust, microorganisms, and other contaminants. The filtered air is then directed in a laminar flow over the workspace, creating a clean and controlled environment.
Sterile Workspace: The clean bench creates a sterile workspace by eliminating and preventing the entry of contaminants. This is particularly important in fields such as microbiology, pharmaceuticals, or biotechnology, where maintaining a sterile environment is crucial for accurate results and the integrity of samples or experiments. The clean bench helps protect sensitive materials and samples from external contamination.
Sample Protection: A clean bench provides a barrier between the working area and the surrounding environment, safeguarding samples from contamination. The laminar flow of filtered air helps prevent particles or microorganisms from settling on the samples, ensuring their purity and reliability. This is vital for tasks that require aseptic conditions, such as cell culture, DNA analysis, or preparation of sterile solutions.
Operator Safety: In addition to protecting samples, the clean bench also offers a degree of safety for the operator. The laminar flow of filtered air helps create a physical barrier between the operator and potentially harmful substances, reducing the risk of exposure to hazardous materials or biohazards. This helps maintain a safe working environment, especially in laboratories or cleanroom settings.
