| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,CE,GMP,FDA,UL |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 days |
| Supply Ability: | 1000000 Set/Sets per Day |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Warranty Of Core Components: | 5 Years(Enclosed Motor) |
|---|---|---|---|
| Efficiency: | 99.995% (H13-U17) | Construction: | Panel Filter, HEPA Panel Filter |
| Porosity: | 0.3micron | Dimension(L*W*H): | W1175*L575*H570mm Or Custom |
| Weight: | 38 KG | Warranty: | 2 Years |
| Product Name: | M-R570-AS Motor Anti-static Fan Filter Unit (FFU) | Size: | W1175*L575*H570mm Or Custom |
| Power (Output): | 150-190W±5W | Material: | Stainless Steel (201SS / 304SS) / Zinc Alloy Or Custom |
| Customizable: | Yes | OEM / ODM: | Acceptable |
| Port: | Shenzhen Port, Acording To Customer Requirements | Official Website: | Www.ffu-cleanroom.com |
| Certification: | ISO,CE,UL,RoHS | ||
| Highlight: | Laboratories fan filter unit,Enhanced contamination control ffu,Excellent particle retention ffu |
||
|
Product Name
|

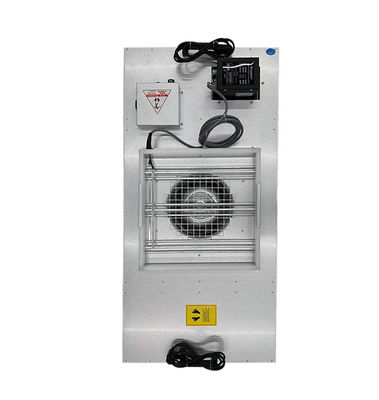

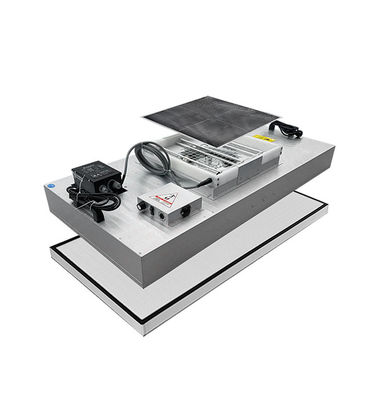

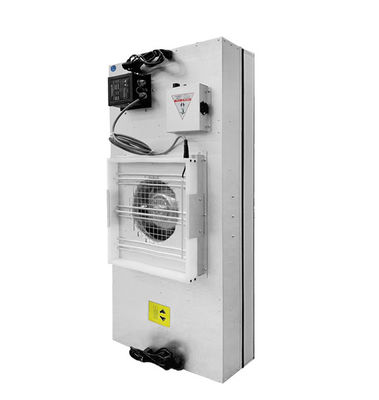

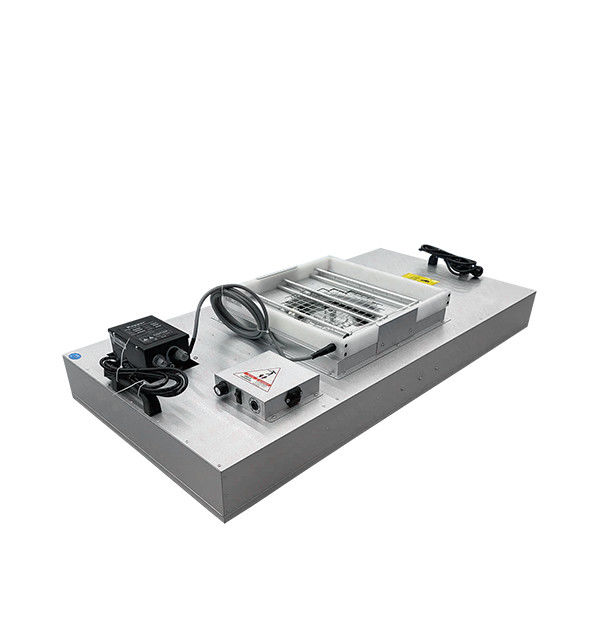

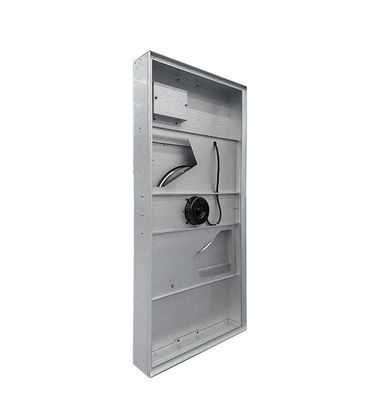

Motor Anti-static Fan Filter Unit (FFU)
|
|
Size
|
W1175*L575*H570mm or custom
|
|
Weight
|
38kg
|
|
Power (Output)
|
150-190W±5W
|
|
Material
|
Stainless steel (201SS / 304SS) / Zinc Alloy or custom
|
|
MOQ
|
1pc
|
|
Efficiency
|
99.995% (H13-U17)
|
|
Customizable
|
Yes
|
|
OEM / ODM
|
Acceptable
|
|
Warranty of core components
|
5 years
|
|
Warranty
|
2 years
|
|
Construction
|
HEPA Panel Filter
|
|
Porosity
|
0.3micron
|
|
Brand Name
|
MRJH
|
|
Noise
|
45-58db±5db
|
|
HEPA Air Speed
|
0.45-0.75m/s or custom
|
|
Voltage
|
AC/DC 220V/120V/110V, 50Hz or custom
|
|
Applications
|
All Industrial
|
| Parameter/Feature | Our Product | Market Average | Advantages |
|---|---|---|---|
| H13 Filter Pleat Count | 315 pleats | 260 pleats | Larger filtration area, improving filtration efficiency and dust holding capacity. |
| HEPA Filter | - | - | Increased thickness of filtration media enhances filtration effectiveness and lifespan. |
| Pleat Height | 50 mm | 38 mm | Thicker filtration media improves filtration performance and longevity. |
| Protective Mesh Brand | High-quality 9N brand | Generic brands | Superior support and protection, ensuring structural stability. |
| Frame Thickness | 1.0 mm | 0.7 mm | Stronger frame for enhanced durability and reduced deformation risks. |
| Potting Process & Materials | 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines | Standard processes | Tight, uniform sealing prevents leaks and guarantees reliable filtration. |
| Average Airflow Velocity | 0.8 m/s | 0.65 m/s | Higher airflow capacity with lower resistance, boosting system efficiency. |
| Motor | Waterproof | Non-waterproof | Enhanced safety and reliability in diverse environments. |
Technology Guardian of Health
High-Capacity Hepa for Superior Contamination Control
provide effective contamination control in various environments.
Hepa quickly filters the air, removing particles and contaminants. It features a high-efficiency particulate air (HEPA) filter that captures particles as small as 0.3 microns with 99.99% efficiency.
