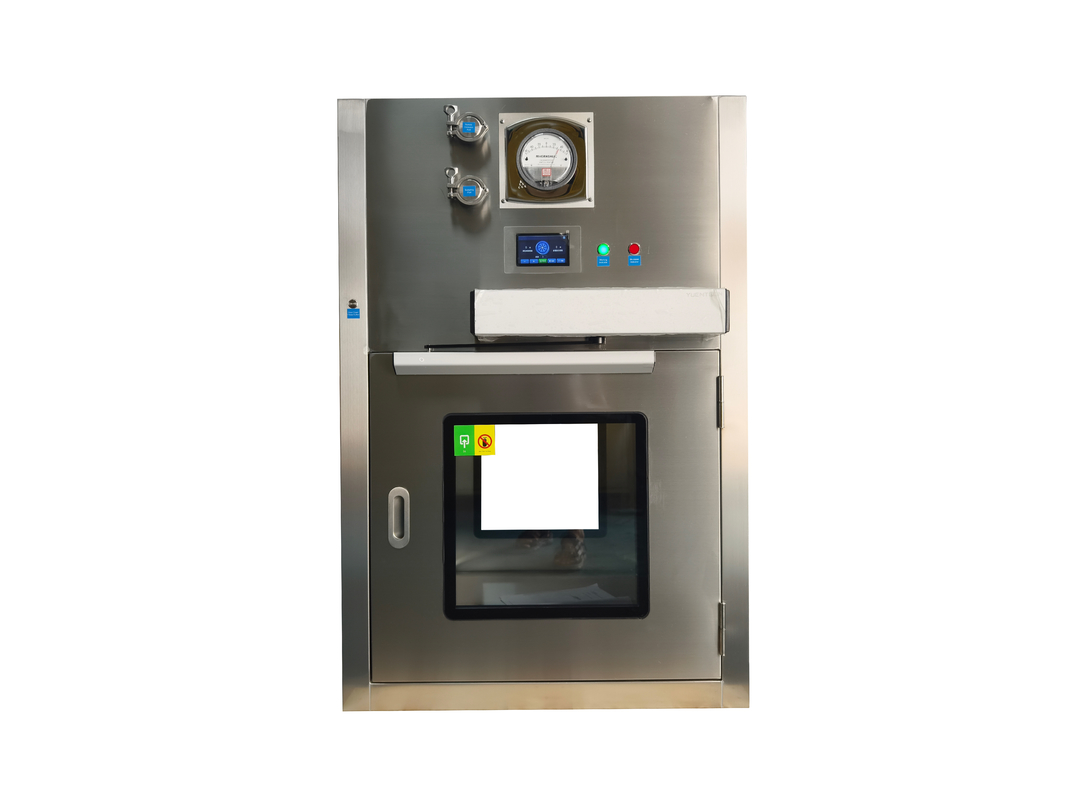

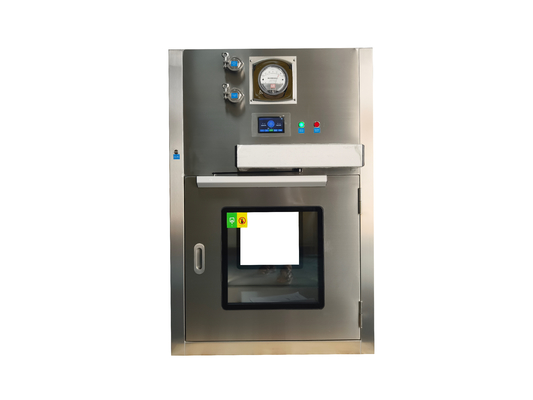

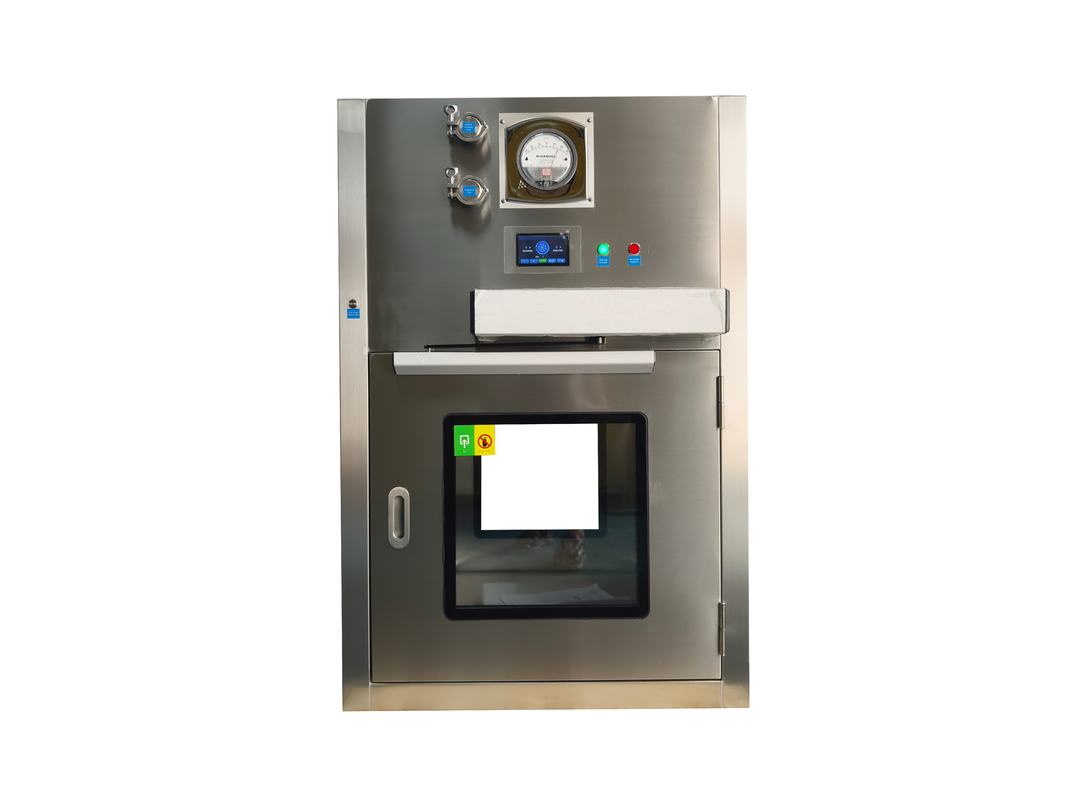

Auto-Door Laminar Flow Pass Box | HEPA-Filtered Touchless Transfer for Critical Zones
Product Details:
| Brand Name: | MRJH |
| Certification: | ISO.GMP.CE.UL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
Product Description
| Category | Specifications |
|---|---|
| Airflow System | Vertical unidirectional flow (0.45±0.05m/s) |
| Filtration | H14 HEPA (99.995% @ 0.3μm) + Pre-filter G4 |
| Door Mechanism | Motorized sliding doors (open/close ≤3s) |
| Material | 316L SS (Ra≤0.6μm) / Electropolished option |
| Control | PLC + Infrared sensor activation |
| Safety | Obstacle detection + Emergency manual override |
| Cleanliness | ISO Class 3-5 maintainable (per ISO 14644) |
| Noise Level | ≤55 dB(A) at 1m distance |
Product Description
Robotic-Grade Contamination-Free Transfer
Our Auto-Door Laminar Flow Pass-Through enables zero-human-intervention material movement between controlled environments. The integrated H14 HEPA system delivers ISO Class 5 air purity within the chamber, while motorized doors with infrared sensors eliminate touch-induced contamination.
Featuring adaptive airflow velocity control (adjustable 0.3-0.6m/s), it dynamically compensates for door-opening turbulence. The 316L stainless steel construction with radiused corners meets cGMP sanitization requirements, and the PLC logs all transfer cycles with particle counter interface ports for real-time compliance reporting.
Target Applications
-
Aseptic Fill Lines
Vial transfer in Grade A/B isolator interfaces -
Cell Therapy Labs
Sterile media bottle entry to biosafety cabinets -
Vaccine Production
Automated syringe movement between filling & capping stations -
Medical Device Assembly
Component feeding to clean benches (Class ISO 5) -
Nuclear Medicine
Radiopharmaceutical transport with lead-shielded option
FAQ Highlights
Q: How does laminar flow prevent contamination during door opening?
*A: Our 3-stage protection:
-
Pre-purge cycle: Chamber pre-cleaning before inner door open
-
Air curtain: 0.55m/s downward flow creates particle barrier
-
Step-over design: 80mm raised sill blocks floor contaminants*
Q: What if power fails during operation?
*A: Fail-safe protocols activate:
-
Doors auto-lock in closed position
-
UPS backup maintains HEPA airflow for 15min
-
Mechanical release lever accessible externally*
Q: Can it handle heavy items like media tanks?
*A: Yes, with optional upgrades:
-
Load capacity up to 50kg (standard 20kg)
-
Conveyor roller track integration
-
Floor-embedded installation for trolleys*
