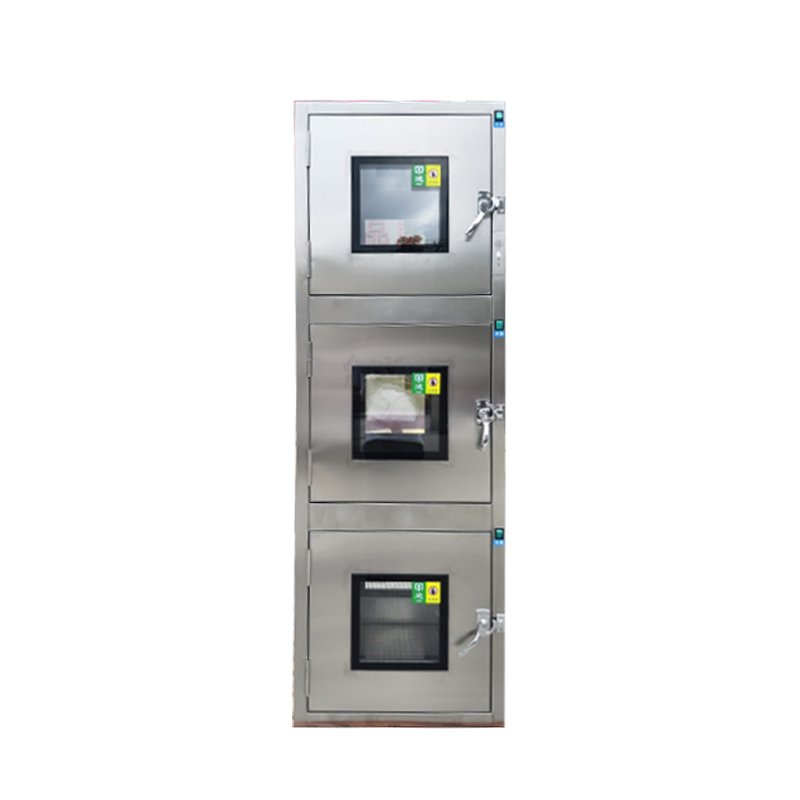

Ultra-Safe Triple-Layer Mechanically Interlocked Pass Box with UV Sterilization

Introducing our premium Triple-Layer Mechanically Interlocked Pass-Through Window: Engineered for maximum safety and contamination control in critical environments like laboratories, cleanrooms, and pharmaceutical settings. This robust unit features three distinct chambers with advanced mechanical interlocks, ensuring absolute isolation and preventing cross-contamination by guaranteeing only one door can be open at any time.

Parameter Specifications:

1. Main body material: 1.2mm thick 304 stainless steel plate; door panel: 1.0mm thick stainless steel; inner door panel: 1.0mm thick 201 stainless steel.

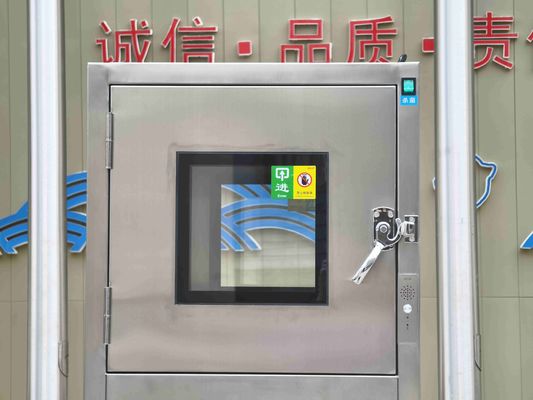

2. Double doors made of 304 stainless steel, featuring a 270*270*4mm tempered glass viewing window at the center.

3. Mechanical interlock mechanism ensures both doors cannot be opened simultaneously.

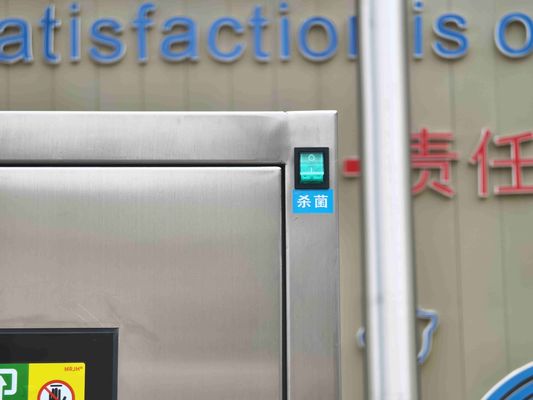

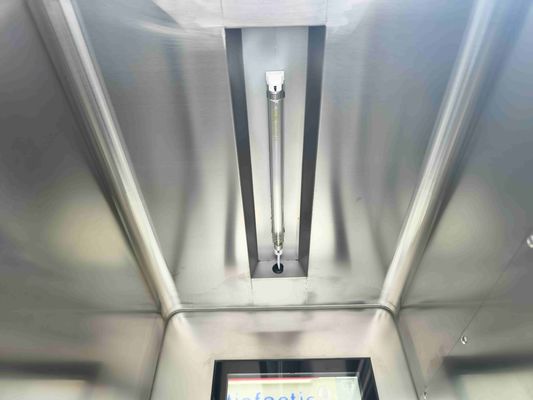

4. Built-in UV sterilization lamp on the inner top surface.

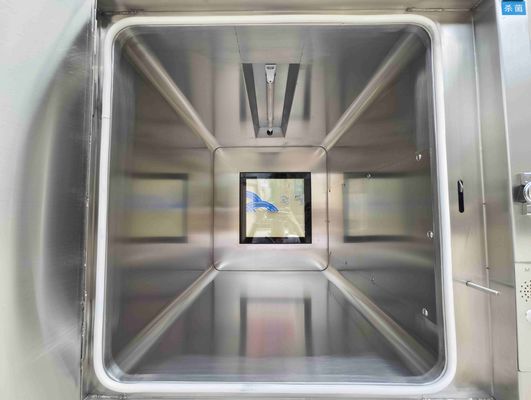

5. Rounded corners inside the pass-through window for seamless, dead-angle-free design.

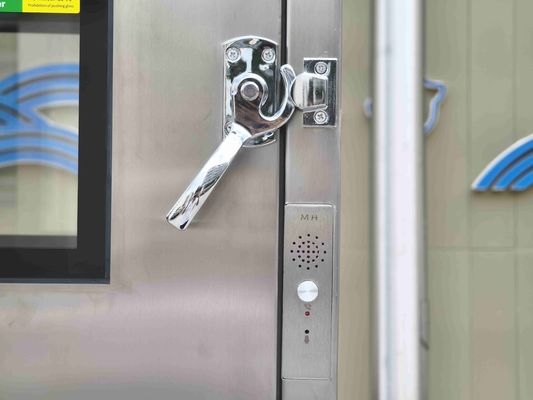

6. External door handle: durable stainless steel construction.

7. Overall dimensions: 600mm W (width) × 600mm D (depth) × 1800mm H (height).

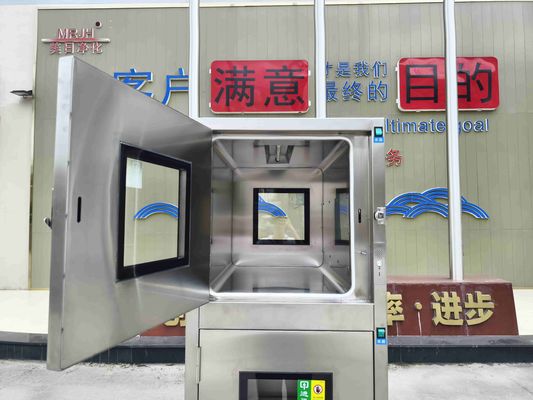

   Internal dimensions: 440mm W (width) × 530mm D (depth) × 480mm H (height).

Key Features & Specifications:

• Triple-Layer Security & Isolation: Three independent chambers provide unparalleled segregation between zones.

• Guaranteed Sequential Access: Advanced Mechanical Interlocks physically prevent more than one door from opening simultaneously, maintaining strict environmental integrity.

• Built-in Decontamination: Features an integrated UV sterilization lamp mounted on the inner top surface, ensuring thorough disinfection of the chamber contents between transfers.

• Hygienic Construction:

  • Main Body: Constructed from durable 1.2mm thick 304 stainless steel.

  • Outer Door Panels: Made from 1.0mm thick 304 stainless steel.

  • Inner Door Panels: Fabricated from 1.0mm thick 201 stainless steel.

  • Viewing Window: Each door includes a 270mm x 270mm x 4mm tempered glass viewing panel for safe visual inspection.

• Easy Cleaning & Sanitization: Interior features seamless rounded corners for a dead-angle-free design, eliminating crevices where contaminants can hide and enabling effortless cleaning.

• Robust Hardware: Stainless steel external door handles ensure durability and longevity.

• Optimized Dimensions:

  • Overall (WxDxH): 600mm x 600mm x 1800mm

  • Internal Chamber (WxDxH): 440mm x 530mm x 480mm (Providing substantial transfer capacity while maintaining compact external footprint).

Ideal for: Secure, contamination-free transfer of materials between ISO-classified cleanrooms, biological safety labs, pharmaceutical production areas, hospitals, and any environment requiring stringent bio-containment protocols. This pass-through window delivers unmatched safety, reliability, and effortless sterilization.

Why it's better: The triple-layer design with fail-safe mechanical interlocks offers superior containment compared to standard single or double units. Combined with UV sterilization and a seamless, easy-clean interior, it sets the standard for secure and hygienic material transfer.
