ISO 14644 Cleanroom Steel Door with Hermetic Sealing | Contamination-Proof & Electrostatic Dissipative
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO,GMP,CE,UL |
| Model Number: | Cleanroom Steel Door |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
Product Description

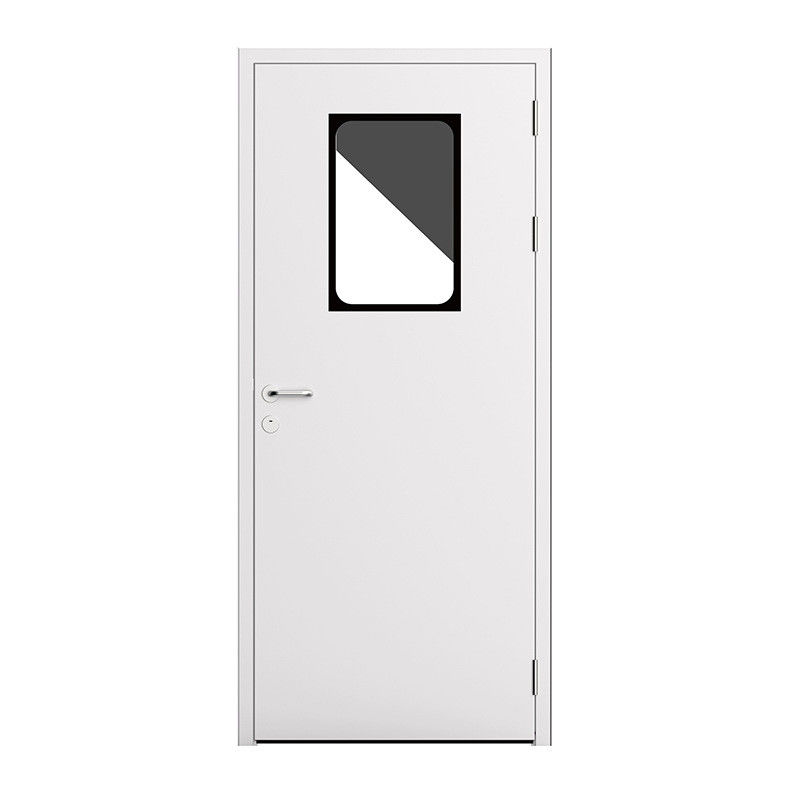

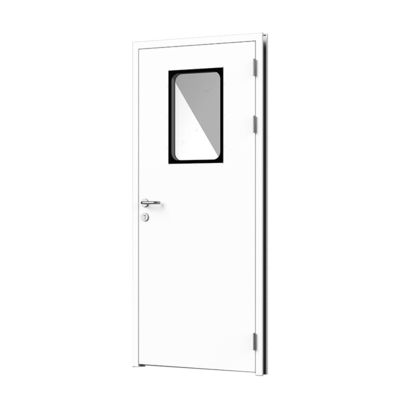

ISO 14644 Cleanroom Steel Door with Hermetic Sealing | Contamination-Proof & Electrostatic Dissipative
Engineered for critical environments demanding structural integrity and contamination prevention. Ideal for high-security labs, biotech facilities, and industrial cleanrooms requiring strict access protocols.
| Parameter Name | Value |
|---|---|
| Main Frame Material | Cold-rolled steel plate with paint coating (built-in desiccant) |
| Door Panel Material | Cold-rolled steel plate with paint coating |
| Observation Window | Double-sided tempered glass, 400×600×5.0mm with 20mm silk-screened border |
| Lock System | High-end door lock (1 set) |
| Hinges | Embedded hinges (6 sets) |
| Dust-Proof Feature | Automatic bottom dust-proof rubber strip |
| Safety Interlock | Dual-door electronic interlocking system |
| External Dimensions | 1260W×70D×2135H (Note: Single door opening 1210W×2115H×50D) |
Product Features
Enhanced Structural Integrity
-
Cold-rolled steel construction with uniform paint coating for superior corrosion resistance and surface smoothness (Ra ≤1.2μm).
-
Integrated desiccant within the frame mitigates humidity fluctuations, ensuring dimensional stability in variable climates.
-
High-clarity tempered glass window with anti-glare black border enables visual monitoring without compromising seal integrity.
Advanced Access Control
-
Six heavy-duty embedded hinges distribute weight evenly, supporting 20% greater load capacity than standard systems.
-
Dual-door electronic interlock prevents simultaneous opening, maintaining pressure differentials in ISO Class 5+ environments.
-
Auto-adjusting bottom seal compensates for floor irregularities, achieving ≤0.1mm gap tolerance (per EN 1634-1).
Operational Precision
-
Expanded dimensions accommodate industrial airlock configurations while minimizing footprint.
-
Interlock system features fail-safe circuitry compatible with BMS integration for audit-compliant access logs.
Application Scenarios
Biotechnology Research Labs
-
Ensures unidirectional personnel flow in BSL-3 containment zones (per NIH/CDC guidelines).
Aerospace Component Production
-
Maintains ISO 14644-1 Class 6 conditions during satellite assembly, with interlock-triggered air shower compatibility.
Pharmaceutical Sterile Fill Lines
-
Meets EU GMP Annex 1 requirements for barrier isolation between Grade A/B zones.
Nuclear Decontamination Chambers
-
Withstands frequent decontamination cycles using peroxide-based agents without material degradation.
FAQs :
-
How does the hermetic sealing prevent cross-contamination in ISO-certified environments?
The door integrates a dual-layer rubber gasket and automatic bottom seal, achieving ≤0.1mm gap tolerance to block airborne particles and maintain pressure differentials in ISO Class 5+ cleanrooms -
Is the door compatible with electronic interlocking systems for controlled access?
Yes, it supports integration with dual-door interlock systems to ensure sequential opening, critical for maintaining sterile zones in pharmaceutical production or semiconductor cleanrooms -
Can the electrostatic dissipative coating withstand frequent chemical cleaning cycles?
The paint coating includes anti-static additives (EN 1149-5 compliant), resisting corrosion from peroxide-based sanitizers and reducing particle adhesion by 70%
