Cold Plate Baked Paint Cleanroom Wardrobe | H13 HEPA 99.95% | Pharma & Food Grade
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO |
| Model Number: | Cold plate paint clean wardrobe |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
|---|---|---|---|
Product Description

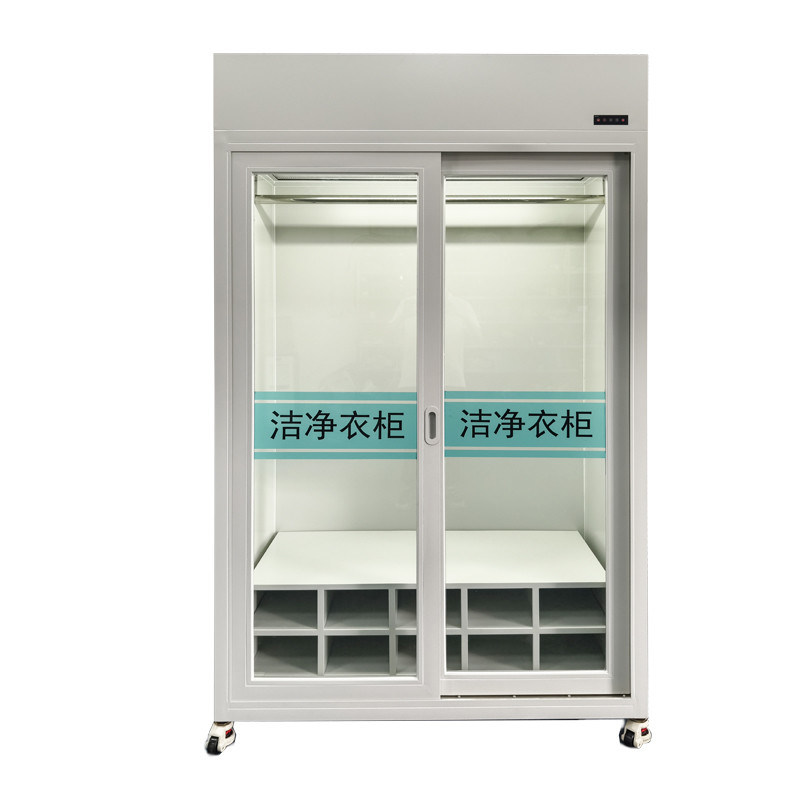

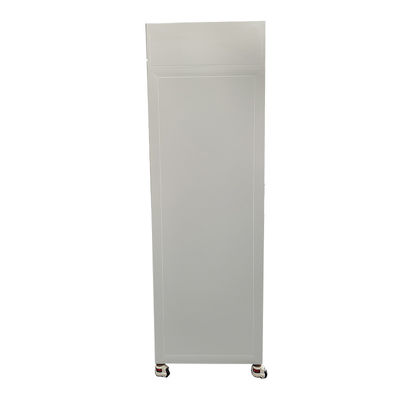

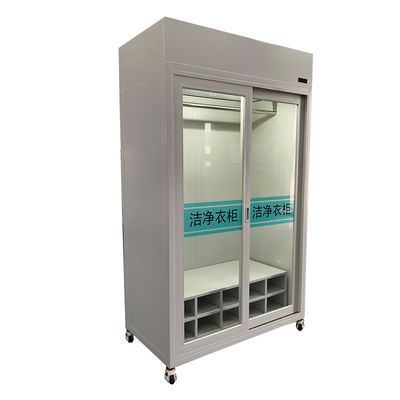

Cold Plate Baked Paint Cleanroom Wardrobe | H13 HEPA 99.95% | Pharma & Food Grade
Cold plate baked paint cleanroom wardrobe with H13 HEPA (99.95% @0.3μm). 30-person capacity, chemical-resistant for ISO 14644 labs and USDA food facilities.
|
Parameter Name |
Value |
|
Main Frame Material |
30×30×1.0mm SUS304 Stainless Steel |
|
Back/Base Panels |
304 Stainless Steel Plate |
|
FFU Configuration |
1175×575×300mm Al-Zn Coated Steel |
|
HEPA Filter |
1170×570×69mm H13 (99.995%@0.3μm) |
|
External Dimensions |
W800×D600×H2160mm |
|
Capacity |
25-Person Garment & Footwear Storage |
Product Features
Advanced Material Properties
Cold plate baked paint finish:
120μm epoxy-polyester hybrid coating (ISO 12944 C5-M corrosion resistance).
Smooth surface (Ra ≤0.8μm) reduces microbial adhesion by 70% (ISO 22196).
Contamination Control
Dual H13 HEPA filtration:
Separate zones for garments (ISO Class 5) and footwear (ISO Class 7).
Differential pressure monitoring (±5Pa accuracy).
Industrial-Grade Design
30-person capacity:
Adjustable rails accommodate lab coats (50-80cm length) and safety boots (EU 48/US 14).
Quick-release doors:
Magnetic gasket seals maintain ISO Class 5 during access.
Application Scenarios
Antibiotic Powder Handling
Contains cross-contamination in cephalosporin API production areas (WHO GMP compliant).
Commercial Bakeries
Controls flour dust and yeast aerosols in USDA 9 CFR Part 416 facilities.
Electroplating Workshops
Resists sulfuric acid mist (H2SO4 ≤30% concentration) in chrome plating zones.
Veterinary Vaccine Labs
Isolates animal-derived PPE from clean zones (BSL-2/BSL-3 transition).
FAQ 1:
Q: How to clean baked paint surfaces after exposure to acidic disinfectants?
A: Alkaline-resistant coating withstands pH 2-12 cleaners (tested per ASTM D1308-02, 500+ cycles).
FAQ 2:
Q: Can the H13 filters handle flour/yeast particles in bakeries?
A: Yes, 99.95% retention of 0.3μm organic particulates (validated per ISO 16890 ePM1 standard).
FAQ 3:
Q: Does installation require welding in operational cleanrooms?
A: Tool-free silicone-sealed assembly prevents particle release (ISO 14644-7 compliant, 4-hour setup).
