2000 CFM Industrial Ceiling Vent with Full Cold Plate Baked Paint for Corrosion-Resistant HVAC Applications
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | ||
|---|---|---|---|
Product Description

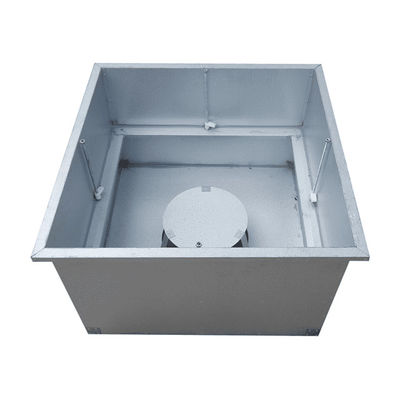

2000 CFM Industrial Ceiling Vent | Full Cold Plate Baked Paint | 1270×660×260
Product Overview
2000 CFM industrial ceiling vent with full cold plate baked paint. Corrosion-resistant HVAC outlet designed for factories, laboratories, and high-humidity facilities.
| Parameter Name | Value |
|---|---|
| Main Body Material | Painted cold-rolled steel |
| Diffuser Plate Material | Painted cold-rolled steel |
| Air Inlet Flange | 630×250 mm (galvanized steel) |

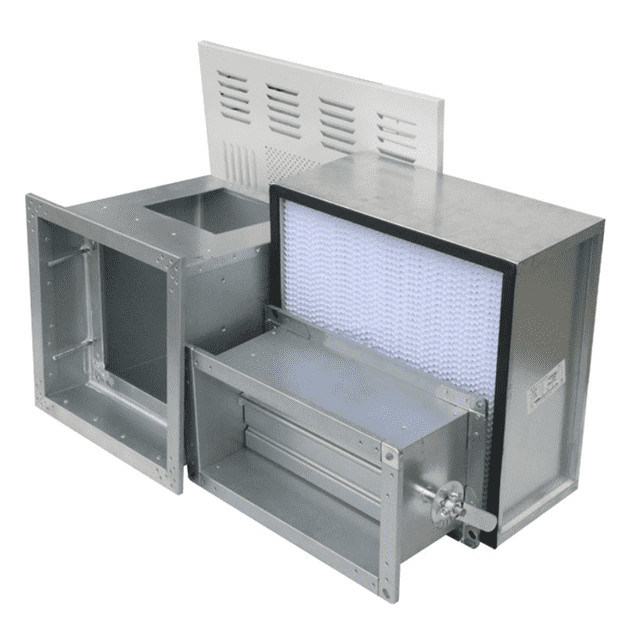

| H13 HEPA Filter | 1220×610×90 mm |
| Body Dimensions | 1270×660×260 mm |
| Ceiling Opening | 1275×665 mm |

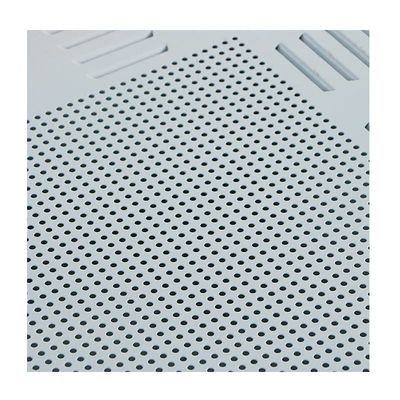

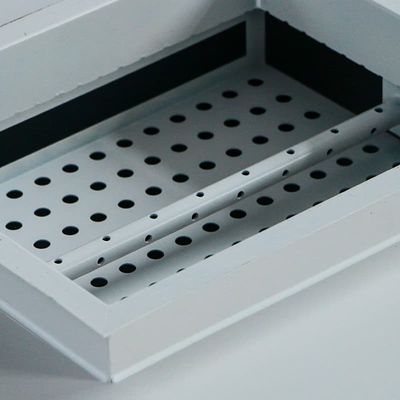

| Diffuser Design | 5mm full holes + louver holes |
Key Features
- Heavy-Duty Construction Full cold plate painted steel body and diffuser withstand harsh environments including chemical exposure and high humidity. Reinforced 630×250 mm inlet flange ensures secure duct connections.
- Precision Air Distribution Full hole + 5+ louver hole diffuser design enables adjustable airflow patterns for optimized laminar flow. Minimizes turbulence in large spaces with up to 1500 CFM capacity.
- Large-Scale Compatibility 1270×660×260 mm body accommodates high airflow volumes in facilities with ceilings over 4m. Streamlined maintenance via tool-free filter replacement.
- Hygienic Compliance Smooth baked-paint surfaces meet FDA/GMP standards for pharmaceutical and food production zones.
Application Scenarios
Pharmaceutical facilities: Sterile air supply for large production lines
Semiconductor plants: Particle control in cleanroom environments
Hospital HVAC systems: Air delivery in operating theaters
Industrial manufacturing: Contamination control in production areas
Product Gallery
Frequently Asked Questions
Will this 1270×660×260 unit fit existing ceiling openings in older buildings?
Compatible with standard retrofit frameworks; includes adjustable mounting brackets for ±15mm tolerance adjustments.
How does the 2000 CFM capacity impact energy consumption?
Aerodynamic louver design reduces static pressure by 18%, maintaining high airflow with lower fan energy demands.
Is the baked paint finish suitable for washdown environments?
IP54-rated sealed joints and chemical-resistant coating withstand frequent high-pressure sanitation cycles.
