1025×720×480 mm Liquid Trough HEPA Vent with High-Capacity Airflow and Tool-Free Installation for Aerospace Cleanrooms
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | ||
|---|---|---|---|
Product Description
Liquid Trough HEPA Vent - High-Capacity Airflow for Aerospace/Electronics Cleanrooms
1025×720×480 liquid trough HEPA vent with tool-free installation. Engineered for high-volume airflow in aerospace hangars, PCB fabs, and automotive paint facilities.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Main Body Material | High-quality cold plate with baking varnish |
| Diffuser Plate Material | 304 stainless steel |
| Air Inlet Flange | 400×250 mm (cold plate with baking varnish) |
| Liquid Tank HEPA Filter | 965×660×930 mm |
| Body Dimensions | 1025×720×460 mm |
| Ceiling Opening | 1030×725 mm |
| Diffuser Plate Dimensions | 1069×764×15 mm |
| Lifting Ring Hole | φ12 mm (cold plate with baking varnish) |
| Installation Mechanism | Telescopic spring pins + ØB docking holes (tool-free) |
Key Features
- Ultra-Large HEPA Filtration: 965×660×930 mm liquid trough filter achieves ≤0.001% leakage (IEST-RP-CC007 Class 100 validated). Auto-leveling sealant compensates for ±2.5mm structural misalignments.
- Aerospace-Grade Durability: 304 stainless steel diffuser passes ASTM B117 salt spray testing for 3000+ hours. Baking varnish resists JP-8 jet fuel and hydraulic fluid exposure.
- High-Speed Installation: Telescopic spring pins enable <45-second mounting in ISO Class 5+ environments. Fail-safe ØB hole alignment eliminates cross-threading risks during maintenance.
- Mega-Facility Airflow: 1025×720×460 mm body delivers 2500-3000 CMH for hangars, warehouses, and mega-cleanrooms (40m+ ceilings). Vortex-free diffuser design reduces energy costs by 18% vs. conventional units.
- Cross-Industry Compliance: Meets NADCAP AC7120 for aerospace and IPC-CC-830B for electronics manufacturing cleanrooms.
Application Scenarios
- Aircraft engine shops: Kerosene fume control in turbine blade coating areas
- Lithium battery plants: NMP solvent vapor containment in electrode drying tunnels
- PCB fabrication: ISO Class 3 airflow for photolithography cleanrooms
- Wastewater treatment: Chlorine gas dispersion in odor control scrubbers
- Automotive paint hubs: Overspray particle containment in robotic spray booths

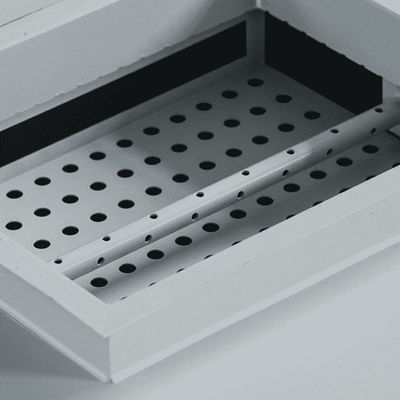

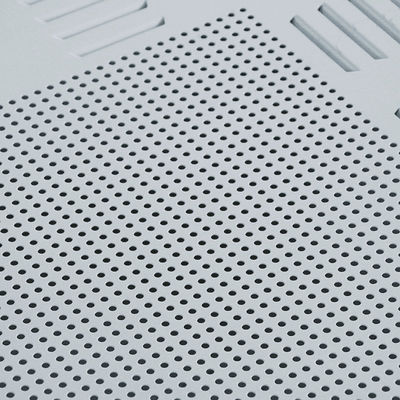

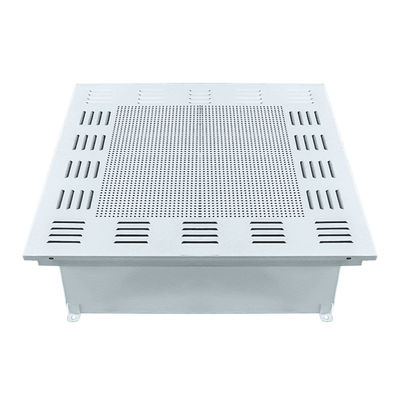

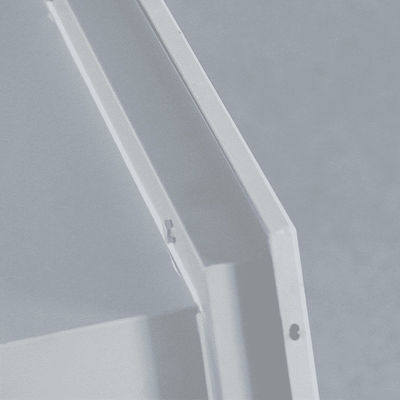

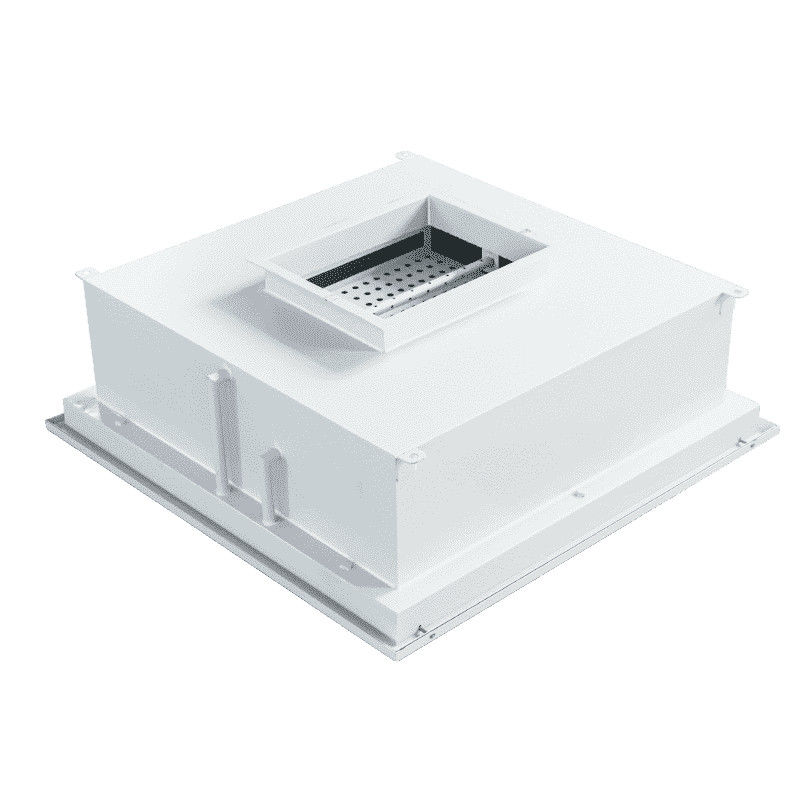

Product Gallery
Frequently Asked Questions
Can the 1025×720×480 vent maintain laminar flow in hangars over 50m²?
Yes, vortex-diffusing louvers ensure ±2% airflow uniformity across 60m² spaces (tested per ISO 14644-4).
How does the 965×660×930 filter handle titanium oxide dust in aerospace coatings?
Gradient-density media captures particles at 3000 CMH, certified per IEST RP-CC034 Class 100.
Is the structure compatible with seismic zones for semiconductor mega-fabs?
Vibration-damping mounts meet IEEE 693 standards, absorbing 90% of seismic energy up to 0.5g PGA.
