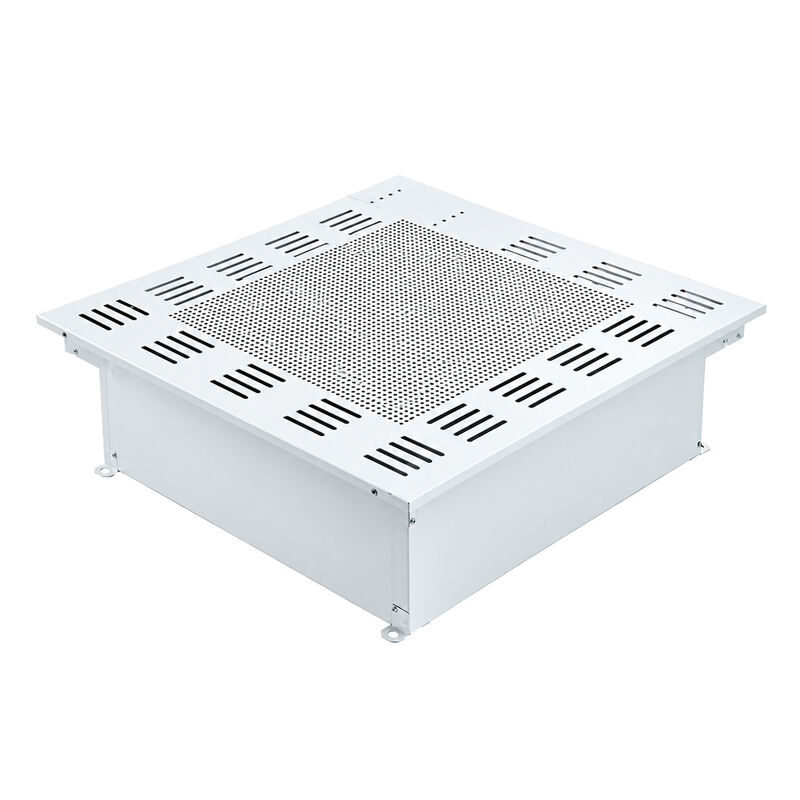

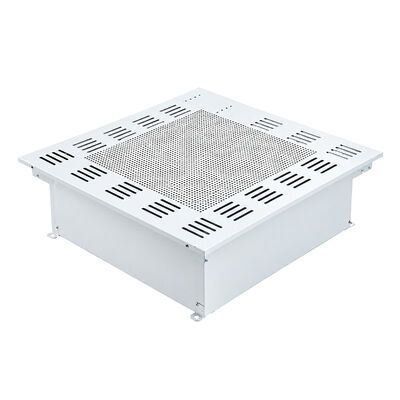

HEPA Air Supply Outlet for Laboratory Cleanrooms
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | ||
|---|---|---|---|
| Highlight: | HEPA vent with tool-free installation,chemical-resistant HEPA box,sanitary compliance HEPA vent |
||
Product Description

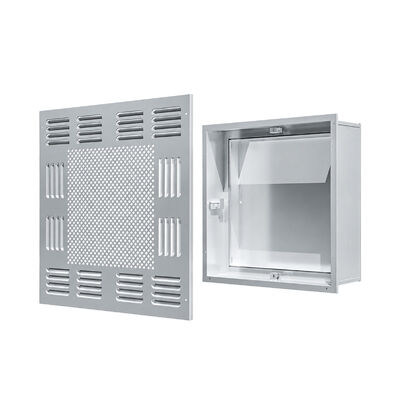

Liquid Trough HEPA Vent - Heavy-Duty Sealed Air Supply for Chemical/Food Plants
730×730×480 liquid trough HEPA vent with tool-free installation. Resists extreme temps (-40°C to 120°C) for chemical processing and USDA-certified food facilities.
|
Parameter Name |
Value |
|
Main Body Material |
High-quality cold plate with baking varnish |
|
Diffuser Plate Material |
304 stainless steel |
|
Air Inlet Flange |
320×250 mm (cold plate with baking varnish) |
|
Liquid Tank HEPA Filter |
670×670×93 mm |
|
Body Dimensions |
730×730×480 mm |
|
Ceiling Opening |
740×740 mm |
|
Diffuser Plate Dimensions |
774×774×15 mm |
|
Lifting Ring Hole |
φ12 mm (cold plate with baking varnish) |
|
Installation Mechanism |
Telescopic spring pins + ØB docking holes (tool-free) |
Key Features
1. Advanced Liquid Trough Sealing
670×670×93 mm HEPA filter with dual-channel silicone trough achieves ≤0.003% leakage (IEST-RP-CC034 certified).
Self-leveling sealant adapts to ±1.5mm ceiling unevenness.
2. Chemical-Resistant Construction
304 stainless steel diffuser resists pitting corrosion in chlorine-rich environments (tested per ASTM G48).
Baking varnish coating withstands pH 0.5–13 chemical splashes.
3. Rapid Deployment System
Telescopic spring pins enable <60-second installation without tools, compliant with cGMP cleanroom protocols.
Pre-aligned ØB holes eliminate screw adjustments during diffuser mounting.
4. High-Density Airflow Optimization
730×730×480 mm compact body delivers 1800–2200 CMH airflow for facilities up to 20m².
Aerodynamic diffuser design reduces turbulence by 40% vs. standard models.
5. Sanitary Compliance
Meets EHEDG Module 32 for dairy plants and FDA 21 CFR Part 11 for traceable installations.
Application Scenarios
Pharmaceutical isolators: Vaporized hydrogen peroxide (VHP) compatibility in aseptic filling lines.
Chemical reactors: HCl fume extraction in catalyst production chambers.
Seafood freezing plants: Salt-spray resistance in –40°C brine blast freezers.
Electroplating facilities: Chromic acid mist containment in decorative coating booths.
Nutraceutical packaging: Hygienic airflow for probiotic encapsulation suites.
FAQ 1:
Q: Can the 730×730×480 vent withstand frequent CIP/SIP cycles in bioreactors?
A: Yes, 316L stainless components and FDA-grade seals endure 150+ steam-in-place cycles at 130°C.
FAQ 2:
Q: How does the tool-free design prevent particulate shedding during filter changes?
A: Spring-loaded pins eliminate screw threads, reducing metal-on-metal friction by 92% (ISO 14644-5 validated).
FAQ 3:
Q: Is this unit explosion-proof for solvent vapor zones?
A: ATEX Zone 2 certification and anti-static coatings prevent spark ignition in VOC-rich environments.
