Explosion-Proof Laminar Flow Transfer Window | 99.999% Purification | GMP Pharma & Chemical Safe Pass-Through
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,EU GMP,FDA |
| Model Number: | Explosion-proof laminar flow transfer window |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Wooden frame |
| Delivery Time: | 7-15 days |
|
Detail Information |
|||
| External Dimensions: | W800 × D690 × H1600 (mm) | Air Shower Area: | W600 × D600 × H600 (mm) |
|---|---|---|---|
| Custom Made: | Support | Official Website: | Www.ffu-cleanroom.com |
| Certification: | ISO,CE,UL,RoHS | ||
Product Description

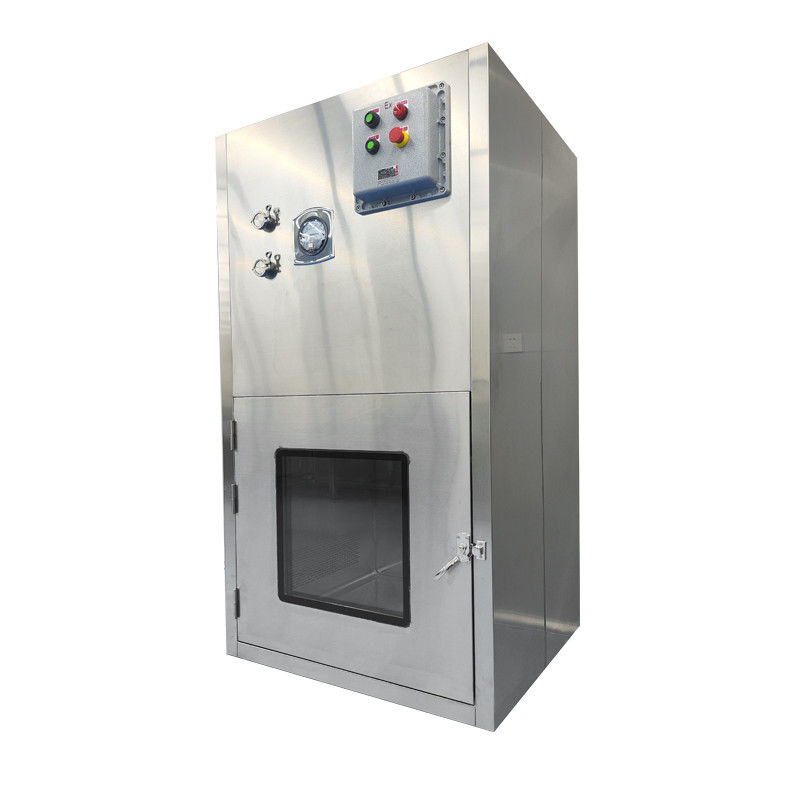

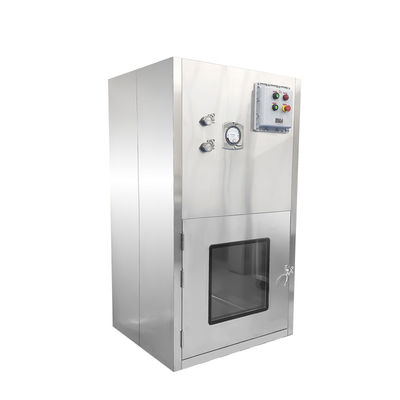

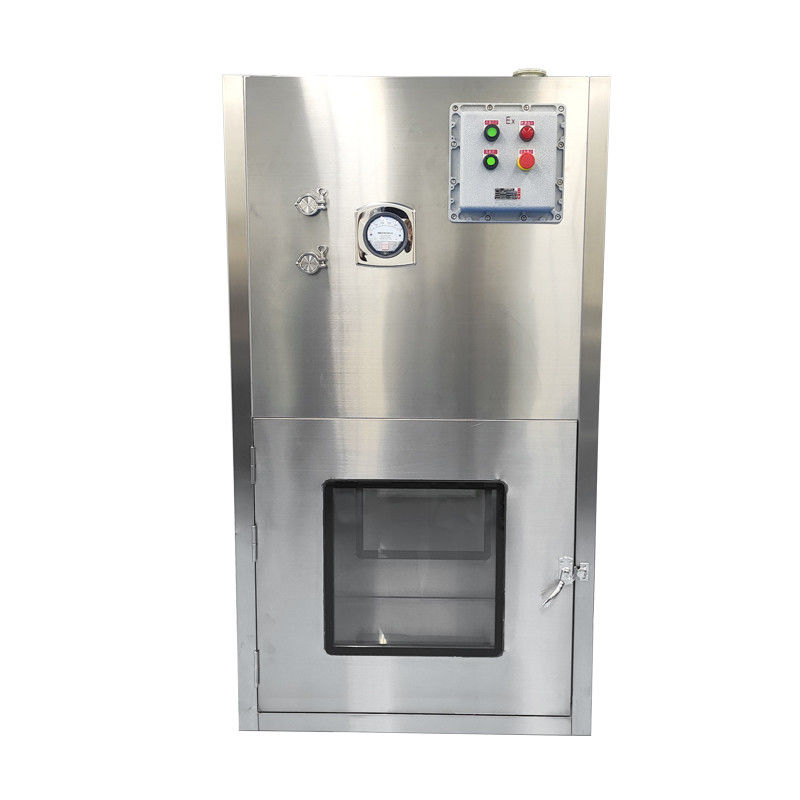

Explosion-Proof Laminar Flow Transfer Window | 99.999% Purification | GMP Pharma & Chemical Safe Pass-Through
The Explosion-Proof Laminar Flow Transfer Window is a safety-critical contamination control system designed for secure material transfer in explosive atmospheres and high-cleanliness environments. Engineered for chemical, pharmaceutical, food, electronics, precision machinery, and aerospace industries, it combines ATEX-compliant explosion-proof construction with ISO Class 5 laminar airflow purification. Featuring a full 304 stainless steel body, integrated DOP testing port, and dual interlocking systems, it ensures safe, sterile transfers in GMP, VHP, and dust-free cleanrooms while mitigating ignition risks in volatile zones.
|
Parameter Name |
parameter |
|
Material |
304 stainless steel (full body) |
|
Window Design |
Explosion-proof lamp + laminar flow system + DOP detection port |
|
Interlock System |
Mechanical/electronic interlocking |
|
Lighting |
Explosion-proof lamp |
|
Door Handle |
Stainless steel clamping handle |
|
Overall dimensions |
W800 × D690 × H1600 (mm) |
|
Power Supply |
220V/50Hz |
|
Rated Power |
380W |
|
Purification Efficiency |
99.999% (particle retention) |
|
Wind Speed |
0.3–0.75 m/s |
|
Noise Level |
55–65 ±5 dB |
|
Explosion-Proof Structure |
Explosion-proof electric box, pipe, lamp; internal wiring with explosion-proof treatment |
Key Features
ATEX-Compliant Explosion Protection:
Equipped with explosion-proof electrical components (box, pipe, lamp) and spark-resistant internal wiring, certified for use in Zone 1/21 hazardous areas.
ISO Class 5 Laminar Airflow:
Unidirectional airflow at 0.35–0.75 m/s achieves 99.999% particle retention efficiency, validated by DOP testing via the front-access port.
Industrial-Grade Durability:
Full 304 stainless steel construction resists corrosion, chemicals, and mechanical stress, ensuring longevity in harsh environments like chemical plants or pharma labs.
Noise-Optimized Operation:
Maintains noise levels between 55–65 dB (±5 dB) for minimal disruption in sound-sensitive cleanrooms or laboratories.
Dual Safety Interlocks:
Mechanical/electronic interlocking prevents simultaneous door opening, eliminating cross-contamination and ensuring operator safety during volatile material transfers.
GMP/VHP Compliance:
Seamlessly integrates with EU GMP Annex 1 and VHP decontamination protocols for sterile transfers in pharmaceutical and biotech facilities.
Application Scenarios
Chemical plants: Safe transfer of flammable solvents or reactive compounds between hazardous and controlled zones.
Pharmaceutical cleanrooms: GMP-compliant movement of APIs (Active Pharmaceutical Ingredients) or sterile packaging.
Food production: Hygienic pass-through of raw ingredients in ISO 22000-certified facilities.
Aerospace manufacturing: Contamination-free handling of precision components in dust-free environments.
Electronics assembly: Protection of microchips and sensitive devices from particulate contamination.
